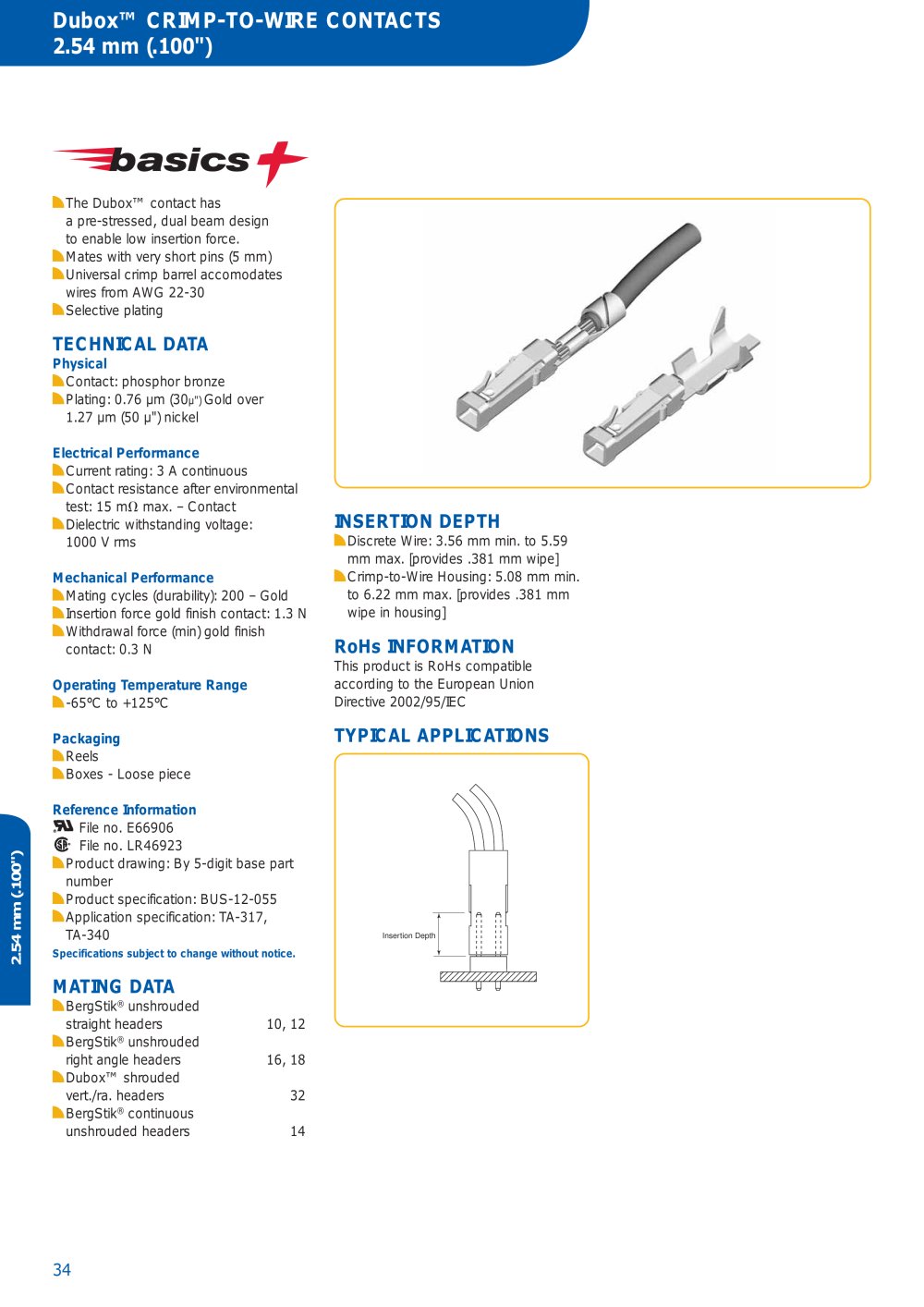

Dubox™ CRIMP-TO-WIRE CONTACTS2.54mm(.100")

The Dubox™ contact has a pre-stressed, dual beam design to enable low insertion force.Mates with very short pins (5 mm)Universal crimp barrel accomodates wires from AWG 22-30 Selective plating

TECHNICAL DATA

Physical Contact: phosphor bronze Plating: 0.76 µm (30
µ") Gold over 1.27 µm (50 µ") nickel Electrical Performance Current rating: 3 A continuousContact resistance after environmental test: 15 m max. – ContactDielectric withstanding voltage: 1000 V rms Mechanical Performance Mating cycles (durability): 200 – Gold Insertion force gold finish contact: 1.3 NWithdrawal force (min) gold finishcontact: 0.3 N

INSERTION DEPTH

Discrete Wire: 3.56 mm min. to 5.59 mm max. [provides .381 mm wipe] Crimp-to-Wire Housing: 5.08 mm min. to 6.22 mm max. [provides .381 mm wipe in housing] Operating Temperature Range -65°C to +125°C Packaging Industrial reels Boxes - Loose piece

RoHsINFORMATION

Reference Information This product is RoHs compatible according to the European Union Directive 2002/95/IEC File no. E66906File no. LR46923Product drawing: By 5-digit base part number Product specification: BUS-12-055 Application specification: TA-317, TA-340

TYPICAL APPLICATIONS

Insertion Depth Specifications subject to change without notice. 2.54 mm(.100")

MATING DATA

BergStik
® unshrouded straight headers10, 12 BergStik
® unshrouded right angle headers16, 18 Dubox™ shrouded vert./ra. headers32BergStik
® continuousunshrouded headers14

34
