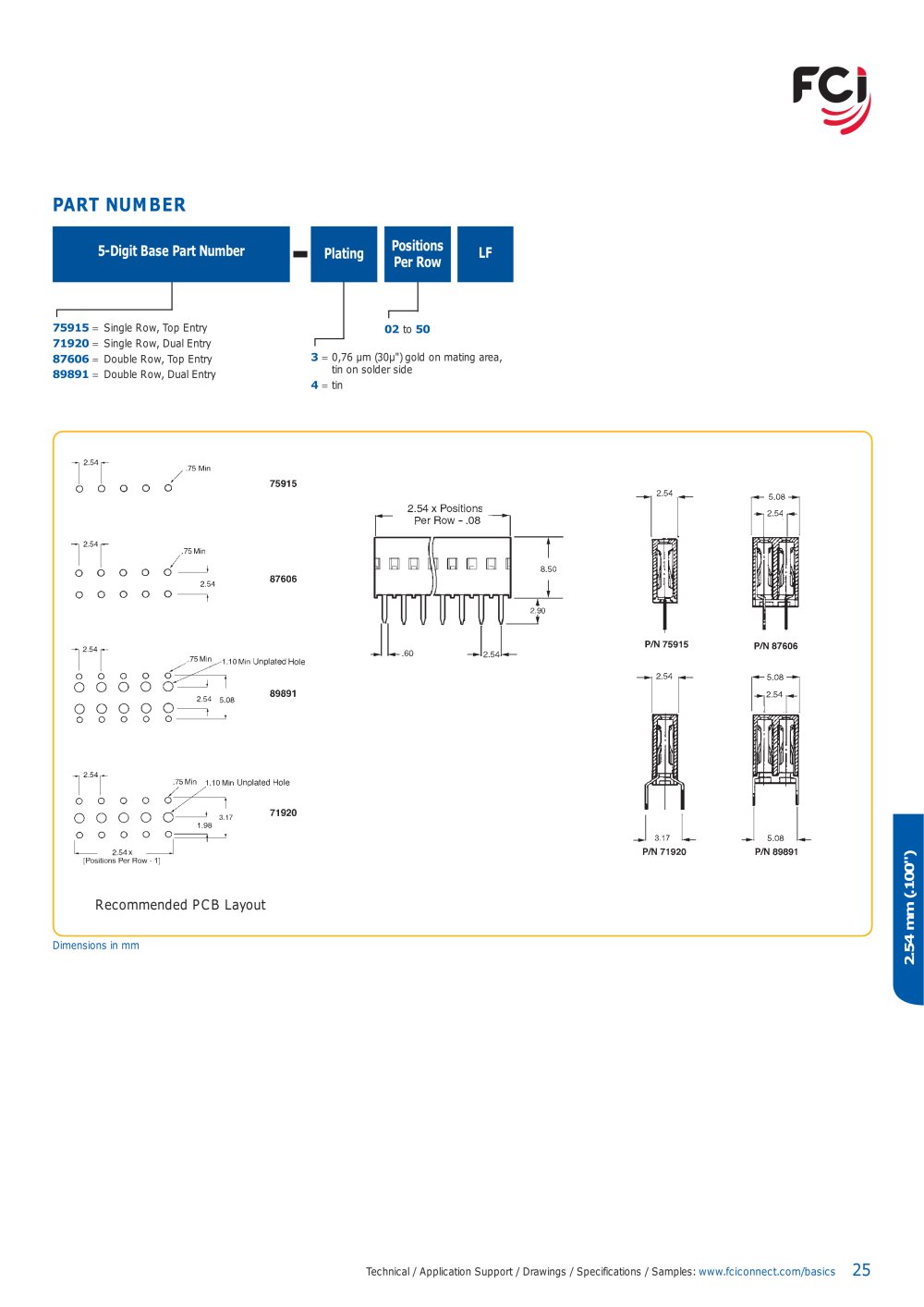

PART NUMBER

5-Digit Base Part Number Plating PositionsPer Row LF

75915 = Single Row, Top Entry 02 to 50 71920 = Single Row, Dual Entry 87606 = Double Row, Top Entry 3 = 0,76 µm (30µ") gold on mating area,tin on solder side 89891 = Double Row, Dual Entry 4 = tin

Recommended PCB Layout

Dimensions in mm
2.54 mm(.100") Technical / Application Support / Drawings / Specifications / Samples: www.fciconnect.com/basics
