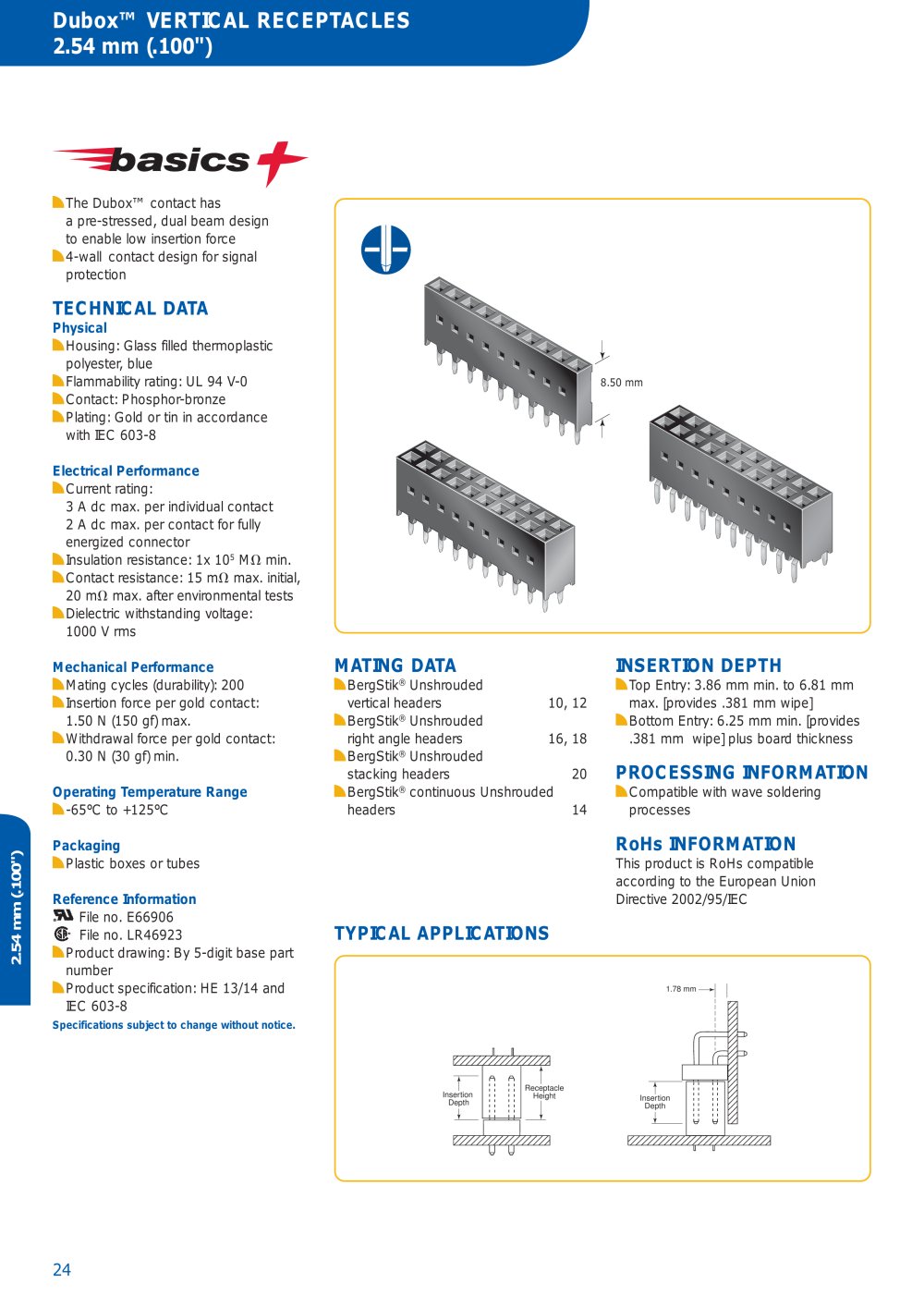

Dubox™VERTICAL RECEPTACLES2.54mm(.100")

The Dubox™ contact has a pre-stressed, dual beam design to enable low insertion force4-wallcontact design for signal protection

TECHNICAL DATA

Physical Housing: Glass filled thermoplastic polyester, blueFlammability rating: UL 94 V-0 Contact: Phosphor-bronzePlating: Gold or tin in accordance with IEC 603-8 Electrical Performance Current rating: 3 A dc max. per individual contact 2 A dc max. per contact for fully energized connectorInsulation resistance: 1x 10
8.50 mm 5 M min.Contact resistance: 15 m max. initial,20 m max. after environmental testsDielectric withstanding voltage: 1000 V rms Operating Temperature Range Mechanical Performance -65°C to +125°C

MATING DATA INSERTION DEPTH

Mating cycles (durability): 200 Insertion force per gold contact: 1.50 N (150 gf) max. Withdrawal force per gold contact: 0.30 N (30 gf) min. BergStik
® Unshrouded vertical headers10, 12BergStik Top Entry: 3.86 mm min. to 6.81 mm max. [provides .381 mm wipe] Bottom Entry: 6.25 mm min. [provides.381 mm wipe] plus board thickness Packaging Plastic boxes or tubes
® Unshrouded right angle headers16, 18BergStik Reference Information
® Unshrouded stacking headers20BergStik File no. E66906File no. LR46923Product drawing: By 5-digit base partnumber Product specification: HE 13/14 and IEC 603-8
®

PROCESSING INFORMATION

continuous Unshrouded headers14 Compatible with wave soldering processes

RoHsINFORMATION

This product is RoHs compatible according to the European UnionDirective 2002/95/IEC

TYPICAL APPLICATIONS

2.54 mm(.100") 1.78 mm Specifications subject to change without notice. ReceptacleHeight Insertion Depth InsertionDepth
