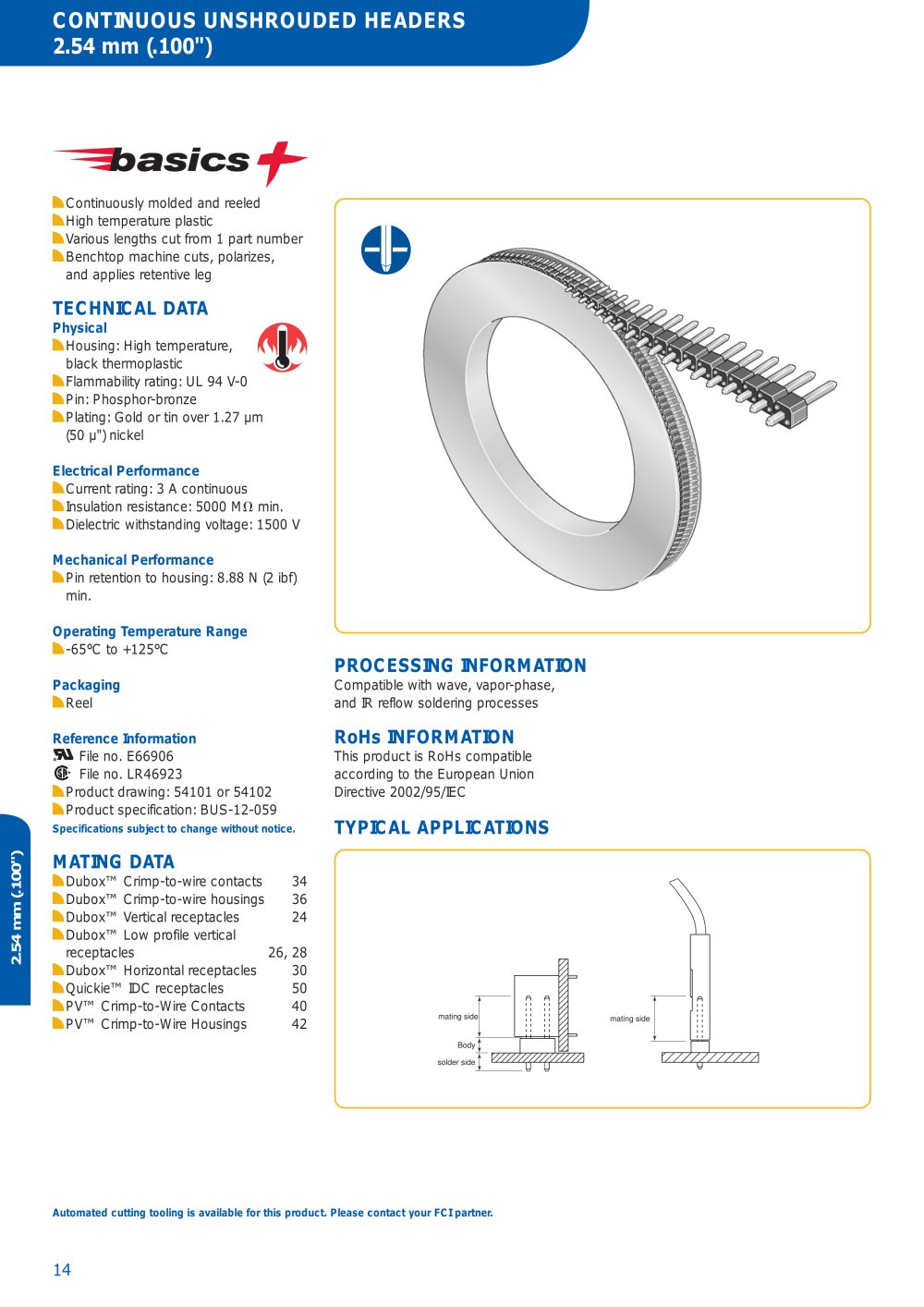

CONTINUOUS UNSHROUDED HEADERS 2.54 mm(.100")

Continuously molded and reeledHigh temperature plastic Various lengths cut from 1 part numberBenchtop machine cuts, polarizes, and applies retentive leg

TECHNICAL DATA

Physical Housing: High temperature, black thermoplasticFlammability rating: UL 94 V-0 Pin: Phosphor-bronzePlating: Gold or tin over 1.27 µm (50 µ") nickel Electrical Performance min.Dielectric withstanding voltage: 1500 V Current rating: 3 A continuous Insulation resistance: 5000 M Mechanical Performance Pin retention to housing: 8.88 N (2 ibf) min. Operating Temperature Range -65°C to +125°C Packaging Reel Reference Information File no. E66906File no. LR46923Product drawing: 54101 or 54102Product specification: BUS-12-059

PROCESSING INFORMATION

Compatible with wave, vapor-phase, and IR reflow soldering processes

RoHsINFORMATION

This product is RoHs compatible according to the European UnionDirective 2002/95/IEC
Specifications subject to change without notice.

TYPICAL APPLICATIONS MATING DATA

Dubox™ Crimp-to-wire contacts34Dubox™ Crimp-to-wire housings36 Dubox™ Vertical receptacles24Dubox™ Low profile vertical receptacles26, 28 Dubox™ Horizontal receptacles30 Quickie™ IDC receptacles50 PV™ Crimp-to-Wire Contacts40PV™ Crimp-to-Wire Housings42
2.54 mm(.100") mating sidemating side Bodysolder side Automated cutting tooling is available for this product. Please contact your FCI partner.
