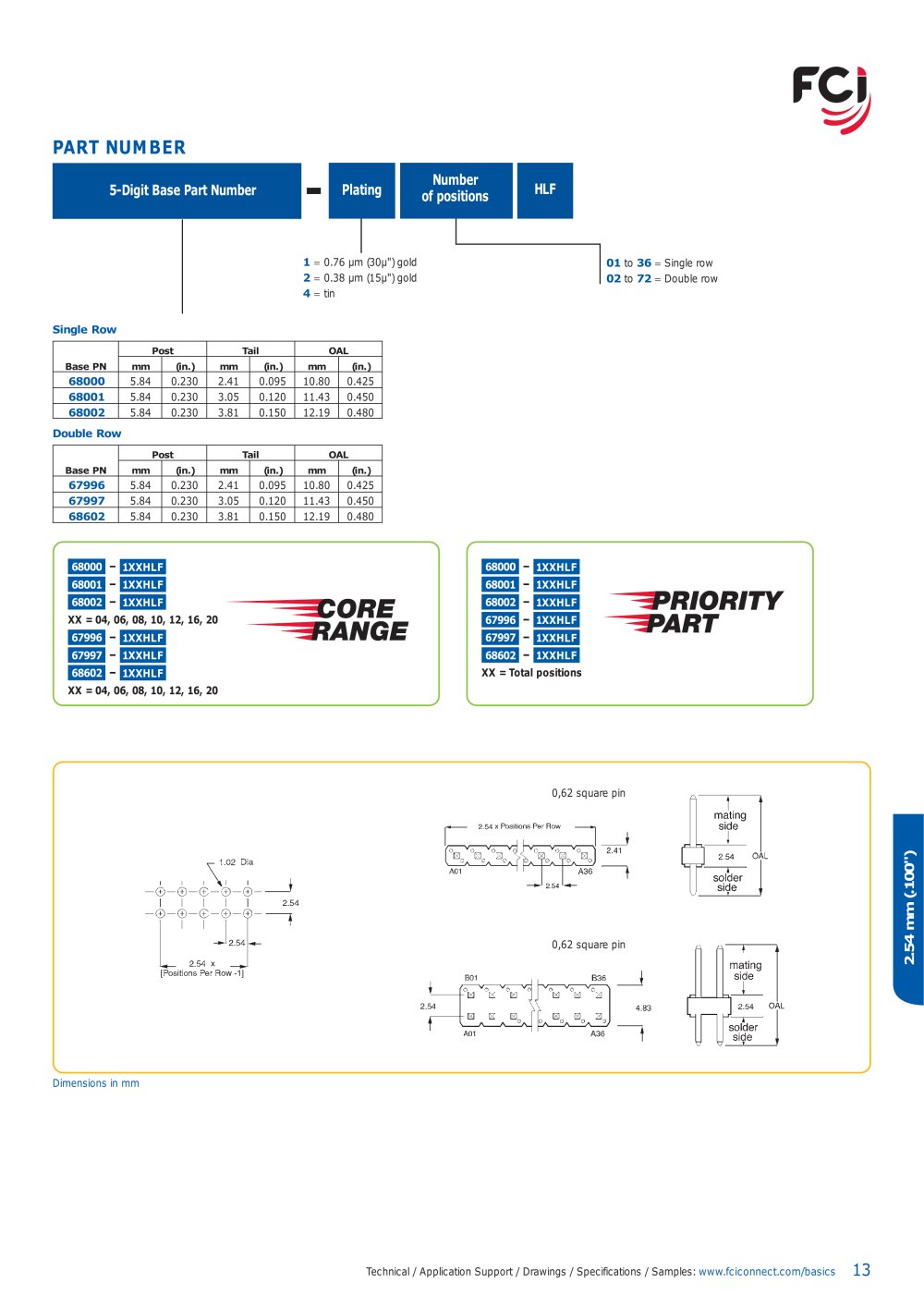

PART NUMBER
5-Digit Base Part Number Plating Numberof positions HLF
1 = 0.76 µm (30µ") gold 01 to 36 = Single row 2 = 0.38 µm (15µ") gold 02 to 72 = Double row 4 = tin Single Row
PostTailOAL Base PNmm(in.)mm(in.)mm(in.) 68000 5.840.2302.410.09510.800.425 68001 5.840.2303.050.12011.430.450 68002 5.840.2303.810.15012.190.480 Double Row
PostTailOAL Base PNmm(in.)mm(in.)mm(in.) 67996 5.840.2302.410.09510.800.425 67997 5.840.2303.050.12011.430.450 68602 5.840.2303.810.15012.190.480 68000 1XXHLF 68000 1XXHLF 68001 1XXHLF 68001 1XXHLF 68002 1XXHLF 68002 1XXHLF 67996 1XXHLF 67996 1XXHLF 67997 1XXHLF 67997 1XXHLF 68602 1XXHLF 68602 1XXHLF XX = Total positions XX = 04, 06, 08, 10, 12, 16, 20XX = 04, 06, 08, 10, 12, 16, 20 0,62 square pin 0,62 square pin
Dimensions in mm
2.54 mm(.100") Technical / Application Support / Drawings / Specifications / Samples: www.fciconnect.com/basics
