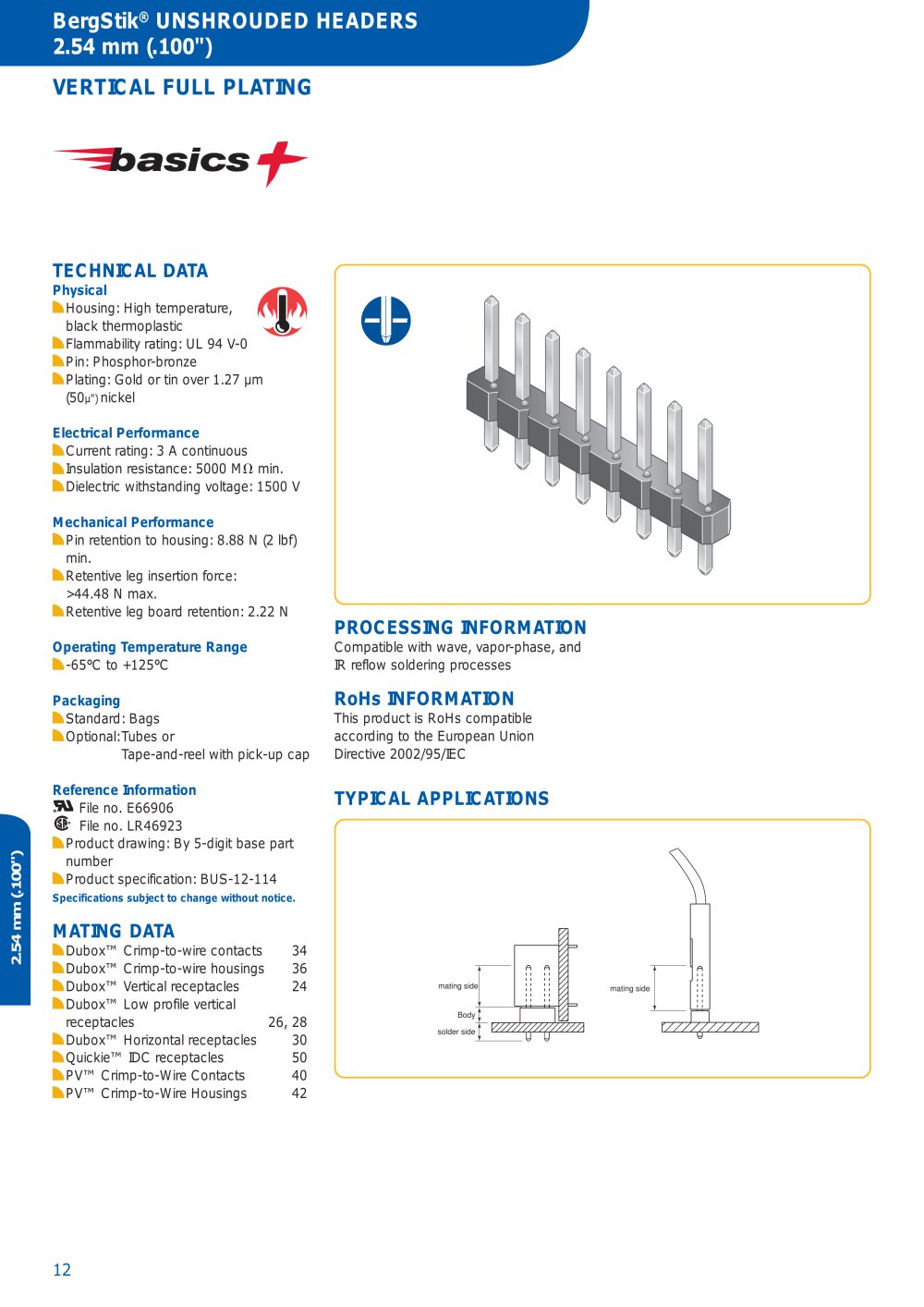

BergStik

®

UNSHROUDED HEADERS2.54 mm(.100") VERTICAL FULL PLATING

TECHNICAL DATA

Physical Housing: High temperature, black thermoplastic Flammability rating: UL 94 V-0 Pin: Phosphor-bronze Plating: Gold or tin over 1.27 µm (50
µ") nickel Electrical Performance min.Dielectric withstanding voltage: 1500 V Current rating: 3 A continuous Insulation resistance: 5000 M Mechanical Performance Pin retention to housing: 8.88 N (2 lbf) min. Retentive leg insertion force: >44.48 N max.Retentive leg board retention: 2.22 N Operating Temperature Range -65°C to +125°C Packaging Standard: Bags Optional:Tubes orTape-and-reel with pick-up cap

PROCESSING INFORMATION

Reference Information Compatible with wave, vapor-phase, and IR reflow soldering processes File no. E66906File no. LR46923Product drawing: By 5-digit base part number Product specification: BUS-12-114

RoHsINFORMATION

This product is RoHs compatible according to the European Union Directive 2002/95/IEC

TYPICAL APPLICATIONS

Specifications subject to change without notice.

MATING DATA

2.54 mm(.100") Dubox™ Crimp-to-wire contacts34Dubox™ Crimp-to-wire housings36Dubox™ Vertical receptacles24 Dubox™ Low profile vertical receptacles26, 28 Dubox™ Horizontal receptacles30 Quickie™ IDC receptacles50PV™ Crimp-to-Wire Contacts40PV™ Crimp-to-Wire Housings42
mating sidemating side Bodysolder side

12
