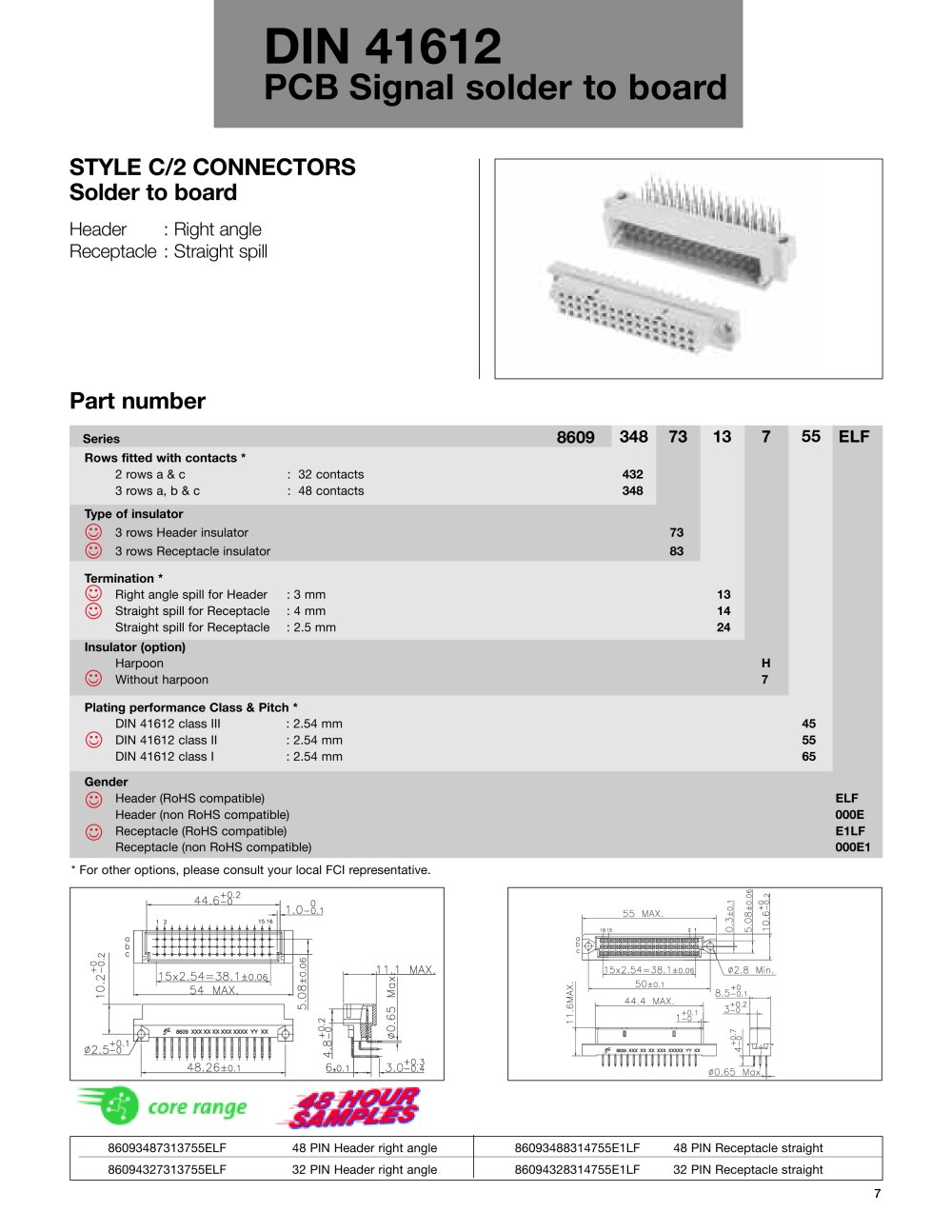

DIN 41612

PCB Signal solder to board

STYLE C/2 INDUSTRIAL CONNECTORS Solder to board

Header : Right angle Receptacle : Straight spill

Part number


Series	8609 348	73	13	7	55
Rows fitted with contacts * 2 rows a & c 3 rows a, b & c	32 contacts 432 48 contacts 348
Type of insulator © 3 rows Header insulator 3 rows Receptacle insulator		73 83
Termination * © Right angle spill for Header Straight spill for Receptacle Straight spill for Receptacle	3 mm 4 mm 2.5 mm		13 14 24
Insulator (option) Harpoon Without harpoon				H ⁷
Plating performance Class & Pitch DIN 41612 class III © DIN 41612 class II DIN 41612 class I :	* 2.54 mm 2.54 mm 2.54 mm				45 55 65

Gender

Receptacle (non RoHS compatible)

For other options, please consult your local FCI representative.

ELF 000E E1LF 000E1

1.0-0.1

MAX.

S XXX XX XX XXX XXXXX YY XX
