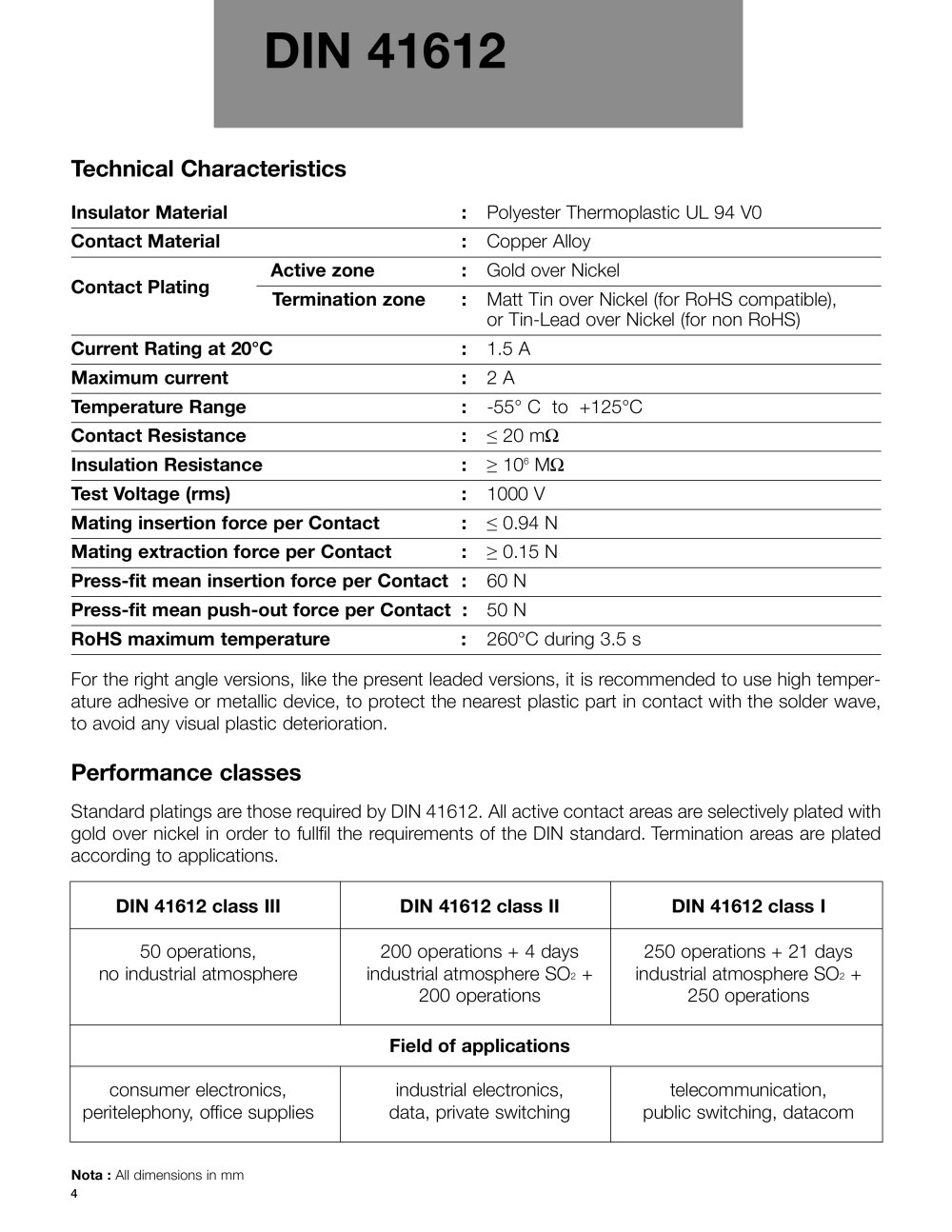

DIN 41612

Technical Characteristics

Insulator Material : Polyester Thermoplastic UL 94 V0


	Contact Material	: Copper Alloy
	Active zone	: Gold over Nickel
	contact Plating _ Termination zone	: Matt Tin over Nickel (for RoHS compatible), or Tin-Lead over Nickel (for non RoHS)
	Current Rating at 20°C	: 1.5 A

Maximum current : 2A

Temperature Range : -55° C to +125°C

Contact Resistance : < 20 mQ

Insulation Resistance : >10⁶MQ

Test Voltage (rms) : 1000 V

Mating insertion force per Contact : < 0.94 N

Mating extraction force per Contact : > 0.15 N

Press-fit mean insertion force per Contact : 60 N

Press-fit mean push-out force per Contact : 50 N

RoHS maximum temperature : 260°C during 3.5 s

For the right angle versions, like the present leaded versions, it is recommended to use high temperature adhesive or metallic device, to protect the nearest plastic part in contact with the solder wave, to avoid any visual plastic deterioration.

Performance classes

Standard platings are those required by DIN 41612. All active contact areas are selectively plated with gold over nickel in order to fullfil the requirements of the DIN standard. Termination areas are plated according to applications.


DIN 41612 class III	DIN 41612 class II	DIN 41612 class I
50 operations, no industrial atmosphere	200 operations + 4 days industrial atmosphere SO2 + 200 operations	250 operations + 21 days industrial atmosphere SO2 + 250 operations
Field of applications
consumer electronics, peritelephony, office supplies	industrial electronics, data, private switching	telecommunication, public switching, datacom

Nota : All dimensions in mm 4
