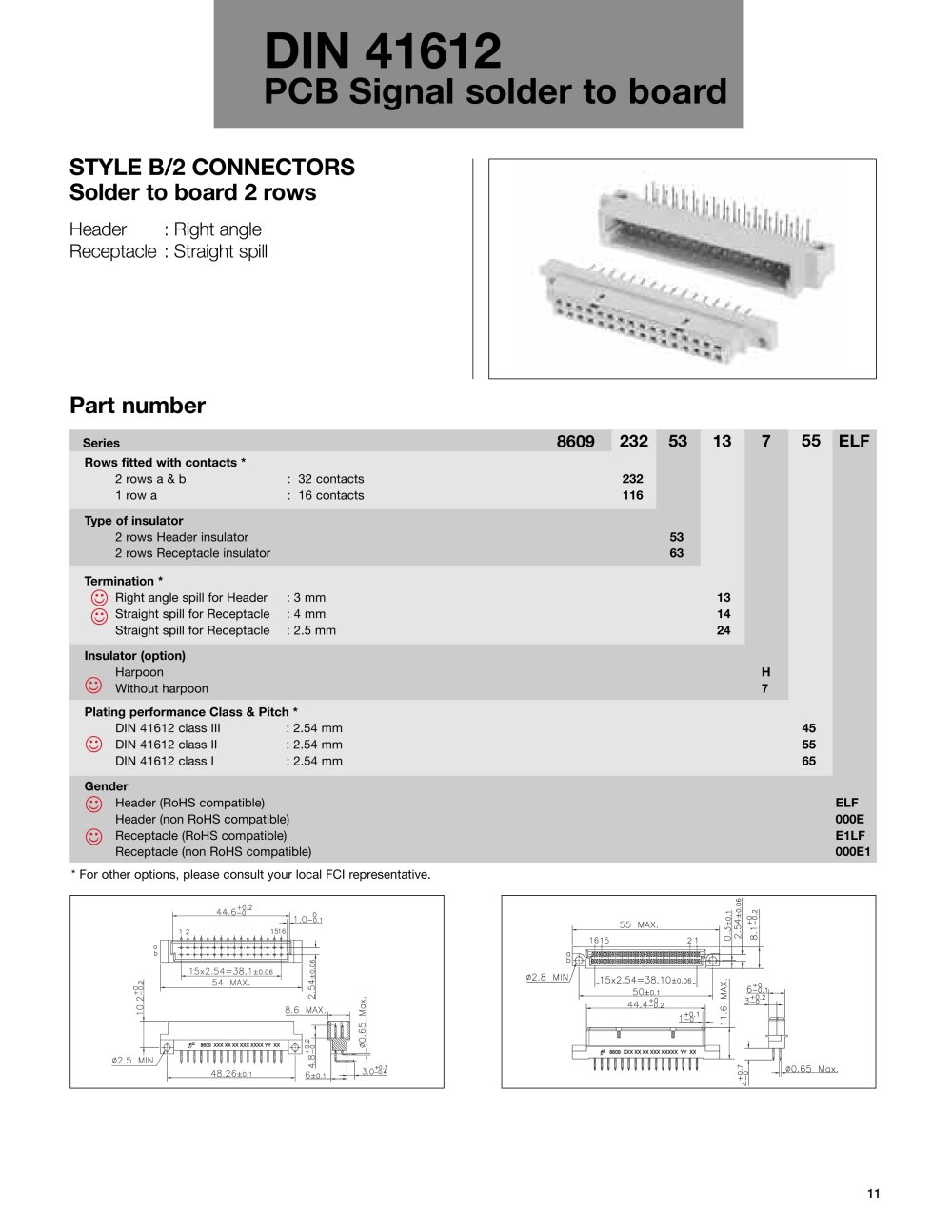

DIN 41612 PCBSignal solder to board

STYLE B/2 CONNECTORSSolder to board 2 rows

Header: Right angleReceptacle: Straight spill

Part number

Series

8609 232 53 13 7 55 ELF

2rows a & b: 32 contacts 232 1row a: 16 contacts 116Type of insulator 2rows Header insulator 53 2rows Receptacle insulator 63Insulator (option) Termination * Right angle spill for Header : 3 mm 13 Straight spill for Receptacle: 4 mm 14 Straight spill for Receptacle: 2.5 mm 24 Rows fitted with contacts * Harpoon H

☺☺☺☺☺☺

Without harpoon 7 Plating performance Class & Pitch * DIN 41612 class III:2.54 mm 45 DIN 41612 class II:2.54 mm 55 DIN 41612 class I: 2.54 mm 65Gender Header (RoHS compatible) ELF Header (non RoHS compatible) 000E Receptacle (RoHS compatible) E1LF Receptacle (non RoHS compatible) 000E1 *For other options, please consult your local FCI representative. 11
