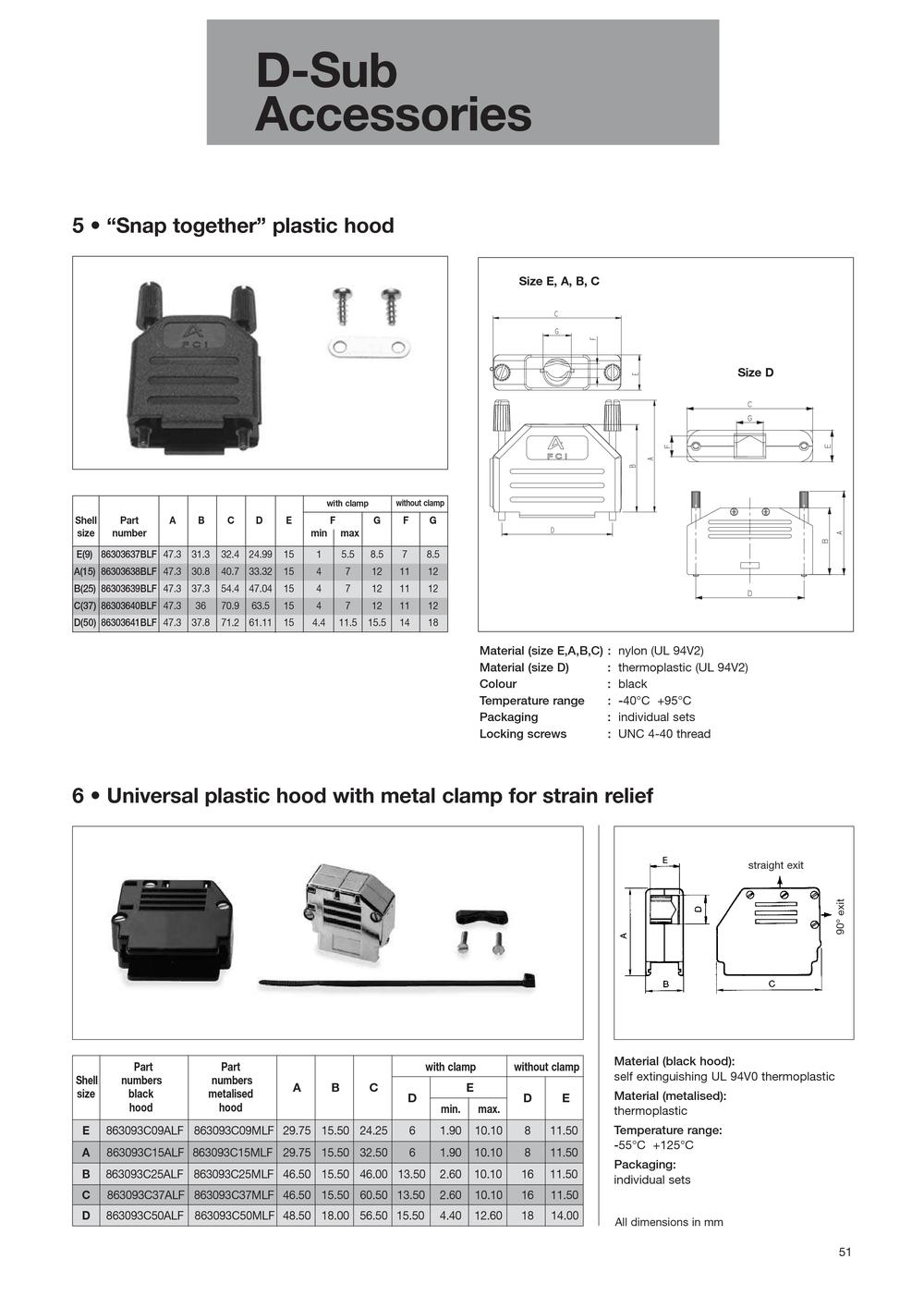

D-Sub
Accessories
5 • "Snap together" plastic hood
with clamp
without clamp
Shell size
Part number
A
B
C
D
E
F
min
max
G
F
G
E(9)
86303637BLF
47.3
31.3
32.4
24.99
15
1
5.5
8.5
7
8.5
A(15)
86303638BLF
47.3
30.8
40.7
33.32
15
4
7
12
11
12
B(25)
86303639BLF
47.3
37.3
54.4
47.04
15
4
7
12
11
12
C(37)
86303640BLF
47.3
36
70.9
63.5
15
4
7
12
11
12
D(50)
86303641BLF
47.3
37.8
71.2
61.11
15
4.4
11.5
15.5
14
18
Material (size E,A,B,C) : nylon (UL 94V2)
Material (size D) : thermoplastic (UL 94V2)
Colour : black
Temperature range : -40°C +95°C
Packaging : individual sets
Locking screws : UNC 4-40 thread
6 • Universal plastic hood with metal clamp for strain relief
Part
Part
with clamp
without clamp
Shell size
numbers black
numbers metalised
A
B
C
D
E
D
E
hood
hood
min.
max.
E
863093C09ALF
863093C09MLF
29.75
15.50
24.25
6
1.90
10.10
8
11.50
A
863093C15ALF
863093C15MLF
29.75
15.50
32.50
6
1.90
10.10
8
11.50
B
863093C25ALF
863093C25MLF
46.50
15.50
46.00
13.50
2.60
10.10
16
11.50
C
863093C37ALF
863093C37MLF
46.50
15.50
60.50
13.50
2.60
10.10
16
11.50
D
863093C50ALF
863093C50MLF
48.50
18.00
56.50
15.50
4.40
12.60
18
14.00
Material (black hood):
self extinguishing UL 94V0 thermoplastic
Material (metalised):
thermoplastic
Temperature range:
-55°C +125°C
Packaging:
individual sets
All dimensions in mm
