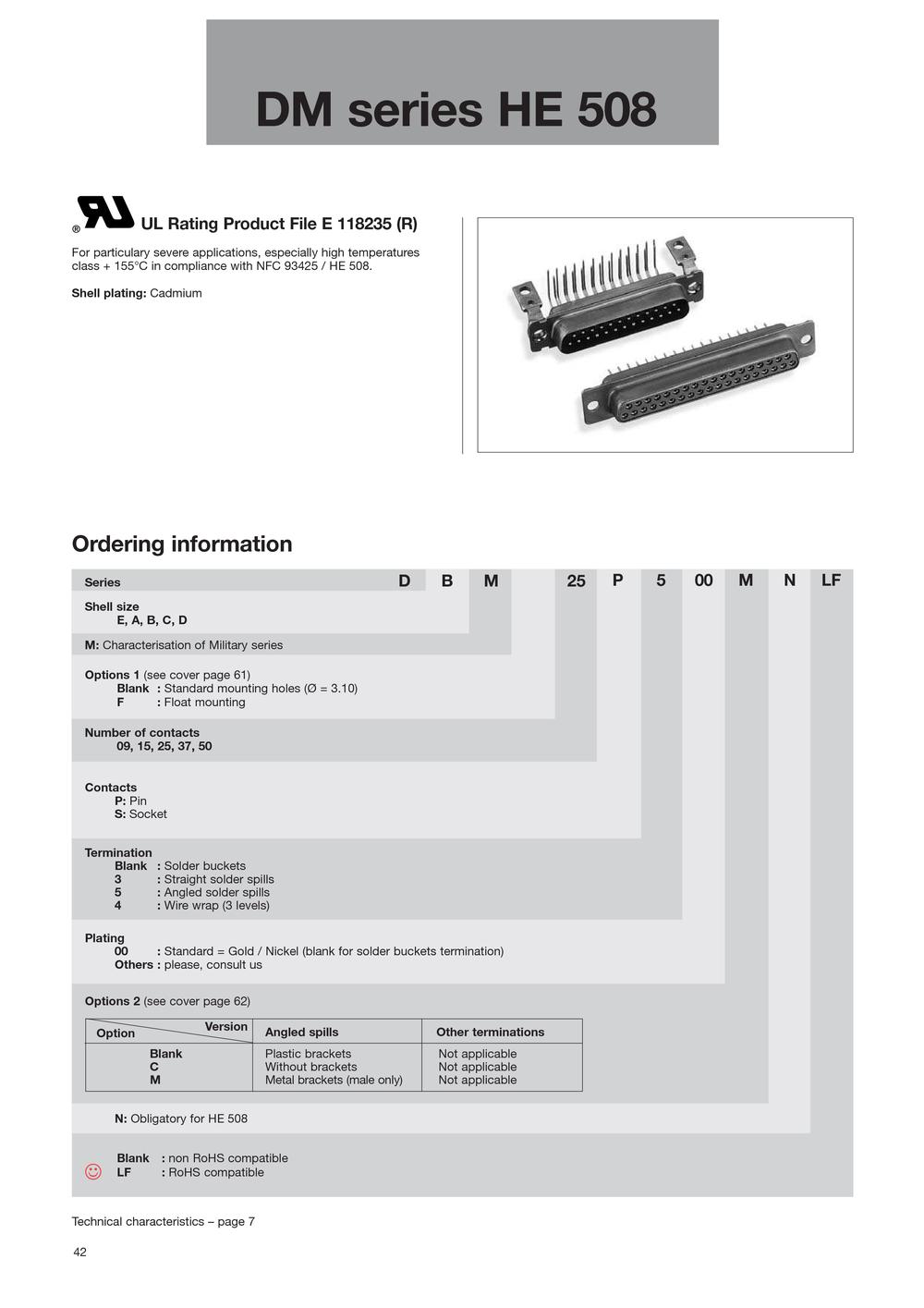

DM series HE508

UL Rating Product File E 118235 (R)

For particulary severe applications, especially high temperaturesclass + 155°C in compliance with NFC 93425 / HE 508. Shell plating: Cadmium

Ordering information

Series

D B M 25 P 5 00 M N LF

Shell sizeE, A, B, C, D M: Characterisation of Military series Options 1 (see cover page 61) Blank: Standard mounting holes (Ø = 3.10) F: Float mounting Number of contacts09, 15, 25, 37, 50 ContactsP: Pin S: Socket TerminationBlank: Solder buckets 3: Straight solder spills 5: Angled solder spills 4: Wire wrap (3 levels) Plating00: Standard = Gold / Nickel (blank for solder buckets termination) Others: please, consult us Options 2 (see cover page 62) OptionAngled spillsOther terminationsBlank Version Plastic bracketsNot applicable C Without bracketsNot applicable M Metal brackets (male only)Not applicable N: N: Obligatory for HE508 Obligatory for HE508 Blank: non RoHS compatible

☺

LF: RoHS compatible Technical characteristics – page 7 42
