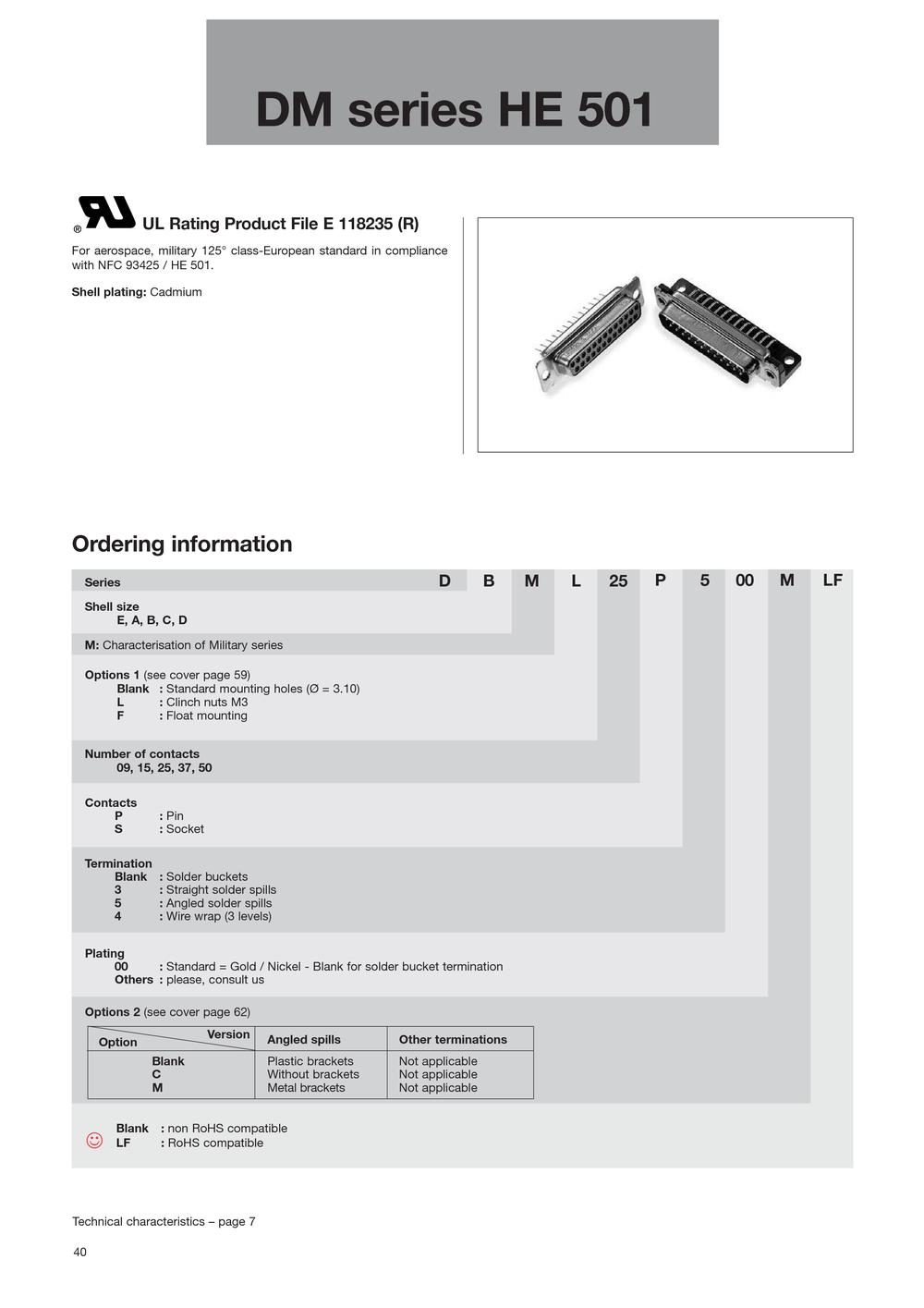

DM series HE501

UL Rating Product File E 118235 (R)

For aerospace, military 125°class-European standard in compliancewith NFC 93425 / HE 501. Shell plating: Cadmium

Ordering information

Series

D B M L 25 P 5 00 M LF

Shell sizeE, A, B, C, D M: Characterisation of Military series Options 1 (see cover page 59) Blank: Standard mounting holes (Ø = 3.10) L: Clinch nuts M3 F: Float mounting Number of contacts09, 15, 25, 37, 50 ContactsP: Pin S: Socket TerminationBlank: Solder buckets 3: Straight solder spills 5: Angled solder spills 4: Wire wrap (3 levels) Plating00: Standard = Gold / Nickel - Blank for solder bucket termination Others: please, consult us Options 2 Options 2 (see cover page 61) (see cover page 62) OptionAngled spillsOther terminationsBlank Version Plastic bracketsNot applicable C Without bracketsNot applicable M Metal bracketsNot applicable

☺

Blank: non RoHS compatible LF: RoHS compatible Technical characteristics – page 7 40
