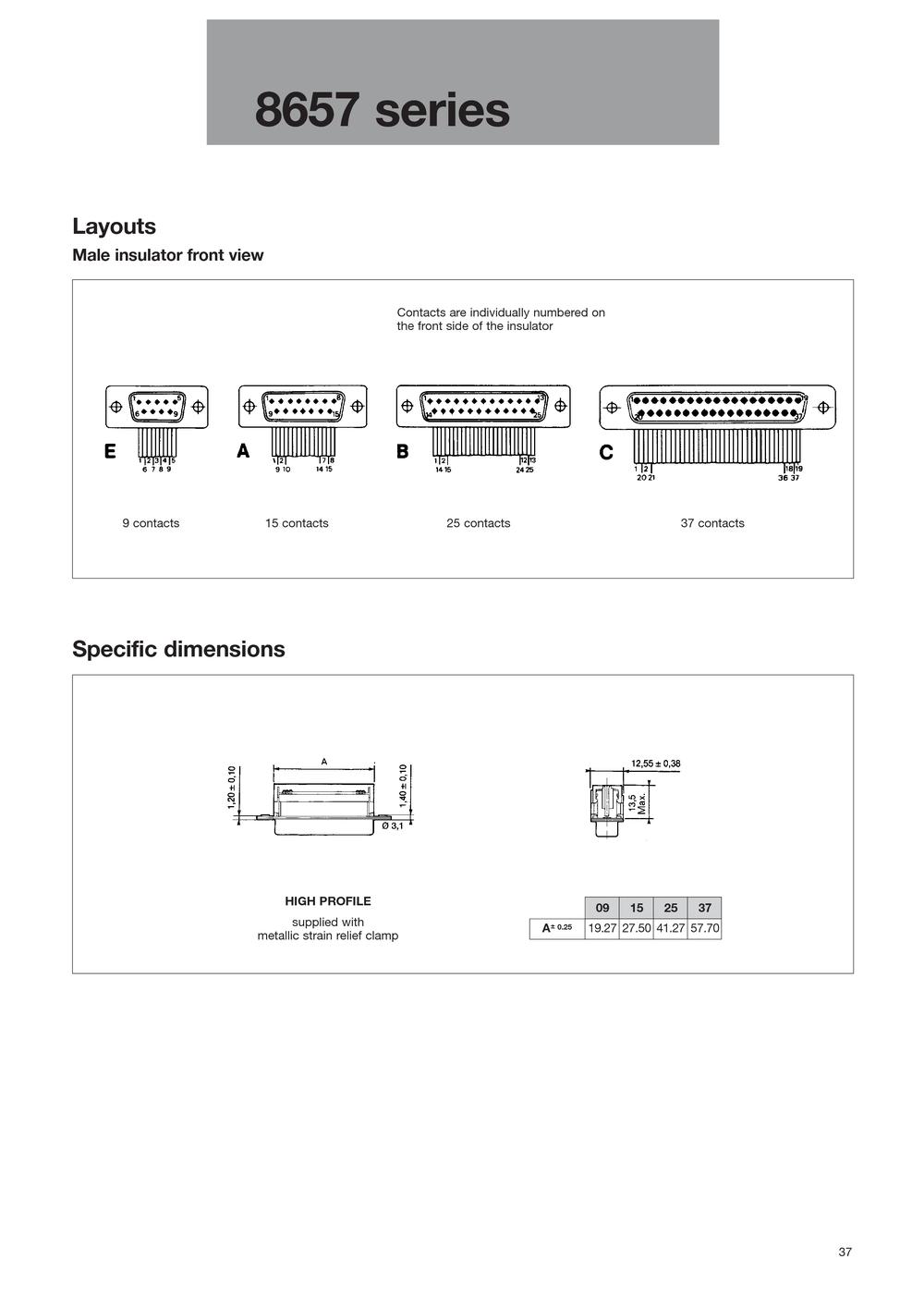

8657 series

Layouts

Male insulator front view

Specific dimensions

HIGH PROFILE 09152537A supplied with metallic strain relief clamp 9 contacts 15 contacts25 contacts37 contacts Contacts are individually numbered onthe front side of the insulator
±0.25 19.2727.5041.2757.70 37
