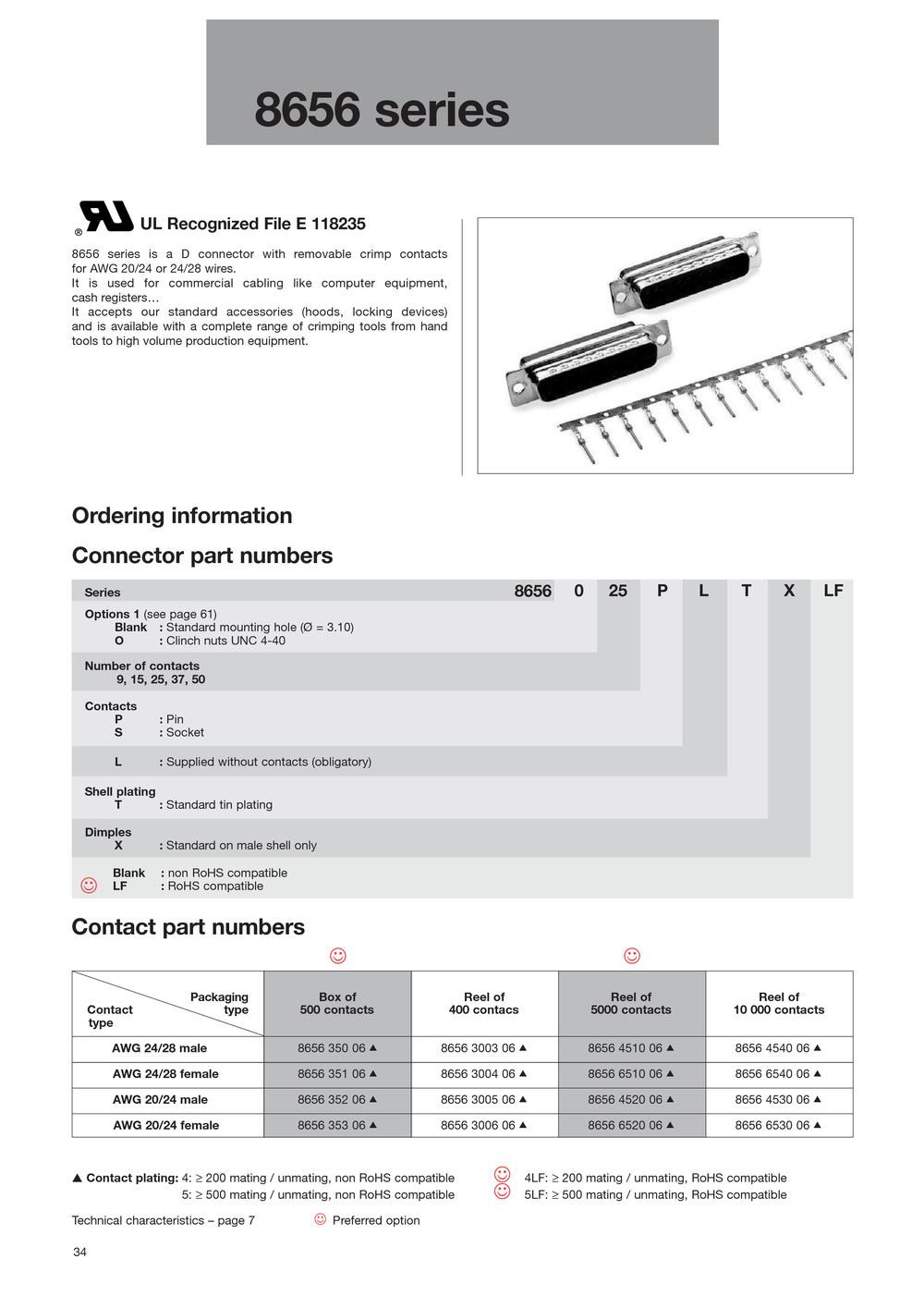

8656 series
UL Recognized File E 118235
8656 series is a D connector with removable crimp contacts for AWG20/24 or 24/28 wires.
It is used for commercial cabling like computer equipment, cash registers…
It accepts our standard accessories (hoods,
locking devices) and is available with a complete range of
crimping tools from hand
tools to high volume
production equipment.
Ordering informationConnector part numbers
Contact part numbers
Series
8656 25 P L T X LF
Options 1 (see page 61) Blank : Standard mounting hole (Ø = 3.10) O : Clinch nuts UNC 4-40 Number of contacts9, 15, 25, 37, 50 ContactsP : Pin S : Socket L: Supplied without contacts (obligatory) Shell platingT : Standard tin plating DimplesX : Standard on male shell only Blank: non RoHS compatible
☺
LF: RoHS compatible
☺☺
PackagingBox of Reel ofReel ofReel ofContacttype500 contacts400 contacs5000 contacts10 000 contactstype AWG 24/28 male 8656 350 06
â–² 8656 3003 06
â–² 8656 4510 06
â–² 8656 4540 06
â–² AWG 24/28 female 8656 351 06
â–² 8656 3004 06
â–² 8656 6510 06
â–² 8656 6540 06
â–² AWG 20/24 male 8656 352 06
â–² 8656 3005 06
â–² 8656 4520 06
â–² 8656 4530 06
â–² AWG 20/24 female 8656 353 06
â–² 8656 3006 06
â–² 8656 6520 06
â–² 8656 6530 06
▲ ▲ Contact plating: 4: ≥ 200 mating / unmating, non RoHS compatible
☺
4LF: ≥ 200 mating / unmating, RoHS compatible5: ≥ 500 mating / unmating, non RoHS compatible
☺
5LF: ≥ 500 mating / unmating, RoHS compatibleTechnical characteristics – page 7
☺
Preferred option 34
