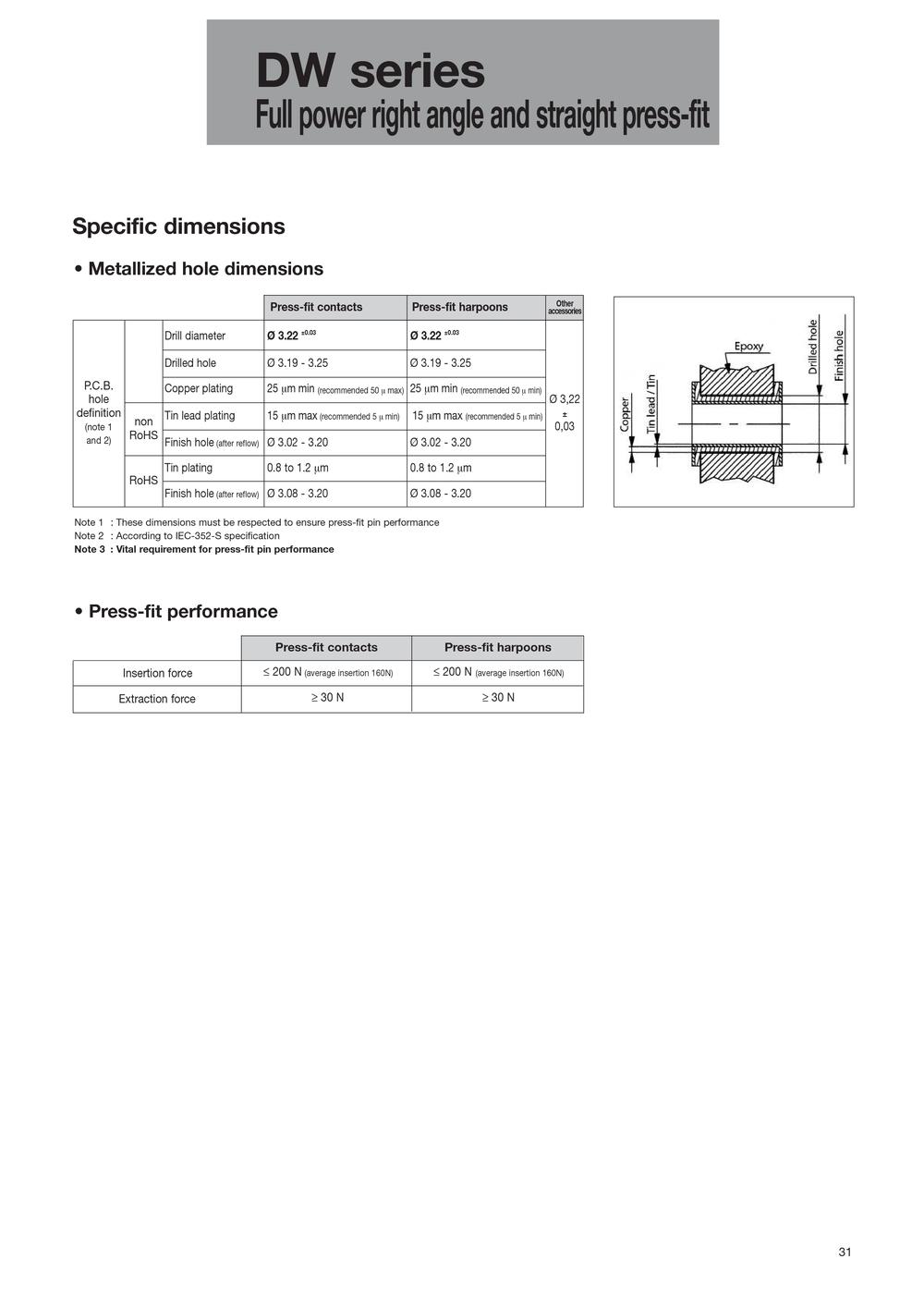

DW series

Full power right angle and straight press-fit

Specific dimensions

• Metallized hole dimensions

Press-fit contactsPress-fit harpoons
Otheraccessories Drill diameter Ø 3.22
±0.03 Ø 3.22
±0.03 Drilled holeØ 3.19 - 3.25Ø 3.19 - 3.25Copper plating P.C.B.holedefinition 25 µ mmin
(recommended 50 µ max) 25 µ mmin
(recommended 50 µ min) Ø 3,22 nonRoHSRoHS Tin lead plating 15 µ mmax
(recommended 5 µ min) 15 µ mmax
(recommended 5 µ min) ± (note 1and 2) 0,03 Finish hole
(after reflow) Ø 3.02 - 3.20Ø 3.02 - 3.20Tin plating0.8 to 1.2 µ m0.8 to 1.2 µ mFinish hole
(after reflow) Ø 3.08 - 3.20Ø 3.08 - 3.20
Note 1: These dimensions must be respected to ensure press-fit pin performance Note 2: According to IEC-352-S specification Note 3: Vital requirement for press-fit pin performance

• Press-fit performance

Press-fit contactsPress-fit harpoons Insertion force ≤ 200 N
(average insertion 160N) ≤ 200 N
(average insertion 160N) Extraction force ≥ 30 N ≥ 30 N 31
