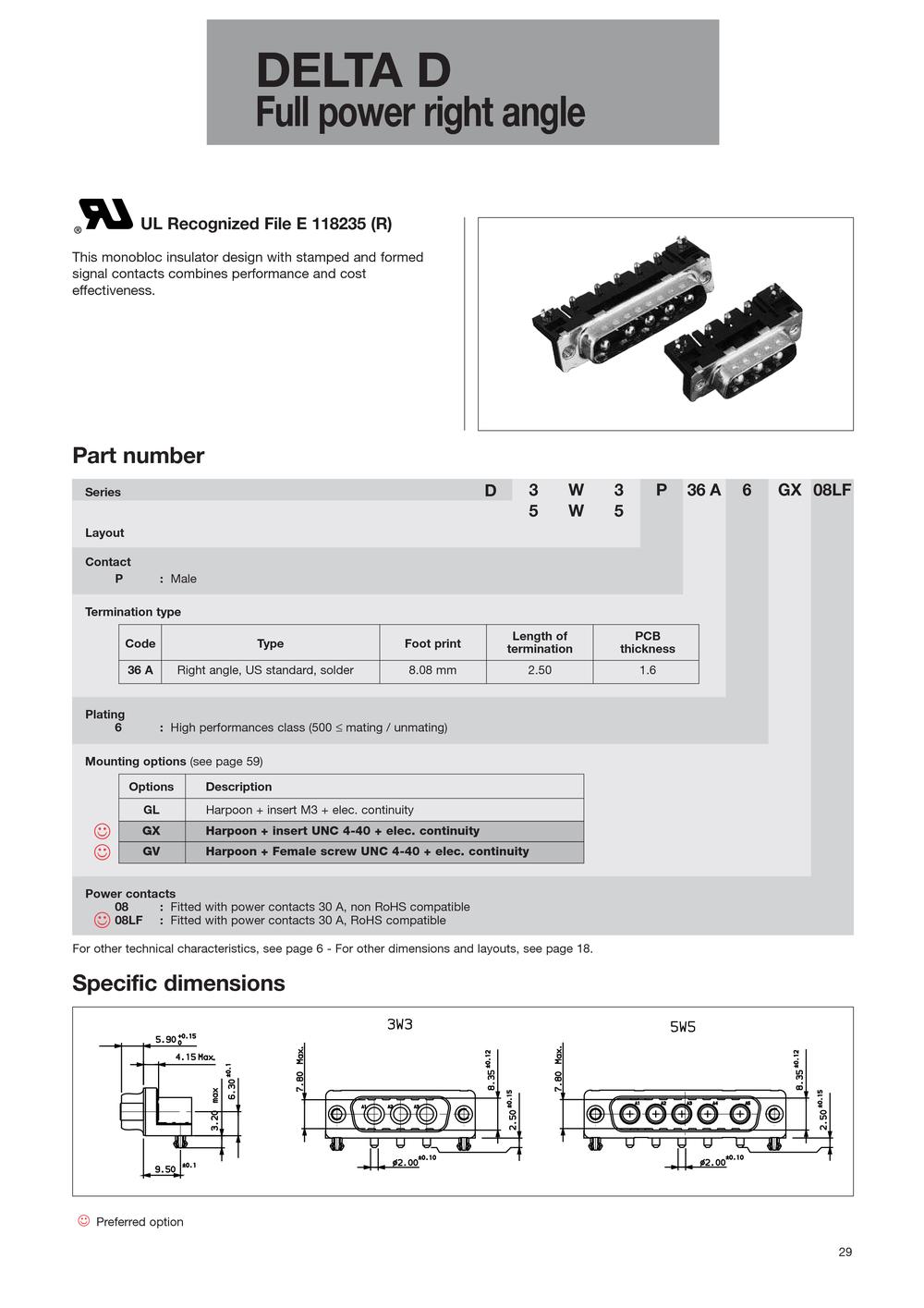

DELTA D Full power right angle

UL Recognized File E 118235 (R)

This monobloc insulator design with stamped and formedsignal contacts combines performance and cost effectiveness.

Part number

Series

D 3W35W5 P 36 A 6 GX 08LF

Layout ContactP: Male Termination type CodeTypeFoot printLength ofPCBterminationthickness 36 A Right angle, US standard, solder8.08 mm2.501.6 Plating6: High performances class (500 ≤ mating / unmating) Mounting options (see page 59) OptionsDescription GL Harpoon + insert M3 + elec. continuity

☺☺☺

GXHarpoon + insert UNC 4-40 + elec. continuity GVHarpoon + Female screw UNC 4-40 + elec. continuity Power contacts08: Fitted with power contacts 30 A, non RoHS compatible 08LF: Fitted with power contacts 30 A, RoHS compatible For other technical characteristics, see page 6 - For other dimensions and layouts, see page 18.

Specific dimensions

☺

Preferred option 29
