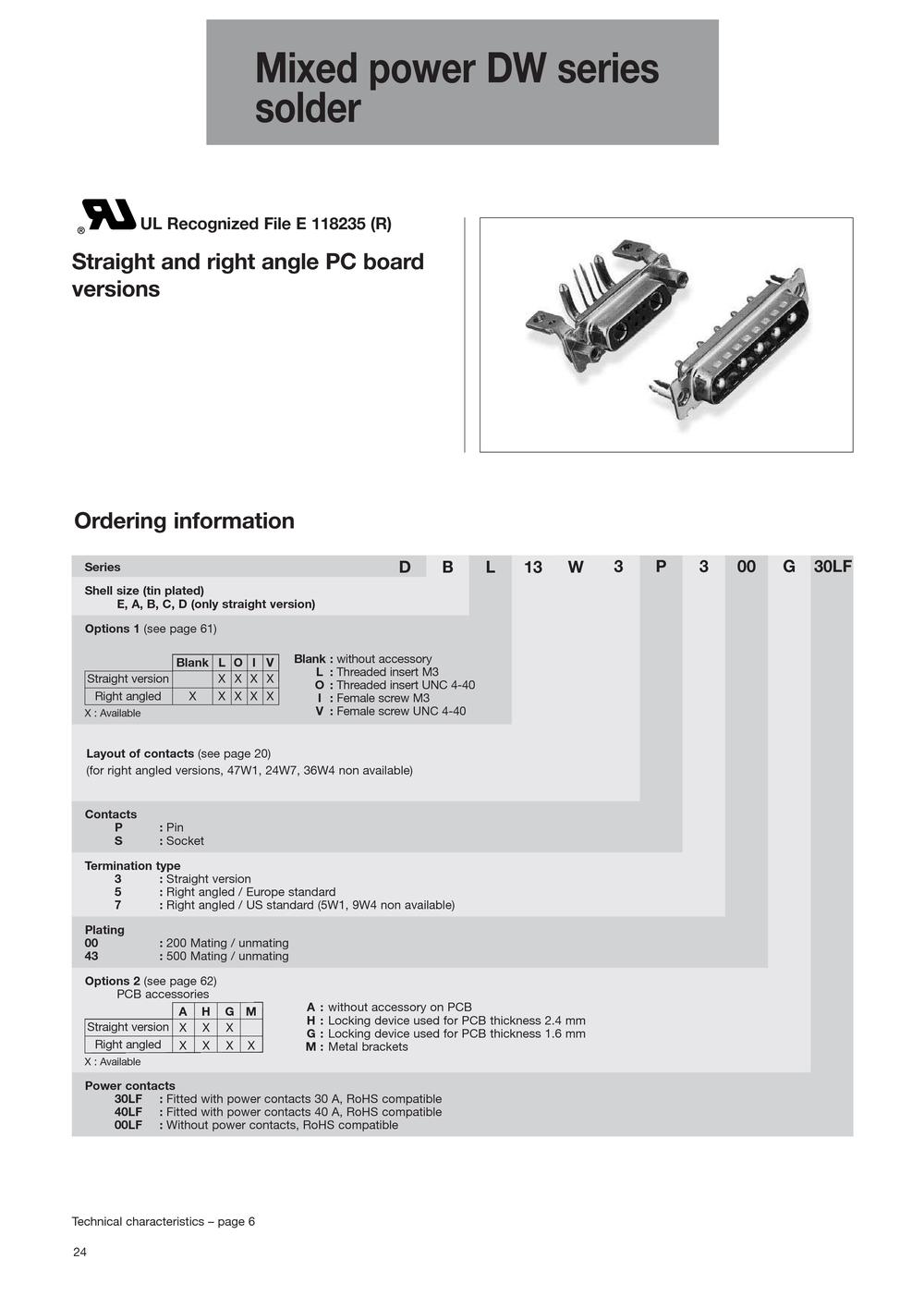

Mixed power DW seriessolder

UL Recognized File E 118235 (R)

Straight and right angle PC boardversions Ordering information

Series

D B L 13 W 3 P 3 00 G 30LF

Shell size (tin plated)E, A, B, C, D (only straight version) Options 1 (see page 61) BlankLOIV Blank : without accessory Straight versionRight angled XXXXXXXXX L : Threaded insert M3 O : Threaded insert UNC 4-40 I : Female screw M3
X : Available V : Female screw UNC 4-40 Layout of contacts (see page 20)(for right angled versions, 47W1, 24W7, 36W4 non available) ContactsP: Pin S: Socket Termination type3: Straight version 5: Right angled / Europe standard 7: Right angled / US standard (5W1, 9W4 non available) Plating00: 200 Mating / unmating 43: 500 Mating / unmating Options 2 (see page 62)PCB accessories AHGM A : without accessory on PCB Straight versionRight angled XXXXXXX H: Locking device used for PCB thickness 2.4 mm G: Locking device used for PCB thickness 1.6 mm M: Metal brackets
X : Available Power contacts30LF: Fitted with power contacts 30 A, RoHS compatible 40LF: Fitted with power contacts 40 A, RoHS compatible 00LF: Without power contacts, RoHS compatible Technical characteristics – page 6 24
