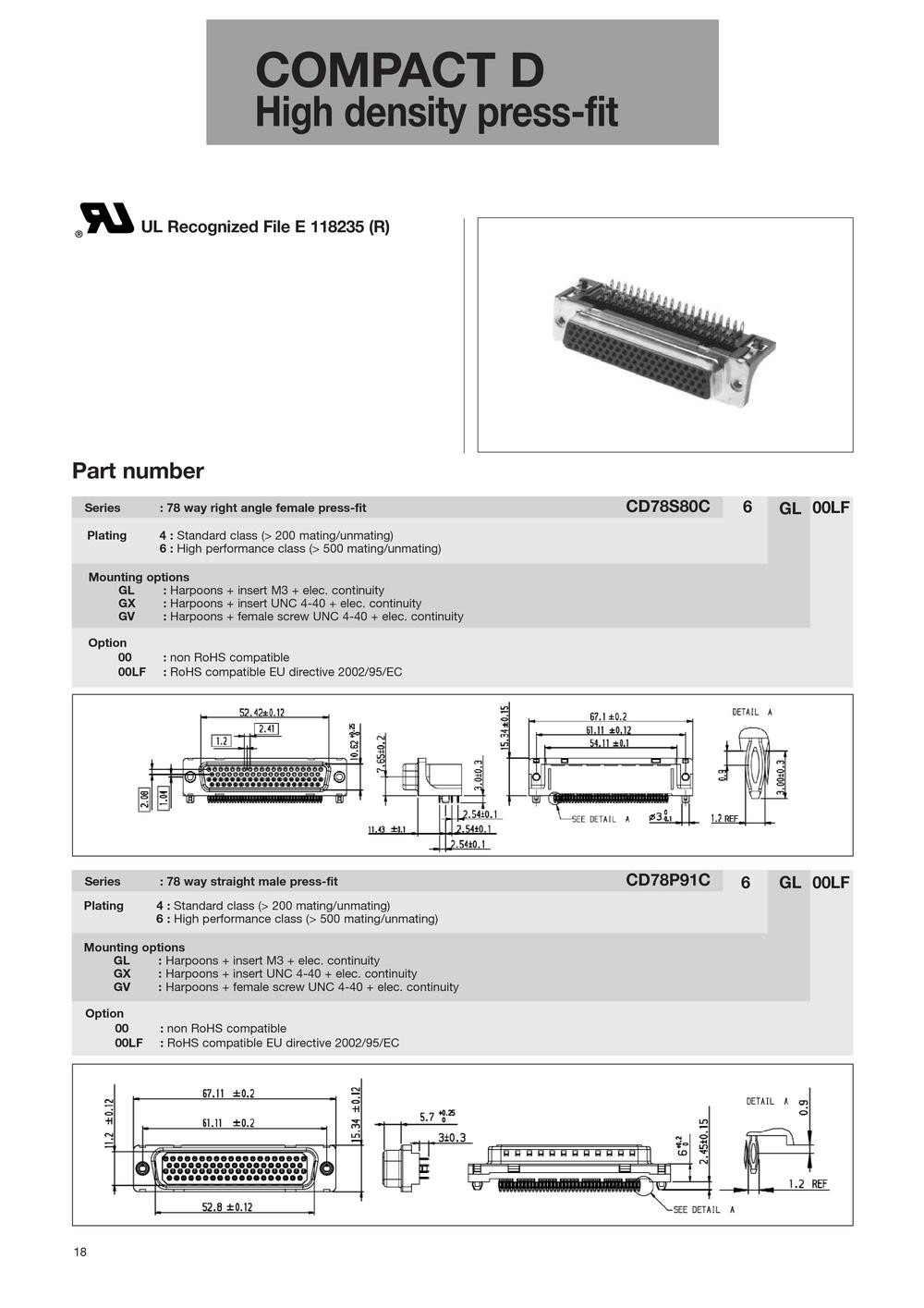

COMPACT D

High density press-fit

UL Recognized File E 118235 (R)

Part number

Series: 78 way right angle female press-fit

CD78S80C SGL 6 00LF

Plating4 : Standard class (> 200 mating/unmating) 6 : High performance class (> 500 mating/unmating) Mounting optionsGL: Harpoons + insert M3 + elec. continuity GX: Harpoons + insert UNC 4-40 + elec. continuity GV: Harpoons + female screw UNC 4-40 + elec. continuity Option00: non RoHS compatible 00LF: RoHS compatible EU directive 2002/95/EC Series: 78 way straight male press-fit

CD78P91C SGL 6 00LF

Plating4 : Standard class (> 200 mating/unmating) 6 : High performance class (> 500 mating/unmating) Mounting optionsGL: Harpoons + insert M3 + elec. continuity GX: Harpoons + insert UNC 4-40 + elec. continuity GV: Harpoons + female screw UNC 4-40 + elec. continuity Option00: non RoHS compatible 00LF: RoHS compatible EU directive 2002/95/EC 18
