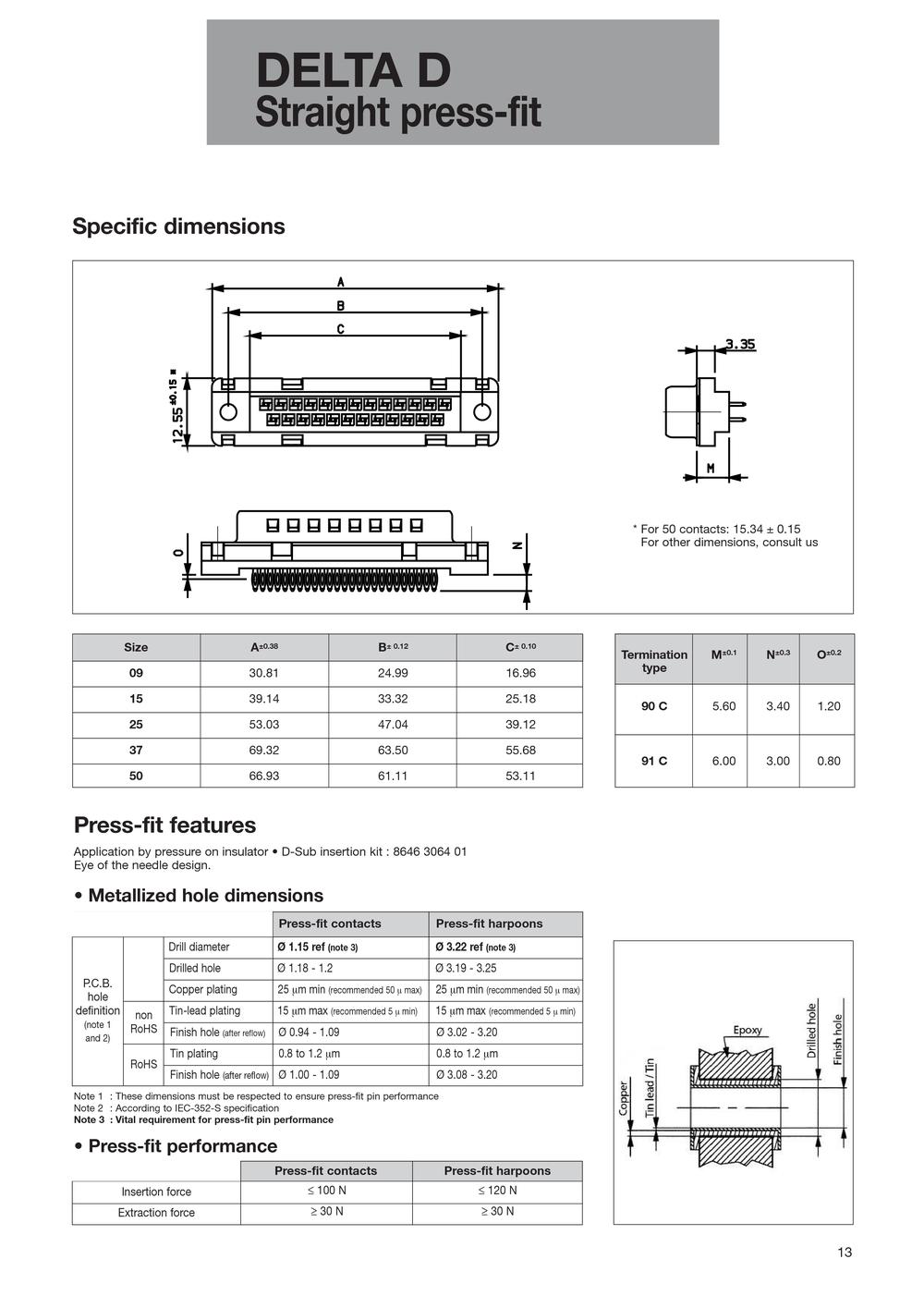

DELTA D

Straight press-fit

Specific dimensions

* For 50 contacts: 15.34±0.15For other dimensions, consult us SizeA
±0.38 B
±0.12 C
±0.10 TerminationM
±0.1 N
±0.3 O
±0.2 09 30.8124.9916.96 type 15 39.1433.3225.18 90 C 5.603.401.20 25 53.0347.0439.12 37 69.3263.5055.68 91 C 6.003.000.80 50 66.9361.1153.11

Press-fit features

Application by pressure on insulator • D-Sub insertion kit : 8646 3064 01Eye of the industrial needle design.

• Metallized hole dimensions

Press-fit contactsPress-fit harpoons Drill diameter Ø 1.15 ref
(note 3) Ø 3.22 ref
(note 3) Drilled holeØ 1.18 - 1.2Ø 3.19 - 3.25Copper plating P.C.B.holedefinition 25 µ mmin
(recommended 50 µ max) 25 µ mmin
(recommended 50 µ max) nonRoHSRoHS Tin-lead plating 15 µ mmax
(recommended 5 µ min) 15 µ mmax
(recommended 5 µ min) (note 1and 2) Finish hole
(after reflow) Ø 0.94 - 1.09Ø 3.02 - 3.20Tin plating0.8 to 1.2 µ m0.8 to 1.2 µ mFinish hole
(after reflow) Ø 1.00 - 1.09Ø 3.08 - 3.20
Note 1: These dimensions must be respected to ensure press-fit pin performanceNote 2: According to IEC-352-S specification Note 3: Vital requirement for press-fit pin performance

• Press-fit performance

Press-fit contactsPress-fit harpoons Insertion force ≤ 100 N ≤ 120 NExtraction force ≥ 30 N ≥ 30 N

13
