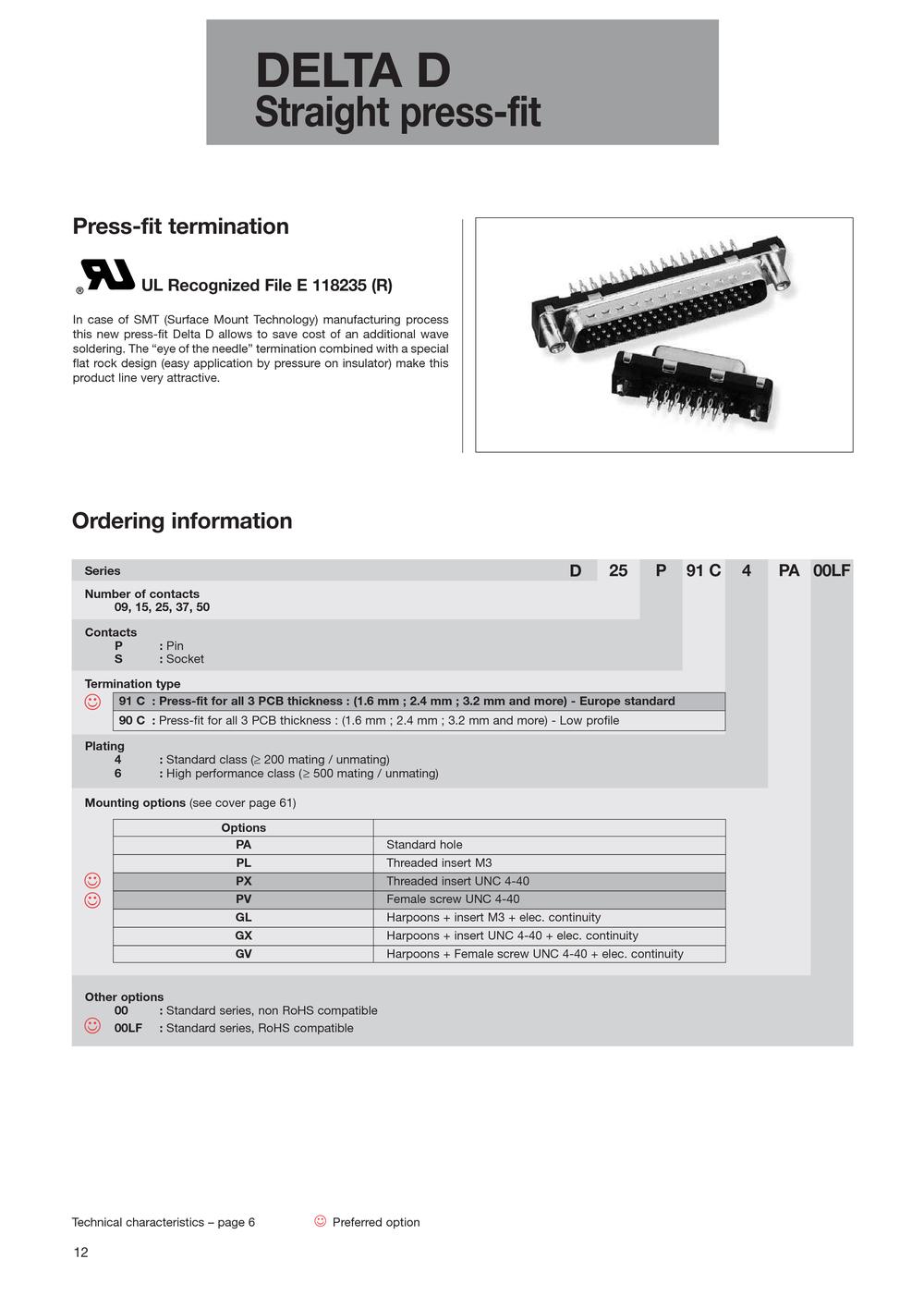

DELTA D Straight press-fit

Press-fit termination

UL Recognized File E 118235 (R)

In case of SMT (Surface Mount Technology) manufacturing processthis new press-fit Delta D allows to save cost of an additional wave soldering. The “eye of the needle” termination combined with a specialflat rock design (easy application by pressure on insulator) make this product line very attractive.

Ordering information

Series

D 25 P 91 C 4 PA 00LF

Number of contacts09, 15, 25, 37, 50 ContactsP: Pin S: Socket Termination type

☺

91 C: Press-fit for all 3 PCB thickness : (1.6 mm ; 2.4 mm ; 3.2 mm and more) - Europe standard90 C: Press-fit for all 3 PCB thickness : (1.6 mm ; 2.4 mm ; 3.2 mm and more) - Low profile Plating4: Standard class ( ≥ 200 mating / unmating) 6: High performance class ( ≥ 500 mating / unmating) Mounting options (see cover page 61) Options PA Standard hole PL Threaded insert M3

☺☺☺

PX Threaded insert UNC 4-40 PV Female screw UNC 4-40 GL Harpoons + insert M3 + elec. continuity GX Harpoons + insert UNC 4-40 + elec. continuity GV Harpoons + Female screw UNC 4-40 + elec. continuity Other options00 : Standard series, non RoHS compatible 00LF: Standard series, RoHS compatible Technical characteristics – page 6

☺

Preferred option

12
