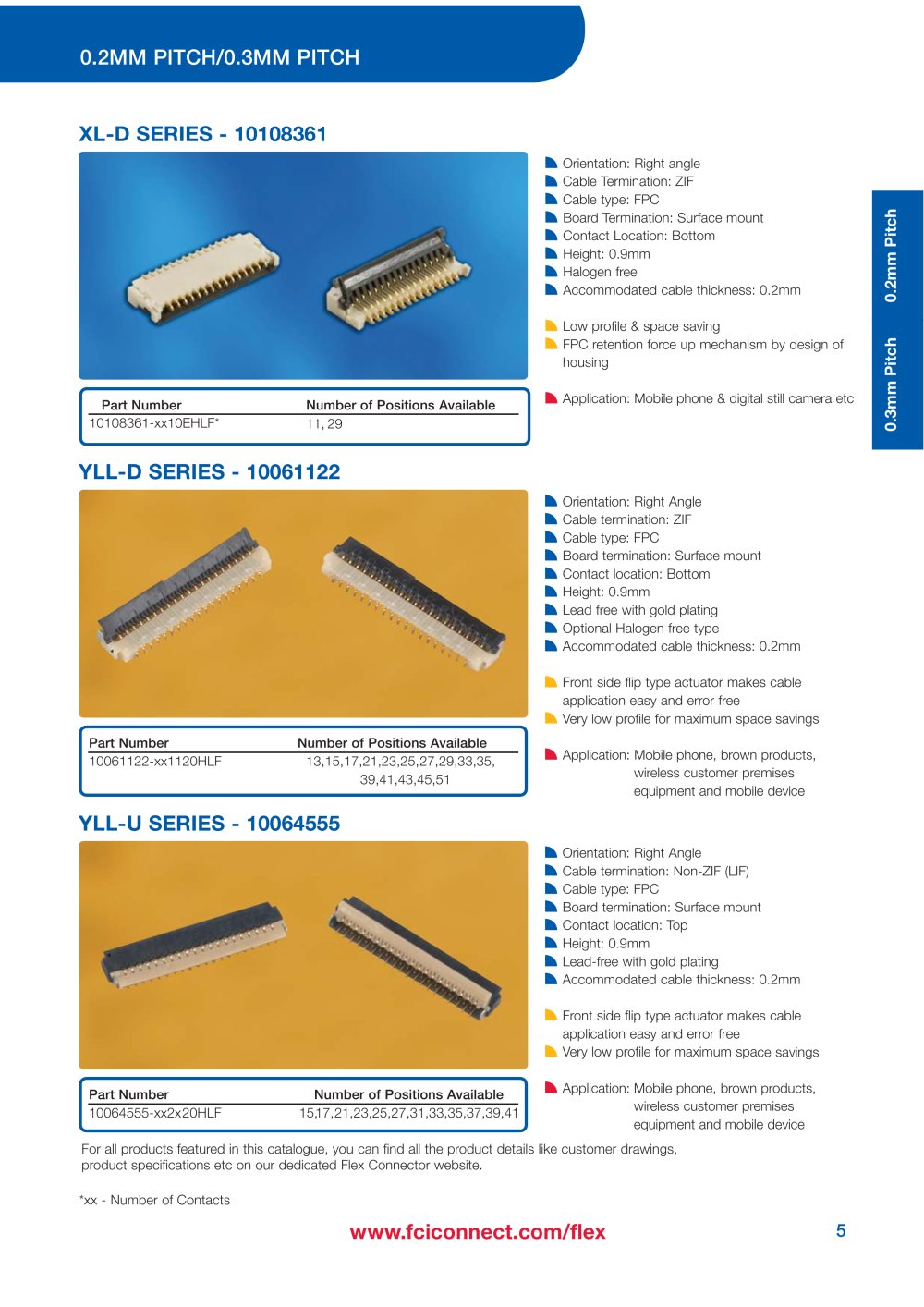

0.3MM CONTACT SPACING
yll-d series - 10061122
Orientation: Right Angle Cable termination: ZIF Cable type: FPC
Board termination: Surface mount
Contact location: Lower
Height: 0.9mm
Lead free with gold plating
Accommodated cable thickness: 0.2mm
Front flip type actuator makes cable
application easy and error free
Very low profile for maximum space savings
Part Number
Number of Positions Available
10061122-xx1110ELF
15,21,33,35,39,41
yll-u series - 10064555
Orientation: Right Angle
Cable termination: ZIF with prehold
Cable type: FPC
Board termination: Surface mount
Contact location: Upper
Height: 0.9mm
Lead free with gold plating
Accommodated cable thickness: 0.2mm
Front flip type actuator makes cable
application easy and error free
Very low profile for maximum space savings
Part Number
Number of Positions Available
10064555-xx2110ELF
23,31,33,35,37,39
xx - Number of Contacts
www.fciconnect.com/flex
5
