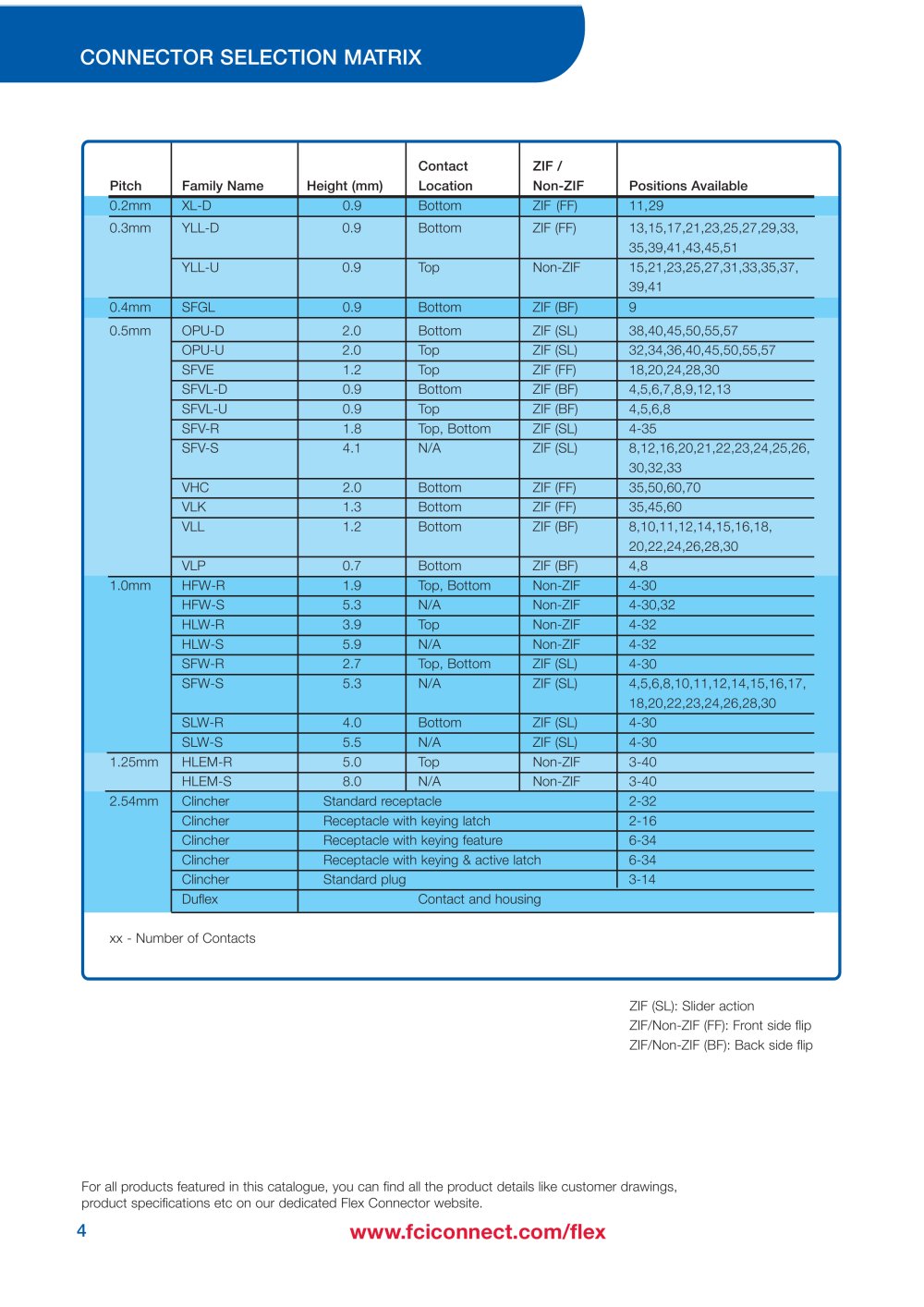

CONNECTOR SELECTION MATRIX


	Contact			Height	Contact
	Spacing	Series	Part Number	mm	Location	ZIF / LIF	Positions Available
	0.3	YLL-D	10061122	0.9	Lower	ZIF	15,21,33,35,39,41
		YLL-U	10064555	0.9	Upper	ZIF	23,31,33,35,37,39
		SFYL-D	10013057	1.2	Lower	Non-ZIF	17,21,25,29,31,35,45
		SFYL-U	10017251	1.2	Upper	Non-ZIF	11,15,19,23,25,27,31, 39,45,51
		SFY	62789	2.0	Lower	ZIF	27,45,51,57,67
	0.4	GLH	10051806	1.2	Lower	ZIF	57, 60
	0.5	VLL	10051922	1.3	Lower	ZIF	8,10,11,12,14,15,16,18, 20,22,24,26,28,30
		VLH	10042867	1.3	Lower	ZIF	40,45,50
		SFVL-D	59453-xx1	0.9	Lower	ZIF	4,5,6,7,8,9,12
		SFVL-U	59453-xx2	0.9	Upper	ZIF	4,5,6,8
		SFVA	10014265	2.0	Both	ZIF	60
		SFVE	10054365	1.2	Upper	ZIF	18,20,28,30
		OPU-D	62684-xx1	2.0	Lower	ZIF	38,40,45,50,57,60
		OPU-U	62684-xx2	2.0	Upper	ZIF	32,34,36,40,43,45,50,55,57
		SFV-R	SFVxxR	1.8	Upper or Lower	ZIF	4-35
		SFV-S	62674	2.95	Vertical	ZIF	8,12,16,20,21,23,24, 25,26,30,32,33
	1.0	SFW-R	SFWxxR	2.7	Upper or Lower	ZIF	4-30
		SFW-S	SFWxxS	3.6	Vertical	ZIF	4,5,6,8,10,15,16,17,18,19, 20,22,23,24,26,28,30
		HFW-S	HFWxxS	3.6	Vertical	Non-ZIF	4-30
		HFW-R	HFWxxR	1.9	Upper or Lower	Non-ZIF	4-33
		SLW-R	SLWxxR	4	Lower	ZIF	4-30
		SLW-S	SLWxxS	5.5	Lower	ZIF	4-30
		HLW-R	HLWxxR	3.9	Upper	Non-ZIF	4-32
		HLW-S	HLWxxS	5.9	Vertical	Non-ZIF	4-32

xx - Number of Contacts
