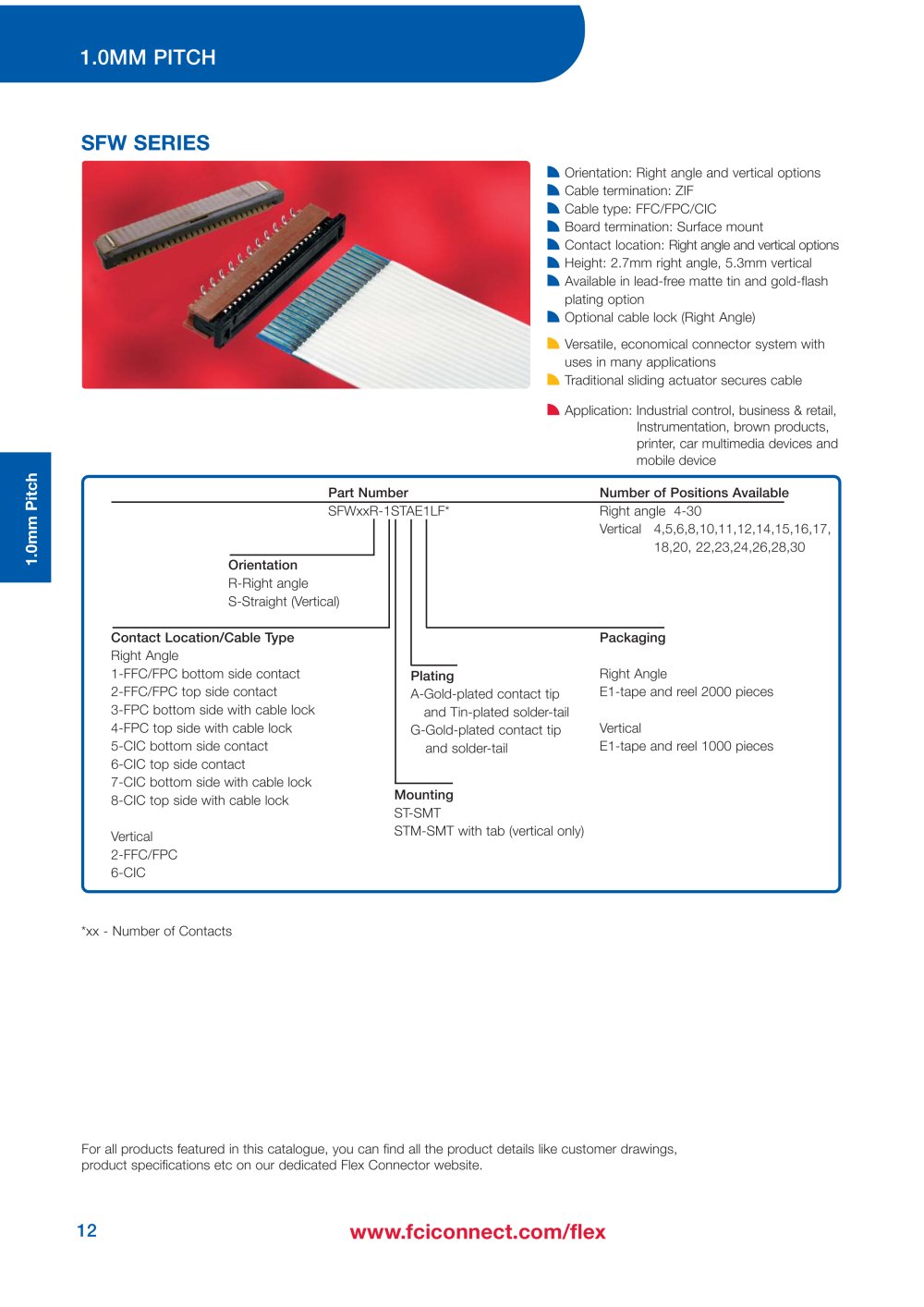

1.0MM CONTACT SPACING SFW SERIES
Orientation: Right angle and vertical optionsCable termination: ZIF with prehold
Cable type: FFC/FPC/CIC
Board termination: Surface mount Contact location: Upper and lower options
Height: 2.7mm right angle, 5.3 vertical
Lead free with gold plating
Optional cable lockVersatile, economical connector system withuses in many applications
Traditional sliding actuator secures cable Part Number Number of Positions Available SFWxxR-1STE1Right angle 4-30Vertical 4,5,6,8,10,15,16,17,18,19,20, 22,23,24,26,28,30 R-right angle
S-straight Contact Location/Cable Type Packaging Orientation 1-FFC/FPC downside contactRight Angle
2-FFC/FPC upside contactE1-tape and reel 2000 pieces
3-FPC downside with cable lock
4-FPC upside with cable lockVertical
5-CIC downside contactE1-tape and reel 1000 pieces
6-CIC upside contact
7-CIC downside with cable lock
8-CIC upside with cable lock Mounting ST-SMT
STM-SMT with tab (vertical only) xx - Number of Contacts
12
www.fciconnect.com/flex
