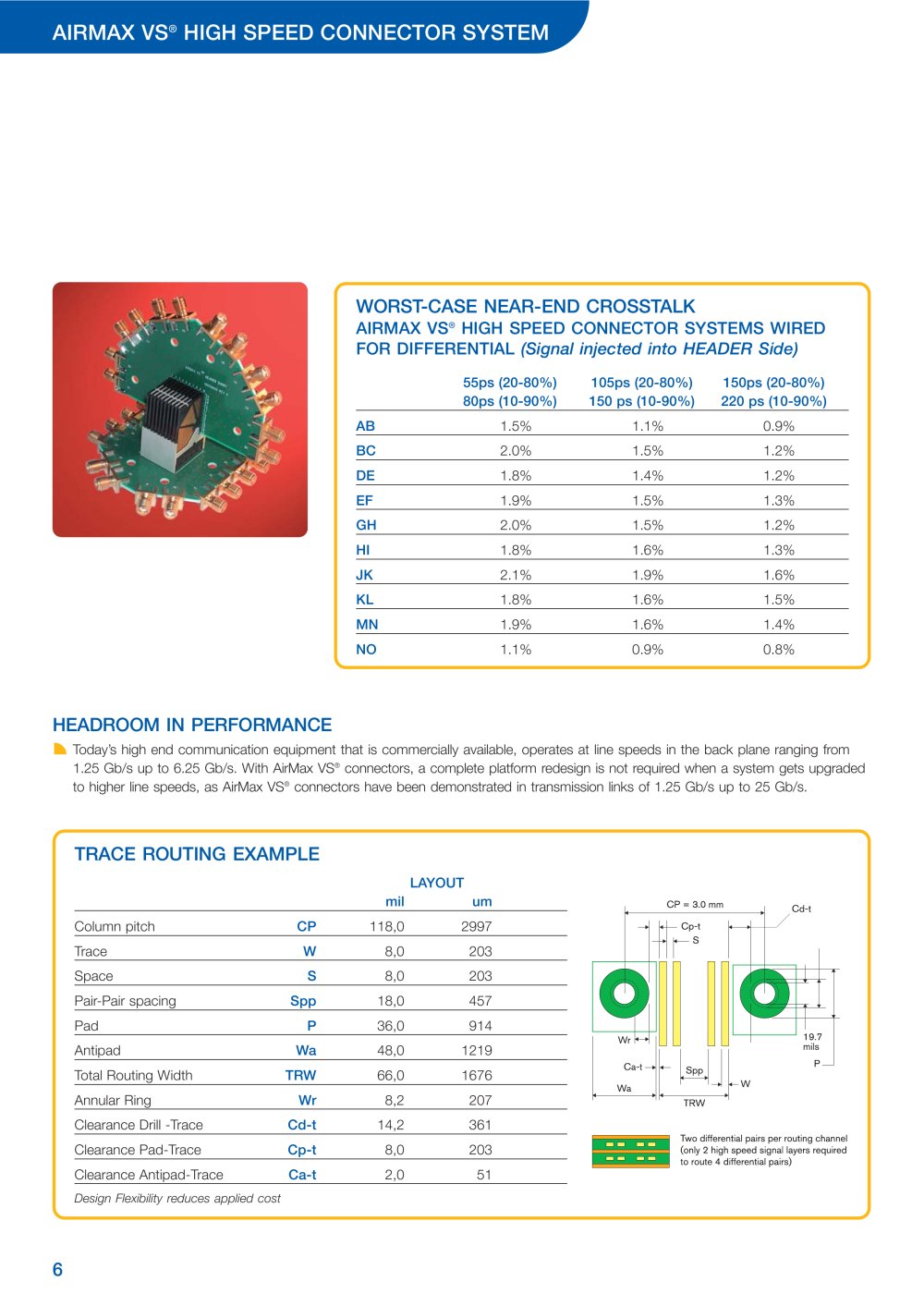

AIRMAX VS

®

HIGH SPEED CONNECTOR SYSTEM

WORST-CASE NEAR-END CROSSTALK

AIRMAX VS

®

HIGH SPEED CONNECTOR SYSTEMS WIREDFOR DIFFERENTIAL (Signal injected into HEADER Side)

55ps (20-80%)105ps (20-80%)150ps (20-80%) 80ps (10-90%)150 ps (10-90%)220 ps (10-90%) AB 1.5%1.1%0.9% BC 2.0%1.5%1.2% DE 1.8%1.4%1.2% EF 1.9%1.5%1.3% GH 2.0%1.5%1.2% HI 1.8%1.6%1.3% JK 2.1%1.9%1.6% KL 1.8%1.6%1.5% MN 1.9%1.6%1.4% NO 1.1%0.9%0.8% Today’s high end communication equipment that is commercially available, operates at line speeds in the back plane ranging from1.25 Gb/s up to 6.25 Gb/s. With AirMax VS
® connectors manufacturer, a complete platform redesign is not required when a system gets upgradedto higher line speeds, as AirMax VS
® connectors have been demonstrated in transmission links of 1.25 Gb/s up to 25 Gb/s.

TRACE ROUTING EXAMPLE

LAYOUT milum Column pitch CP 118,02997 Trace W 8,0203 Space S 8,0203 Pair-Pair spacing Spp 18,0457 Pad P 36,0914 Antipad Wa 48,01219 Total Routing Width TRW 66,01676 Annular Ring Wr 8,2207 Clearance Drill -Trace Cd-t 14,2361 Clearance Pad-Trace Cp-t 8,0203 Clearance Antipad-Trace Ca-t 2,051
Design Flexibility reduces applied cost

6 HEADROOM IN PERFORMANCE
