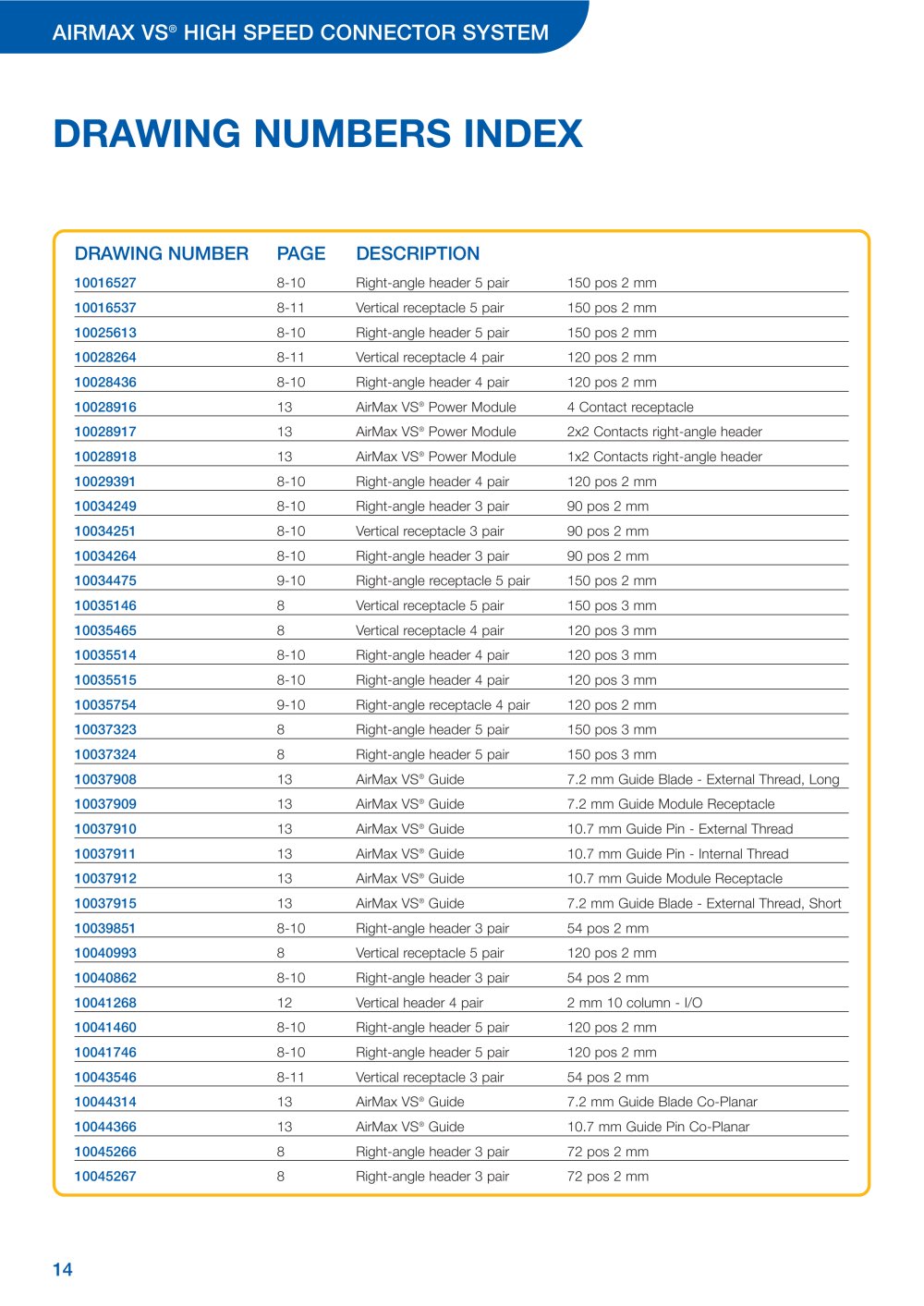

AIRMAX VS
® HIGH SPEED CONNECTOR SYSTEM
DRAWING NUMBERS INDEX
DRAWING NUMBERPAGEDESCRIPTION
10016527 8-10Right-angle header 5 pair150 pos 2 mm 10016537 8-11Vertical receptacle 5 pair150 pos 2 mm 10025613 8-10Right-angle header 5 pair150 pos 2 mm 10028264 8-11Vertical receptacle 4 pair120 pos 2 mm 10028436 8-10Right-angle header 4 pair120 pos 2 mm 10028916 13AirMax VS
® Power Module4 Contact receptacle 10028917 13AirMax VS
® Power Module2x2 Contacts right-angle header 10028918 13AirMax VS
® Power Module1x2 Contacts right-angle header 10029391 8-10Right-angle header 4 pair120 pos 2 mm 10034249 8-10Right-angle header 3 pair90 pos 2 mm 10034251 8-10Vertical receptacle 3 pair90 pos 2 mm 10034264 8-10Right-angle header 3 pair90 pos 2 mm 10034475 9-10Right-angle receptacle 5 pair150 pos 2 mm 10035146 8Vertical receptacle 5 pair150 pos 3 mm 10035465 8Vertical receptacle 4 pair120 pos 3 mm 10035514 8-10Right-angle header 4 pair120 pos 3 mm 10035515 8-10Right-angle header 4 pair120 pos 3 mm 10035754 9-10Right-angle receptacle 4 pair120 pos 2 mm 10037323 8Right-angle header 5 pair150 pos 3 mm 10037324 8Right-angle header 5 pair150 pos 3 mm 10037908 13AirMax VS
® Guide7.2 mm Guide Blade - External Thread, Long 10037909 13AirMax VS
® Guide7.2 mm Guide Module Receptacle 10037910 13AirMax VS
® Guide10.7 mm Guide Pin - External Thread 10037911 13AirMax VS
® Guide10.7 mm Guide Pin - Internal Thread 10037912 13AirMax VS
® Guide10.7 mm Guide Module Receptacle 10037915 13AirMax VS
® Guide7.2 mm Guide Blade - External Thread, Short 10039851 8-10Right-angle header 3 pair54 pos 2 mm 10040993 8Vertical receptacle 5 pair120 pos 2 mm 10040862 8-10Right-angle header 3 pair54 pos 2 mm 10041268 12Vertical header 4 pair2 mm 10 column - I/O 10041460 8-10Right-angle header 5 pair120 pos 2 mm 10041746 8-10Right-angle header 5 pair120 pos 2 mm 10043546 8-11Vertical receptacle 3 pair54 pos 2 mm 10044314 13AirMax VS
® Guide7.2 mm Guide Blade Co-Planar 10044366 13AirMax VS
® Guide10.7 mm Guide Pin Co-Planar 10045266 8Right-angle header 3 pair72 pos 2 mm 10045267 8Right-angle header 3 pair72 pos 2 mm
