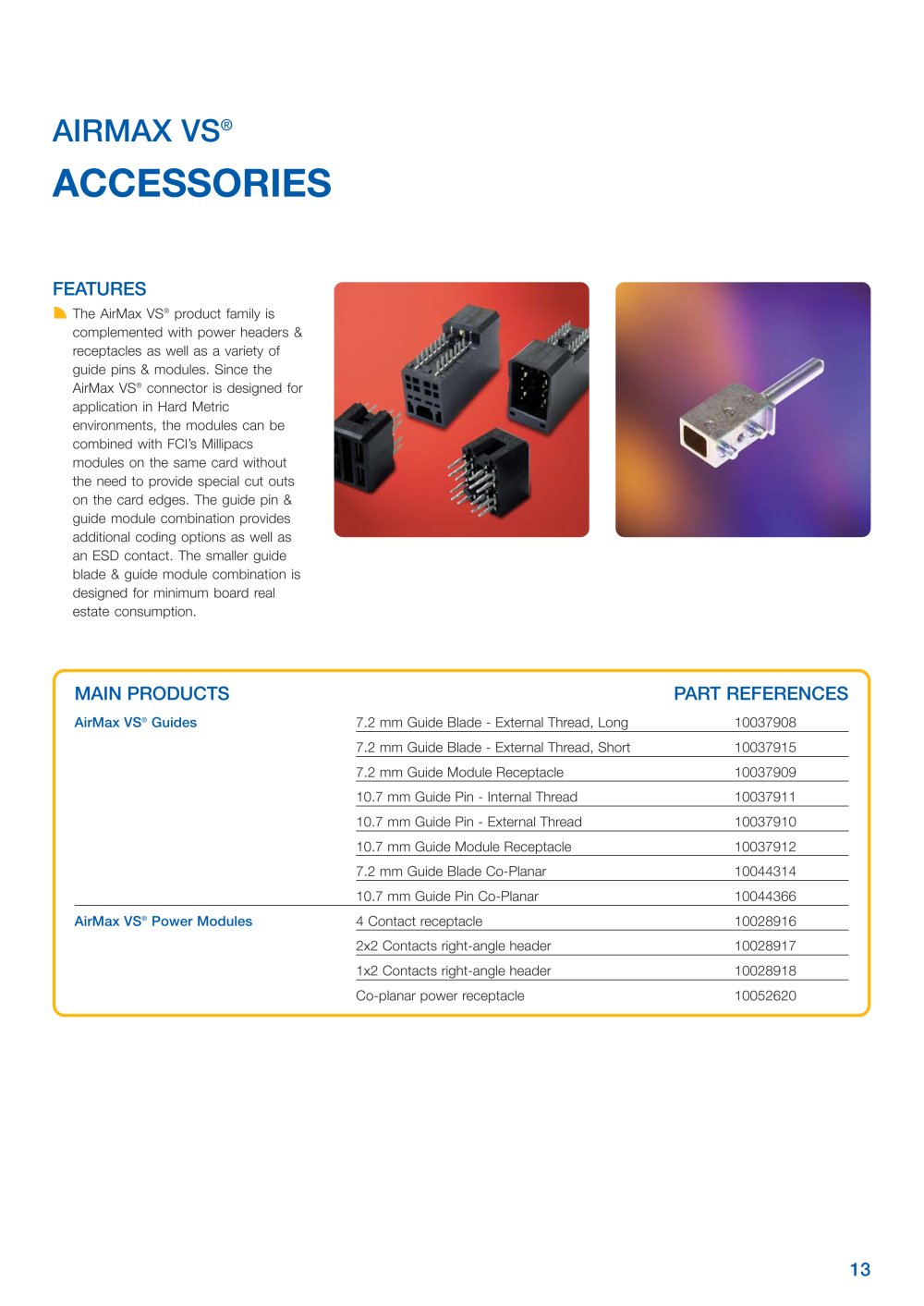

AIRMAX VS

®

ACCESSORIES

FEATURES

The AirMax VS
® product family iscomplemented with power headers & receptacles as well as a variety of guide pins & modules. Since theAirMax VS
® connector is designed forapplication in Hard Metric environments, the modules can be combined with FCI’s Millipacsmodules on the same card withoutthe need to provide special cut outs on the card edges. The guide pin &guide module combination providesadditional coding options as well as an ESD contact. The smaller guideblade & guide module combination isdesigned for minimum board real estate consumption.

MAIN PRODUCTSPART REFERENCES

AirMax VS
® Guides 7.2 mm Guide Blade - External Thread, Long10037908 7.2 mm Guide Blade - External Thread, Short10037915 7.2 mm Guide Module Receptacle10037909 10.7 mm Guide Pin - Internal Thread10037911 10.7 mm Guide Pin - External Thread10037910 10.7 mm Guide Module Receptacle10037912 7.2 mm Guide Blade Co-Planar 10044314 10.7 mm Guide Pin Co-Planar10044366 AirMax VS
® Power Modules 4 Contact receptacle10028916 2x2 Contacts right-angle header10028917 1x2 Contacts right-angle header10028918Co-planar power receptacle10052620

13
