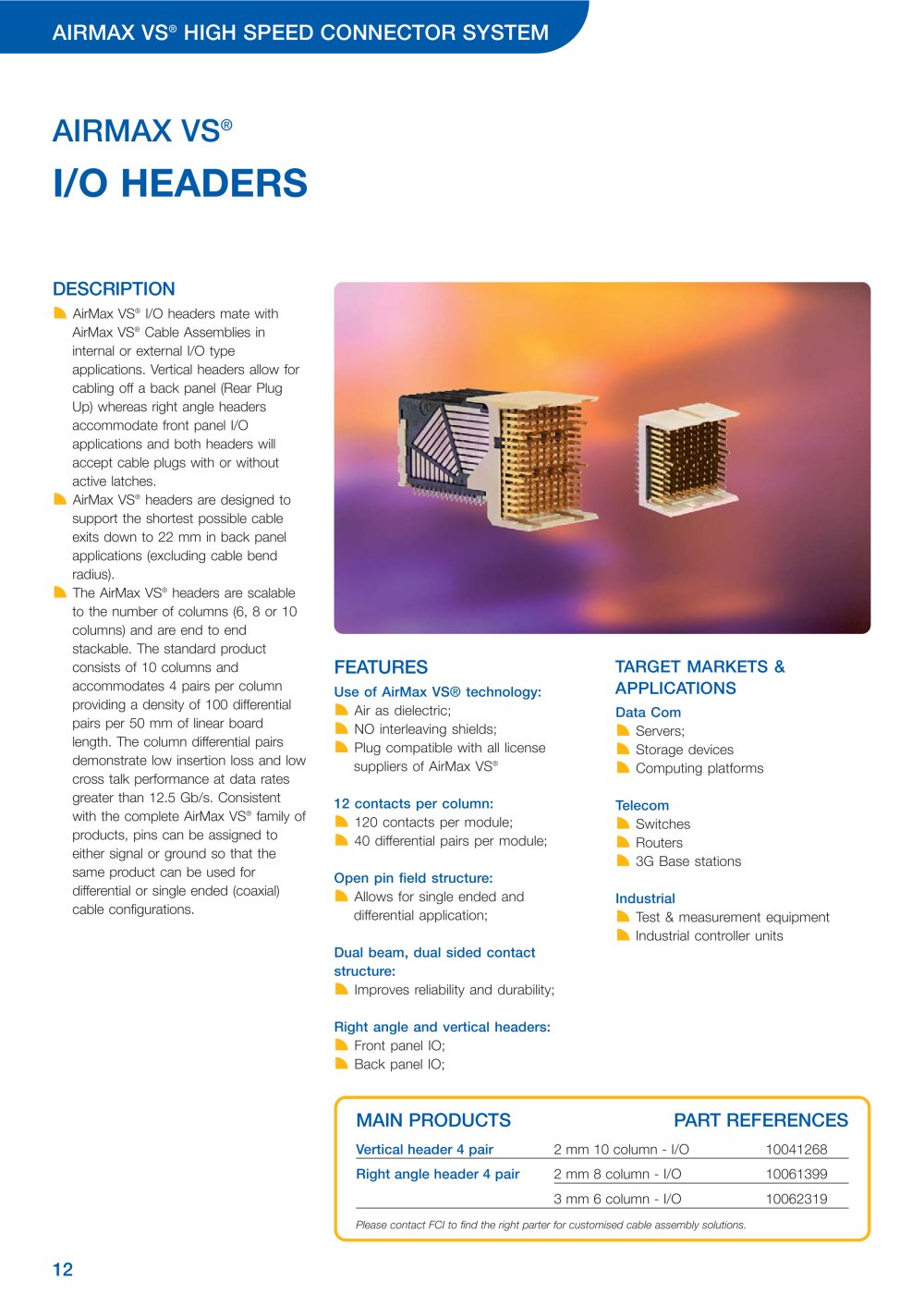

AIRMAX VS
® HIGH SPEED CONNECTOR SYSTEM
AIRMAX VS
®
I/O HEADERS
DESCRIPTION
AirMax VS
® I/O headers mate withAirMax VS
® Industrial cable assemblies ininternal or external I/O type
applications. Vertical headers allow for
cabling off a back panel (Rear PlugUp) whereas right angle headersaccommodate front panel I/O
applications and both headers willaccept cable plugs with or withoutactive
industrial latches.AirMax VS
® headers are designed tosupport the shortest possible cable
exits down to 22 mm in back panel
applications (excluding cable bendradius).The AirMax VS
® headers are scalableto the number of columns (6, 8 or 10columns) and are end to end
stackable. The standard productconsists of 10 columns andaccommodates 4 pairs per column
providing a density of 100 differentialpairs per 50 mm of linear boardlength. The column differential pairs
demonstrate low insertion loss and lowcross talk performance at data ratesgreater than 12.5 Gb/s. Consistent
with the complete AirMax VS
FEATURES
TARGET MARKETS &APPLICATIONS
Use of AirMax VS® technology: Air as dielectric;NO interleaving shields;Plug compatible with all licensesuppliers of AirMax VS Data Com Servers;Storage devicesComputing platforms
® ® 12 contacts per column: Telecom family ofproducts, pins can be assigned to
either signal or ground so that the
same product can be used fordifferential or single ended (coaxial)cable configurations. 120 contacts per module;40 differential pairs per module; Switches
Routers3G Base stations Industrial Open pin field structure: Test & measurement equipmentIndustrial controller units Allows for single ended anddifferential application; Dual beam, dual sided contactstructure: Improves reliability and durability; Right angle and vertical headers: Front panel IO;
Back panel IO;
MAIN PRODUCTSPART REFERENCES
Vertical header 4 pair 2 mm 10 column - I/O10041268 Right angle header 4 pair 2 mm 8 column - I/O10061399 3 mm 6 column - I/O10062319
Please contact FCI to find the right parter for customised cable assembly solutions. 12
