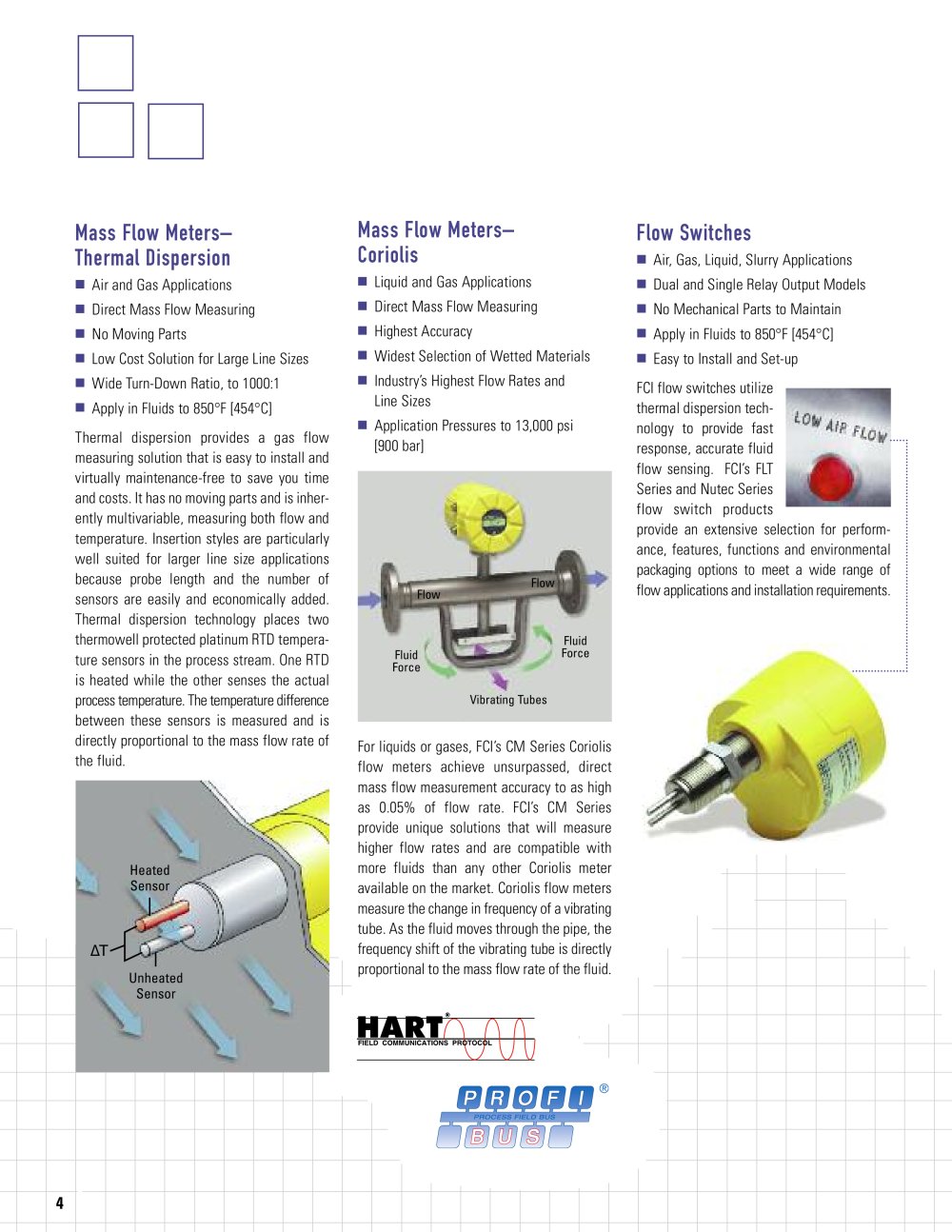

MassFlowMeters–ThermalDispersion MassFlowMeters–Coriolis FlowSwitches

Air,Gas,Liquid,SlurryApplications

AirandGasApplications

LiquidandGasApplications

DualandSingleRelayOutputModels

DirectMassFlowMeasuring

DirectMassFlowMeasuring

NoMechanicalPartstoMaintain

NoMovingParts

HighestAccuracy

ApplyinFluidsto850°F[454°C]

LowCostSolutionforLargeLineSizes

WidestSelectionofWettedMaterials

EasytoInstallandSet-upFCIflowswitchesutilizethermaldispersiontech- nologytoprovidefast response,accuratefluid flowsensing.FCI’sFLT SeriesandNutecSeries flowswitchproducts provideanextensiveselectionforperform- ance,features,functionsandenvironmental packagingoptionstomeetawiderangeof flowapplicationsandinstallationrequirements.

WideTurn-DownRatio,to1000:1

Industry’sHighestFlowRatesandLineSizes

ApplyinFluidsto850°F[454°C]Thermaldispersionprovidesagasflowmeasuringsolutionthatiseasytoinstalland virtuallymaintenance-freetosaveyoutime andcosts.Ithasnomovingpartsandisinher- entlymultivariable,measuringbothflowand temperature.Insertionstylesareparticularly wellsuitedforlargerlinesizeapplications becauseprobelengthandthenumberof sensorsareeasilyandeconomicallyadded. Thermaldispersiontechnologyplacestwo thermowellprotectedplatinumRTDtempera- turesensorsintheprocessstream.OneRTD isheatedwhiletheothersensestheactual processtemperature.Thetemperaturedifference betweenthesesensorsismeasuredandis directlyproportionaltothemassflowrateof thefluid.

ApplicationPressuresto13,000psi [900bar] Forliquidsorgases,FCI’sCMSeriesCoriolisflowmetersachieveunsurpassed,direct massflowmeasurementaccuracytoashigh as0.05%offlowrate.FCI’sCMSeries provideuniquesolutionsthatwillmeasure higherflowratesandarecompatiblewith morefluidsthananyotherCoriolismeteravailableonthemarket.Coriolisflowmetersmeasurethechangeinfrequencyofavibratingtube.Asthefluidmovesthroughthepipe,the frequencyshiftofthevibratingtubeisdirectlyproportionaltothemassflowrateofthefluid.

HeatedSensorUnheatedSensor

∆T
