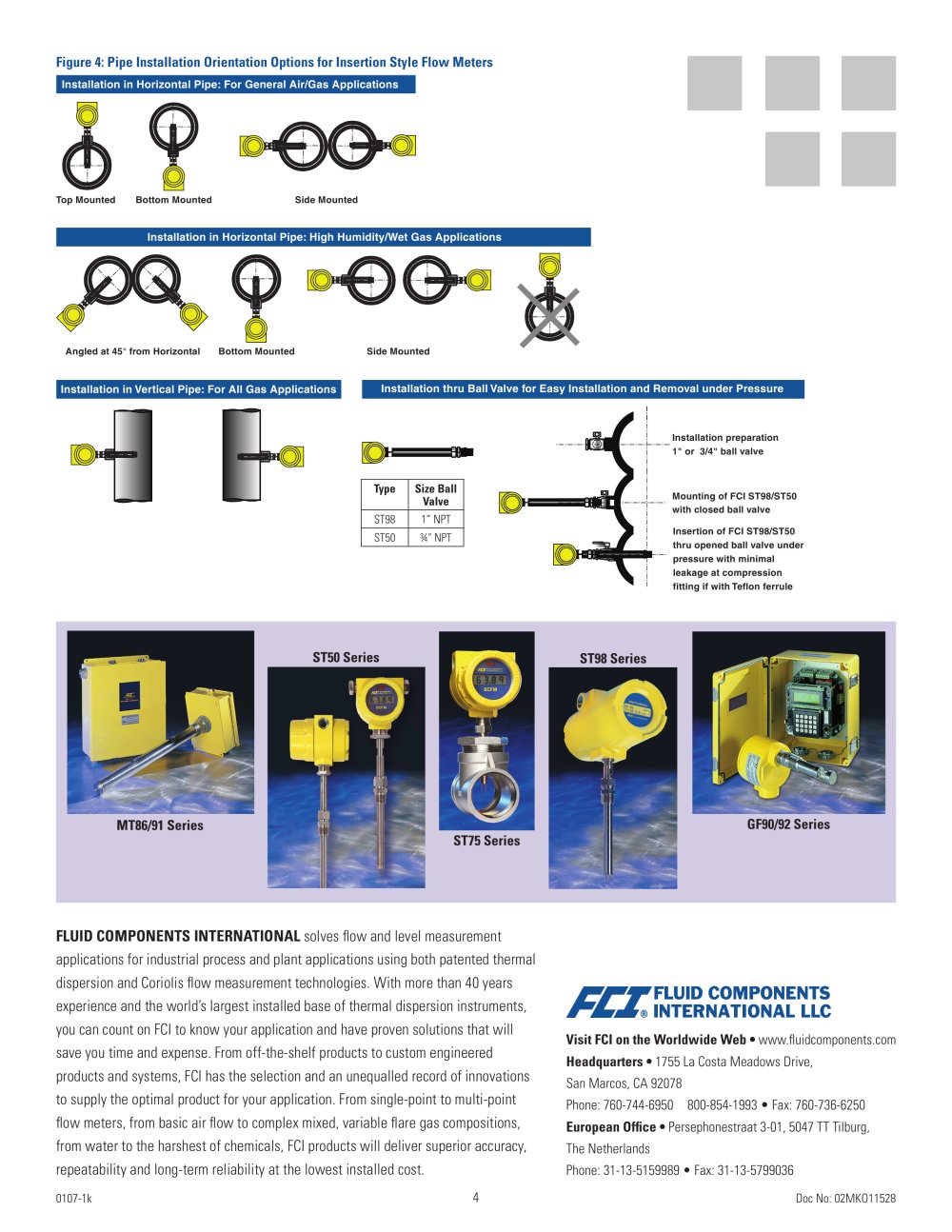

Figure 4: Pipe Installation Orientation Options for Insertion Style Industrial flow meters
Installation in Horizontal Pipe: For General Air/Gas Applications Top MountedBottom MountedSide Mounted Angled at 45° from Horizontal Installation in Horizontal Pipe: High Humidity/Wet Gas Applications Installation in Vertical Pipe: For All Gas Applications Bottom MountedSide Mounted Installation thru Industrial ball valve for Easy Installation and Removal under Pressure TypeSize Ball Valve Mounting of FCI ST98/ST50 with closed ball valveInstallation preparation 1" or 3/4" ball valveInsertion of FCI ST98/ST50 thru opened ball valve under pressure with minimal leakage at compression fitting if with Teflon ferrule ST98 1” NPT ST50 ¾" NPT MT86/91 Series ST50 Series ST75 Series ST98 Series GF90/92 Series

FLUID COMPONENTS INTERNATIONAL solves flow and level measurement applications for industrial process and plant applications using both patented thermal dispersion and Coriolis flow measurement technologies. With more than 40 years experience and the world’s largest installed base of thermal dispersion instruments, you can count on FCI to know your application and have proven solutions that will save you time and expense. From off-the-shelf products to custom engineered products and systems, FCI has the selection and an unequalled record of innovations to supply the optimal product for your application. From single-point to multi-point flow meters, from basic air flow to complex mixed, variable flare gas compositions, from water to the harshest of chemicals, FCI products will deliver superior accuracy, repeatability and long-term reliability at the lowest installed cost.

European Office • Visit FCI on the Worldwide Web • Persephonestraat 3-01, 5047 TT Tilburg, The Netherlands Phone: 31-13-5159989 • Fax: 31-13-5799036 www.fluidcomponents.com Headquarters • 1755 La Costa Meadows Drive, San Marcos, CA 92078 Phone: 760-744-6950 800-854-1993 • Fax: 760-736-6250
0107-1k Doc No: 02MKO11528 4
