Förderanlagen Magdeburg Förderanlagen Magdeburg

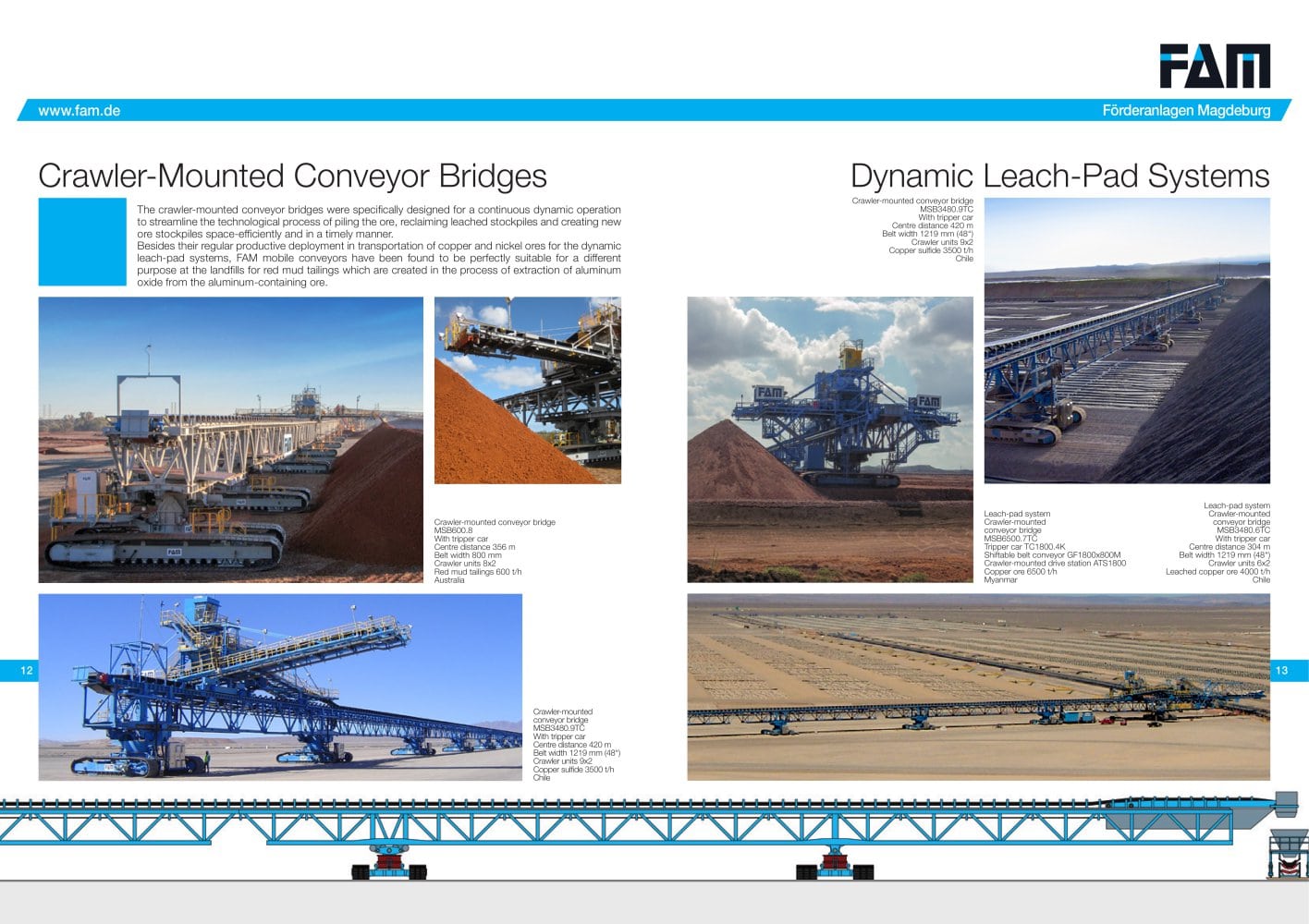

Opencast Mining Systems - 7253 Dynamic Leach-pad Systems

Opencast mine Chilebucket wheel excavator SR300R3 driving power of bucket wheel 250 kW cutting height 12 m excavation depth 0,5 m number of buckets 9 leached copper ore 2500 m³/h Opencast mine Chileconveyor bridge on crawlers FBR420.9x2centre distance 420 mbelt width (48‘‘) 1219 mmcrawler units 9x2copper sulfide 3500 t/h Opencast mine Chileconveying systemconveyor bridge on crawlers FBR304.6x2; CV-013tripper car TC1219; CV-014conveyor bridge on crawlers FBR420.9x2; CV-015tripper car TC1219; CV-016long distance conveyor GF1200x2047; CV-012 long distance conveyor GF1200x1660; CV-011copper oxide, copper sulfide 3500 t/h 7
