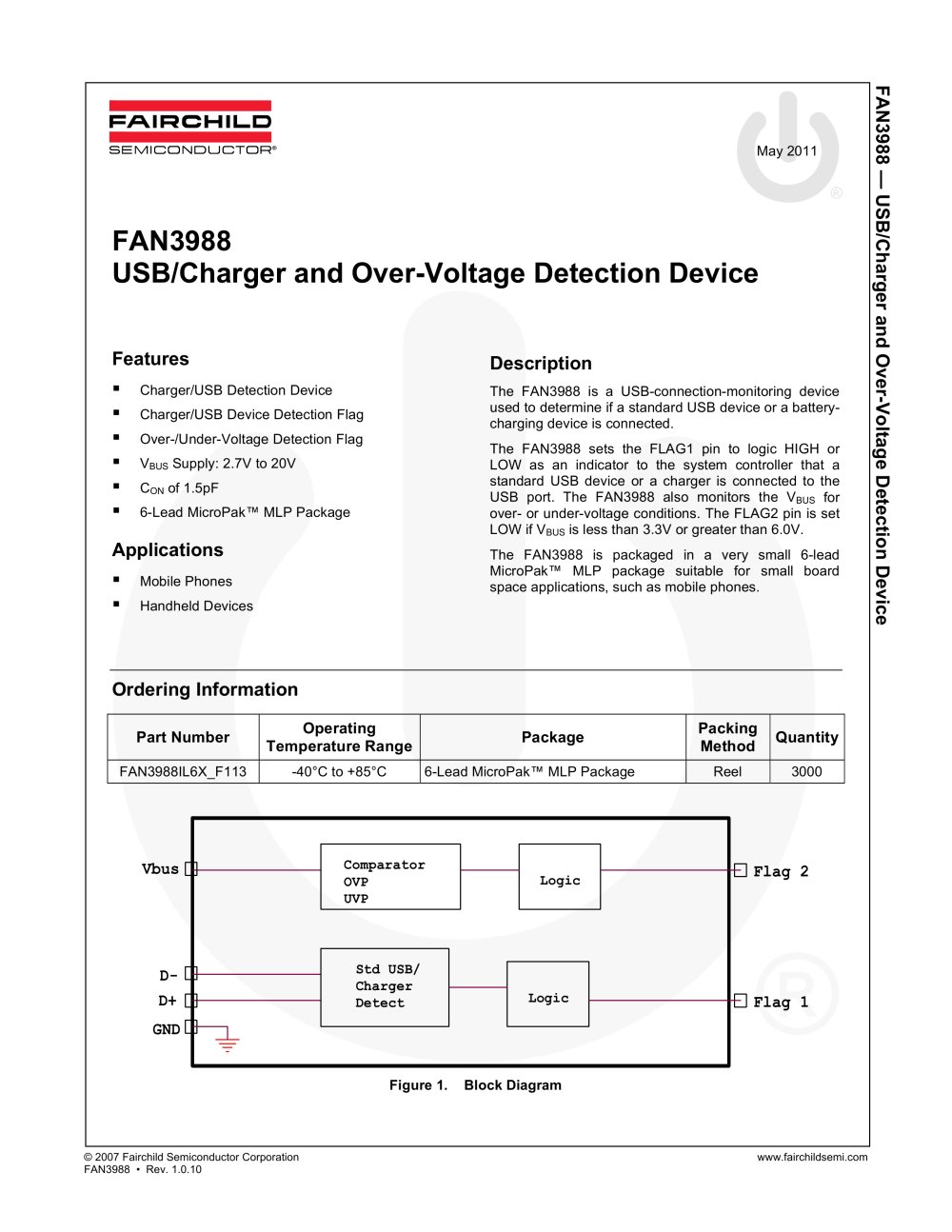

May 2011 © 2007 Fairchild Semiconductor Corporation www.fairchildsemi.com FAN3988 • Rev. 1.0.10 FAN3988 — USB/Charger and Over-Voltage Detection Device FAN3988 USB/Charger and Over-Voltage Detection Device Features „X Charger/USB Detection Device „X Charger/USB Device Detection Flag „X Over-/Under-Voltage Detection Flag „X VBUS Supply: 2.7V to 20V „X CON of 1.5pF „X 6-Lead MicroPak™ MLP Package Applications „X Mobile Phones „X Handheld Devices Description The FAN3988 is a USB-connection-monitoring device used to determine if a standard USB device or a batterycharging device is connected. The FAN3988 sets the FLAG1 pin to logic HIGH or LOW as an indicator to the system controller that a standard USB device or a charger is connected to the USB port. The FAN3988 also monitors the VBUS for over- or under-voltage conditions. The FLAG2 pin is set LOW if VBUS is less than 3.3V or greater than 6.0V. The FAN3988 is packaged in a very small 6-lead MicroPak™ MLP package suitable for small board space applications, such as mobile phones. Ordering Information Part Number Operating Temperature Range Package Packing Method Quantity FAN3988IL6X_F113 -40°C to +85°C 6-Lead MicroPak™ MLP Package Reel 3000 Figure 1. Block Diagram Flag 1 Comparator OVP UVP Flag 2 DVbus Logic GND Std USB/ Charger D+ Detect Logic
