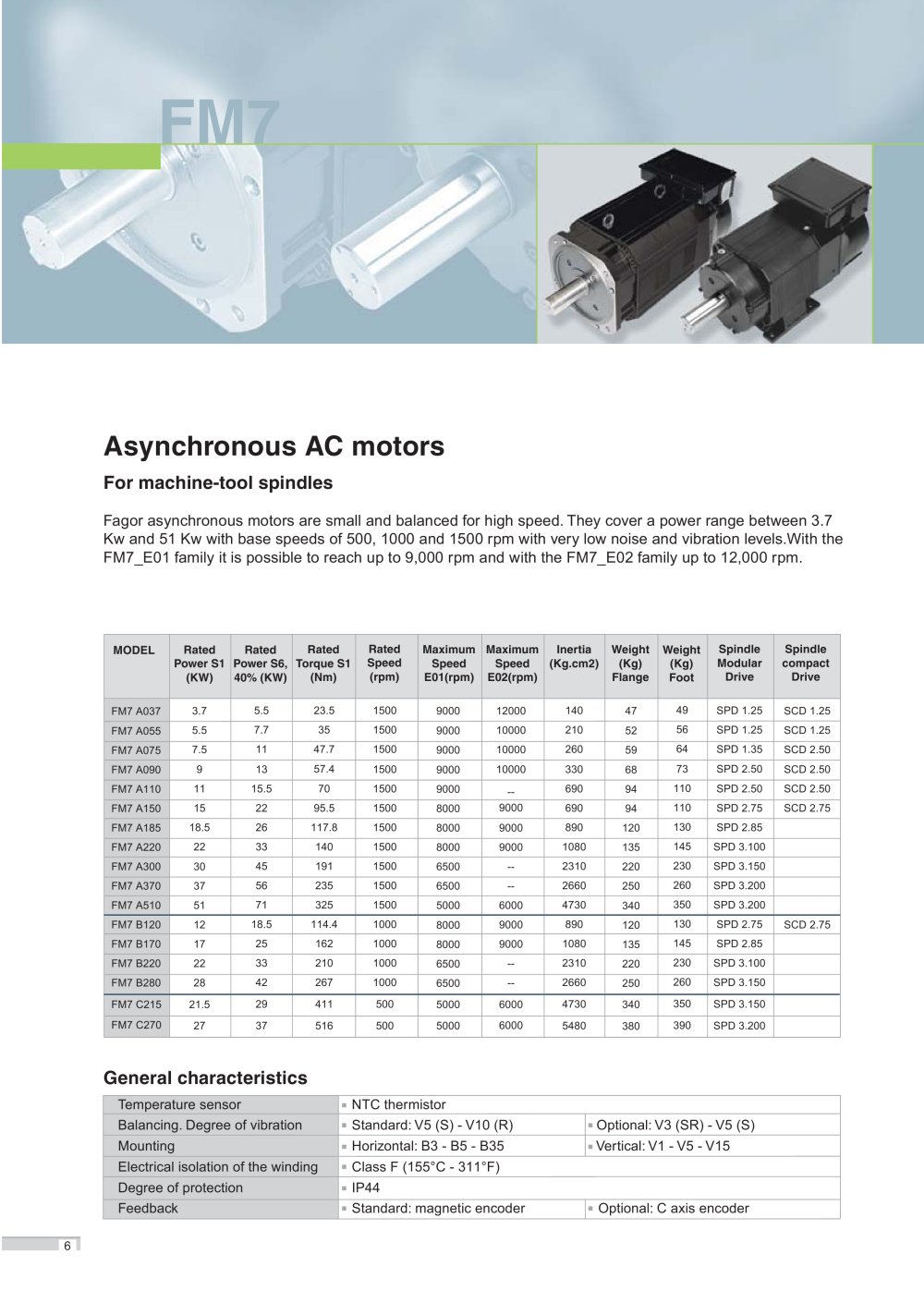

| | | Fagor asynchronous motors are small and balanced for high speed. They cover a power range between 3.7 Kw and 51 Kw with base speeds of 500, 1000 and 1500 rpm with very low noise and vibration levels.With the FM7_E01 family it is possible to reach up to 9,000 rpm and with the FM7_E02 family up to 12,000 rpm. | | |
| | | |
| | | | | | | | | | | | | | | | | | | | MODEL | Rated Power S1 (KW) | Rated Power S6, 40% (KW) | Rated Torque S1 (Nm) | Rated Speed (rpm) | Maximum Speed E01(rpm) | Maximum Speed E02(rpm) | Inertia (Kg.cm2) | Weight (Kg) Flange | Weight (Kg) Foot | Spindle Modular Drive | Spindle compact Drive | | | | FM7 A037 | 3.7 | 5.5 | 23.5 | 1500 | 9000 | 12000 | 140 | 47 | 49 | SPD1.25 | SCD1.25 | | | | FM7 A055 | 5.5 | 7.7 | 35 | 1500 | 9000 | 10000 | 210 | 52 | 56 | SPD1.25 | SCD1.25 | | | | FM7 A075 | 7.5 | 11 | 47.7 | 1500 | 9000 | 10000 | 260 | 59 | 64 | SPD1.35 | SCD2.50 | | | | FM7 A090 | 9 | 13 | 57.4 | 1500 | 9000 | 10000 | 330 | 68 | 73 | SPD2.50 | SCD2.50 | | | | FM7 A110 | 11 | 15.5 | 70 | 1500 | 9000 | - | 690 | 94 | 110 | SPD2.50 | SCD2.50 | | | | FM7 A150 | 15 | 22 | 95.5 | 1500 | 8000 | 9000 | 690 | 94 | 110 | SPD2.75 | SCD2.75 | | | | FM7 A185 | 18.5 | 26 | 117.8 | 1500 | 8000 | 9000 | 890 | 120 | 130 | SPD2.85 | | | | | FM7 A220 | 22 | 33 | 140 | 1500 | 8000 | 9000 | 1080 | 135 | 145 | SPD3.100 | | | | | FM7 A300 | 30 | 45 | 191 | 1500 | 6500 | -- | 2310 | 220 | 230 | SPD3.150 | | | | | FM7 A370 | 37 | 56 | 235 | 1500 | 6500 | -- | 2660 | 250 | 260 | SPD3.200 | | | | | FM7A510 | 51 | 71 | 325 | 1500 | 5000 | 6000 | 4730 | 340 | 350 | SPD3.200 | | | | | FM7 B120 | 12 | 18.5 | 114.4 | 1000 | 8000 | 9000 | 890 | 120 | 130 | SPD2.75 | SCD2.75 | | | | FM7 B170 | 17 | 25 | 162 | 1000 | 8000 | 9000 | 1080 | 135 | 145 | SPD2.85 | | | | | FM7 B220 | 22 | 33 | 210 | 1000 | 6500 | -- | 2310 | 220 | 230 | SPD3.100 | | | | | FM7 B280 | 28 | 42 | 267 | 1000 | 6500 | -- | 2660 | 250 | 260 | SPD3.150 | | | | | FM7 C215 | 21.5 | 29 | 411 | 500 | 5000 | 6000 | 4730 | 340 | 350 | SPD3.150 | | | | | FM7 C270 | 27 | 37 | 516 | 500 | 5000 | 6000 | 5480 | 380 | 390 | SPD3.200 | | | | | | | | | | | | | | | | | | | | |
| | | |
| | | General characteristics | | |
| | | |
| | | | | | | | | | | | ■ NTC thermistor | | | | Balancing. Degree ofvibration | ■ Standard: V5 (S)-V10(R) | ■Optional:V3 (SR)-V5 (S) | | | | Mounting | ■ Horizontal: B3-B5- B35 | ■ Vertical: V1 -V5-V15 | | | | | ■ ClassF(155°C-311°F) | | | | Degree of protection | IP44 | | | | Feedback | ■ Standard: magnetic encoder ■ Optional: C axis encoder | | | | | | | | | | |
| | | |
| | | 6~ | | |
| | | |
| | | | | | | | | | | | |
