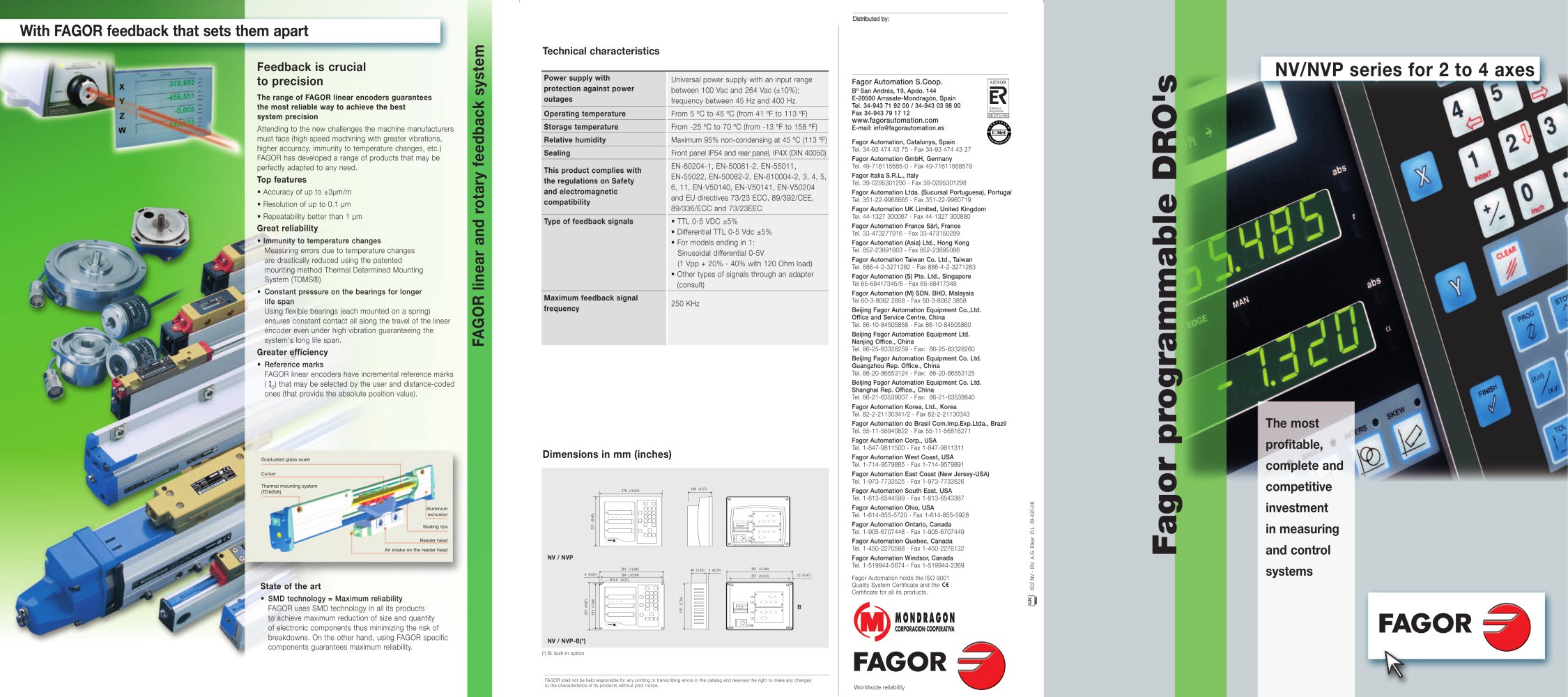

With FAGOR feedback that sets them apart
Technical characteristics
Feedback is crucial to precision
The range of FAGOR linear encoders guarantees the most reliable way to achieve the best
system precision
Attending to the new challenges the machine manufacturers must face (high speed machining with greater vibrations, higher accuracy, immunity to temperature changes, etc.) FAGOR has developed a range of products that may be
perfectly adapted to any need. Top features
• Accuracy of up to ±3um/m
• Resolution of up to 0.1 um
• Repeatability better than 1 um Great reliability
• Immunity to temperature changes
Measuring errors due to temperature changes
are drastically reduced using the patented
mounting method Thermal Determined Mounting System (TDMS®)
• Constant pressure on the industrial bearings for longer life span
Using flexible bearings (each mounted on a spring)
ensures constant contact all along the travel of the linear encoder even under high vibration guaranteeing the
system's long life span.
Greater efficiency
• Reference marks
FAGOR linear encoders have incremental reference marks ( Io) that may be selected by the user and distance-coded
ones (that provide the absolute position value).
Power supply with protection against power
outages
Universal power supply with an input range between 100 Vac and 264 Vac (±10%); frequency between 45 Hz and 400 Hz.
Operating temperature
From 5 °C to 45 °C (from 41 °F to 113 °F)
Storage temperature
From -25 °C to 70 °C (from -13 °F to 158 °F)
Relative humidity
Maximum 95% non-condensing at 45 °C (113 °F)
Sealing
Front panel IP54 and rear panel, IP4X (DIN 40050)
This product complies with the regulations on Safety and electromagnetic compatibility
EN-60204-1, EN-50081-2, EN-55011, EN-55022, EN-50082-2, EN-610004-2, 3, 4, 5,
6, 11, EN-V50140, EN-V50141, EN-V50204
and EU directives 73/23 ECC, 89/392/CEE, 89/336/ECC and 73/23EEC
Type of feedback signals
• TTL 0-5 VDC ±5%
• Differential TTL 0-5 Vdc ±5%
• For models ending in 1: Sinusoidal differential 0-5V
(1 Vpp + 20% - 40% with 120 Ohm load)
• Other types of signals through an adapter (consult)
Maximum feedback signal frequency
250 KHz
Fagor Automation S.Coop.
Ë?
B° San Andres, 19, Apdo. 144 E-20500 Arrasate-Mondragön, Spain
Tel. 34-943 71 92 00 / 34-943 03 98 00 Fax 34-943 7917 12 www.fagorautomation.com E-mail: info@fagorautomation.es
Fagor Automation, Catalunya, Spain Tel. 34-93 474 43 75 - Fax 34-93 474 43 27 Fagor Automation GmbH, Germany Tel. 49-716115685-0 - Fax 49-71611568579 Fagor Italia S.R.L., Italy Tel. 39-0295301290 - Fax 39-0295301298 Fagor Automation Ltda. (Sucursal Portuguesa), Portugal
Tel. 351-22-9968865 - Fax 351-22-9960719
Fagor Automation UK Limited, United Kingdom
Tel. 44-1327 300067 - Fax 44-1327 300880
Fagor Automation France Särl, France
Tel. 33-473277916 - Fax 33-473150289
Fagor Automation (Asia) Ltd., Hong Kong
Tel. 852-23891663 - Fax 852-23895086
Fagor Automation Taiwan Co. Ltd., Taiwan
Tel. 886-4-2-3271282 - Fax 886-4-2-3271283
Fagor Automation (S) Pte. Ltd., Singapore
Tel 65-68417345/6 - Fax 65-68417348 Fagor Automation (M) SDN. BHD, Malaysia
Tel 60-3-8062 2858 - Fax 60-3-8062 3858
Beijing Fagor Automation Equipment Co.,Ltd. Office and Service Centre, China
Tel. 86-10-84505858 - Fax 86-10-84505860
Beijing Fagor Automation Equipment Ltd. Nanjing Office., China
Tel. 86-25-83328259 - Fax: 86-25-83328260
Beijing Fagor Automation Equipment Co. Ltd.
Guangzhou Rep. Office., China
Tel. 86-20-86553124 - Fax: 86-20-86553125
Beijing Fagor Automation Equipment Co. Ltd. Shanghai Rep. Office., China
Tel. 86-21-63539007 - Fax: 86-21-63538840
Fagor Automation Korea, Ltd., Korea
Tel. 82-2-21130341/2 - Fax 82-2-21130343
Fagor Automation do Brasil Com.Imp.Exp.Ltda., Brazil
Tel. 55-11-56940822 - Fax 55-11-56816271
Fagor Automation Corp., USA
Tel. 1-847-9811500 - Fax 1-847-9811311
Fagor Automation West Coast, USA
Tel. 1-714-9579885 - Fax 1-714-9579891
Fagor Automation East Coast (New Jersey-USA)
Tel. 1-973-7733525 - Fax 1-973-7733526
Fagor Automation South East, USA
Tel. 1-813-6544599 - Fax 1-813-6543387
Fagor Automation Ohio, USA
Tel. 1-614-855-5720 - Fax 1-614-855-5928
Fagor Automation Ontario, Canada
Tel. 1-905-6707448 - Fax 1-905-6707449
Fagor Automation Quebec, Canada
Tel. 1-450-2270588 - Fax 1-450-2276132
Fagor Automation Windsor, Canada
Tel. 1-519944-5674 - Fax 1-519944-2369
Fagor Automation holds the ISO 9001 Quality System Certificate and the C€ Certificate for all its products.
Dimensions in mm (inches)
Graduated glass scale
106 (4,17)
270 (10,63)
□ c
CDC
□ □□□ □□C
CCCC
□ C
□ □
□□c
•grr •
extrusion
Sealing lips
Reader head
Air intake on the reader head
NV / NVP
281 (11,06;
281 (11,06)
86 (3,39)
5 (0,20)
6 (0,24)
269 (10,59)
12 (0,47)
257 (10,12)
0 5,8 (0,23)
State of the art
• SMD technology = Maximum reliability
FAGOR uses SMD technology in all its products
to achieve maximum reduction of size and quantity of electronic components thus minimizing the risk of
breakdowns. On the other hand, using FAGOR specific components guarantees maximum reliability.
□ c □oc
□ CDC □OC
□ □□□
□ c
□ □ □oc
dZ3
B
MONDRAGON
CORPORACION COOPERATIVA
NV / NVP-B(*)
(*) B: built-in optior
FAGOR
FAGOR shall not be held responsible for any printing or transcribing errors in the catalog and reserves the right to make any changes to the characteristics of its products without prior notice.
