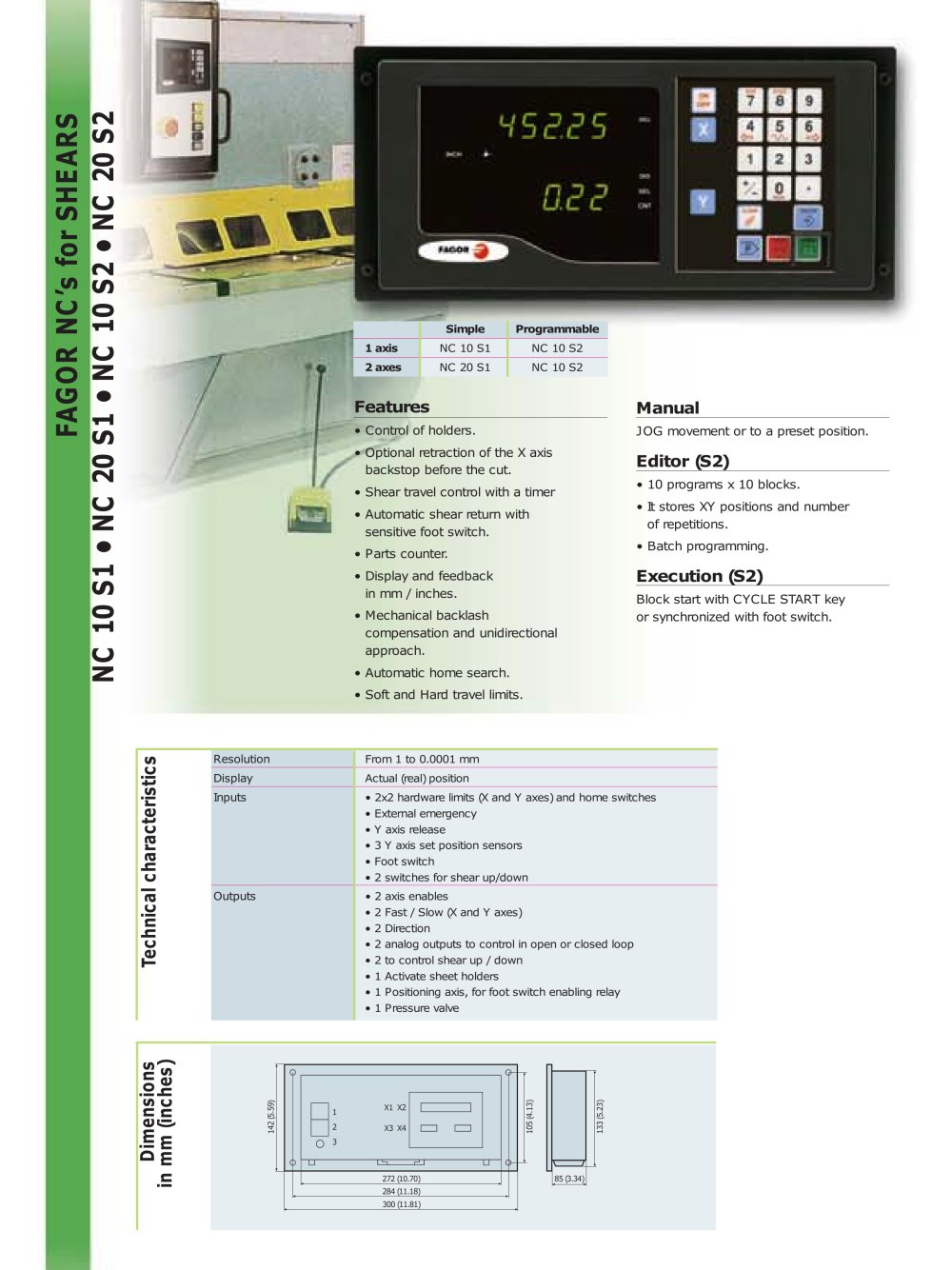

Features Manual

FAGOR NC’s for SHEARSNC 10 S1 ? NC 20 S1 ? NC 10 S2 ? NC 20 S2

? Control of holders.? Optional retraction of the X axisbackstop before the cut.? Shear travel control with a timer? Automatic shear return withsensitive foot switch.? Parts industrial counter.? Display and feedbackin mm / inches.? Mechanical backlashcompensation and unidirectional approach.? Automatic home search.? Soft and Hard travel limits. JOG movement or to a preset position.

Editor (S2)

? 10 programs x 10 blocks.? It stores XY positions and number of repetitions.? Batch programming.

Execution (S2)

Block start with CYCLE START key or synchronized with foot switch.

Resolution From 1 to 0.0001 mm Display Actual (real) position Inputs ? 2x2 hardware limits (X and Y axes) and home switches? External emergency ? Y axis release ? 3 Y axis set industrial position sensors ? Foot switch ? 2 switches for shear up/down Outputs ? 2 axis enables? 2 Fast / Slow (X and Y axes) ? 2 Direction ? 2 analog outputs to control in open or closed loop ? 2 to control shear up / down ? 1 Activate sheet holders ? 1 Positioning axis, for foot switch enabling relay ? 1 Pressure valve
Technical characteristics 12 3X1 X2X3 X4 133 (5.23) 105 (4.13) 142 (5.59) Dimensionsin mm (inches) 272 (10.70) 85 (3.34) 284 (11.18)300 (11.81)
