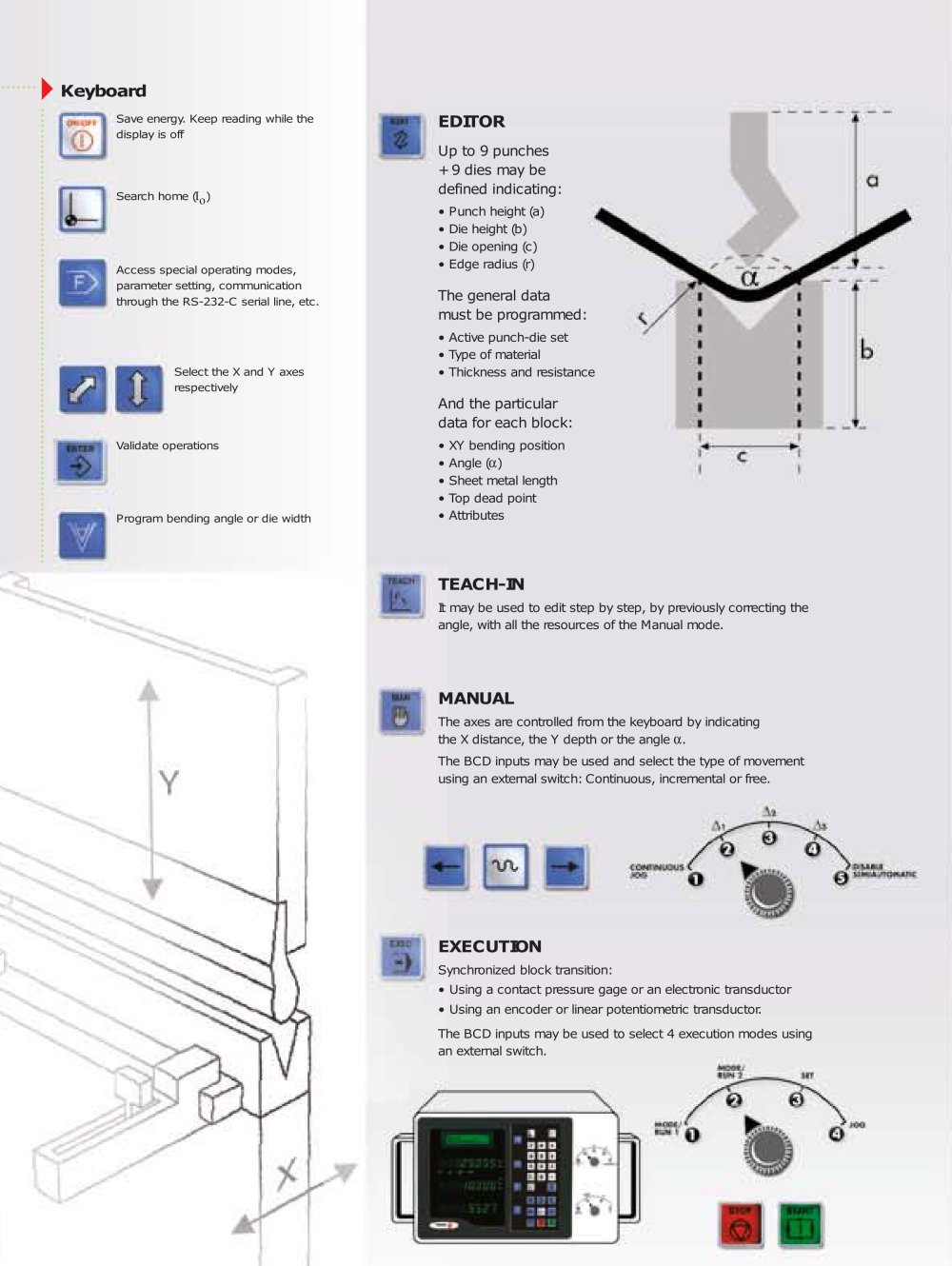

Keyboard EDITOR

Up to 9 industrial punches+ 9 dies may be defined indicating:

Io )Access special operating modes,parameter setting, communication through the RS-232-C serial line, etc.Select the X and Y axesrespectivelyValidate operations ? Punch height (a)? Die height (b) ? Die opening (c)? Edge radius (r)

The general datamust be programmed:

? Active punch-die set? Type of material ? Thickness and resistance

And the particulardata for each block:

? XY bending position? Angle ( α )? Sheet metal length? Top dead point? Attributes
Program bending angle or die width Save energy. Keep reading while thedisplay is offSearch home (

TEACH-IN

It may be used to edit step by step, by previously correcting the angle, with all the resources of the Manual mode.

MANUAL

α .The BCD inputs may be used and select the type of movementusing an external switch: Continuous, incremental or free. The axes are controlled from the keyboard by indicating the X distance, the Y depth or the angle

EXECUTION

Synchronized block transition:?Using a contact pressure gage or an electronic transductor?Using an encoder or linear potentiometric transductor.The BCD inputs may be used to select 4 execution modes using an external switch.
