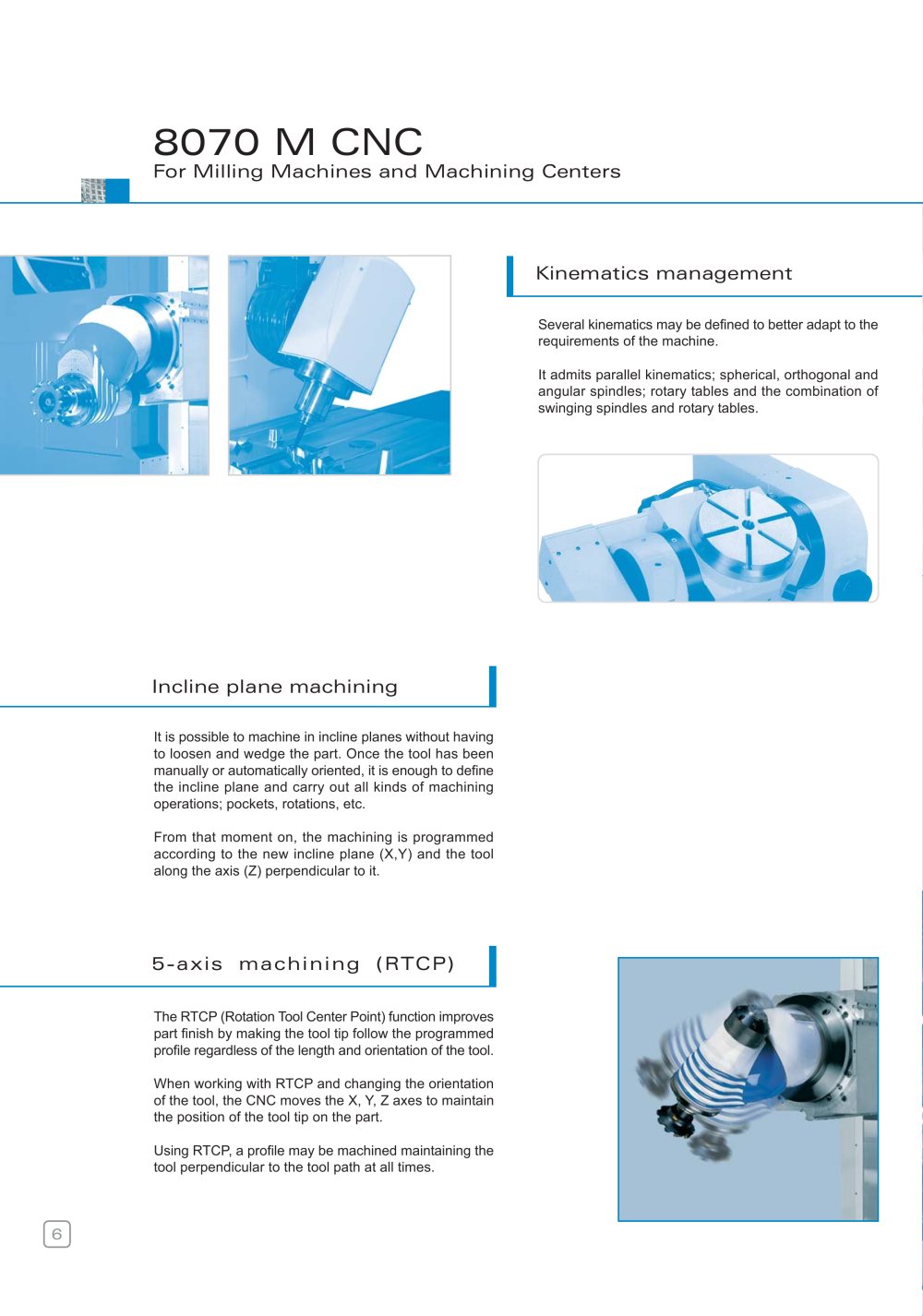

8070 M CNC

For Milling machines and Industrial machining centers

Kinematics management

Several kinematics may be defined to better adapt to the requirements of the machine.

It admits parallel kinematics; spherical, orthogonal and angular spindles; rotary tables and the combination of swinging spindles and rotary tables.

Incline plane machining

It is possible to machine in incline planes without having to loosen and wedge the part. Once the tool has been manually or automatically oriented, it is enough to define the incline plane and carry out all kinds of machining operations; pockets, rotations, etc.

From that moment on, the machining is programmed according to the new incline plane (X,Y) and the tool along the axis (Z) perpendicular to it.

5-axis machining (RTCP)

The RTCP (Rotation Tool Center Point) function improves part finish by making the tool tip follow the programmed profile regardless of the length and orientation of the tool.

When working with RTCP and changing the orientation of the tool, the CNC moves the X, Y, Z axes to maintain the position of the tool tip on the part.

Using RTCP, a profile may be machined maintaining the tool perpendicular to the tool path at all times.
