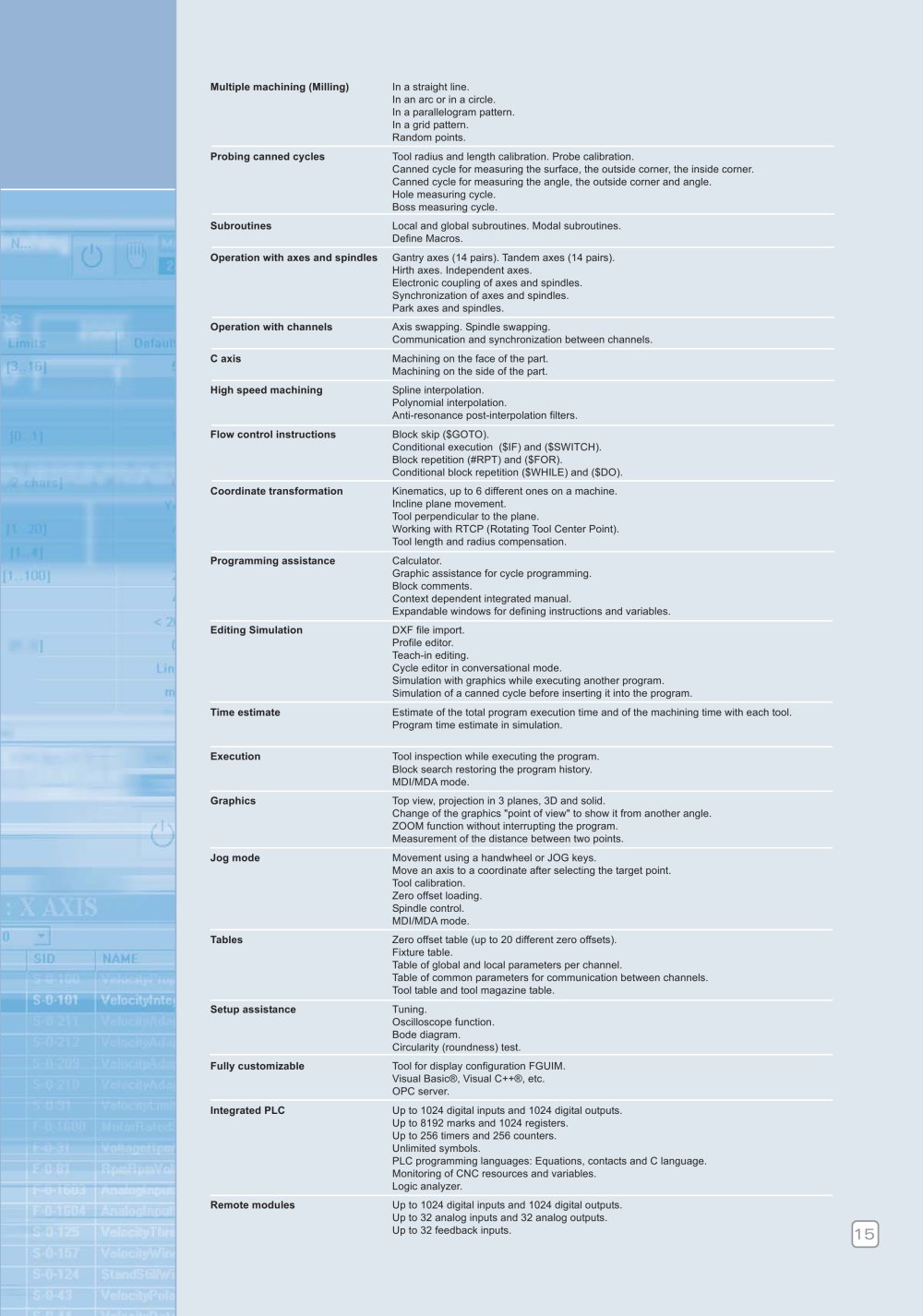

Multiple machining (Milling)
In a straight line.
In an arc or in a circle.
In a parallelogram pattern.
In a grid pattern.
Random points.
Probing canned cycles
Tool radius and length calibration. Probe calibration.
Canned cycle for measuring the surface, the outside corner, the inside corner.
Canned cycle for measuring the angle, the outside corner andangle.
Hole measuring cycle.
Boss measuring cycle.
Subroutines
Local and global subroutines. Modal subroutines.
Define Macros.
Operation with axes and spindles
Gantry axes (14 pairs). Tandem axes (14 pairs).
Hirth axes. Independent axes.
Electronic coupling ofaxes and spindles.
Synchronization ofaxes and spindles.
Park axes and spindles.
Operation with channels
Axis swapping. Spindle swapping.
Communication and synchronization between channels.
C axis
Machining on the face ofthe part.
Machining on the side ofthe part.
High speed machining
Spline interpolation.
Polynomial interpolation.
Anti-resonance post-interpolation industrial filters.
Flow control instructions
Blockskip ($GOTO).
Conditional execution ($IF)and ($SWITCH).
Block repetition (#RPT) and ($FOR).
Conditional block repetition ($WHILE) and ($DO).
Coordinate transformation
Kinematics, upto6 different ones on a machine.
Incline plane movement.
Tool perpendicularto the plane.
Working with RTCP (Rotating Tool Center Point).
Tool length and radius compensation.
Programming assistance
Calculator.
Graphic assistance forcycle programming.
Block comments.
Context dependent integrated manual.
Expandable windows for defining instructions and variables.
Editing Simulation
DXFfile import.
Profile editor.
Teach-in editing.
Cycle editor in conversational mode.
Simulation with graphics while executing another program.
Simulation ofa canned cycle before inserting it into the program.
Time estimate
Estimate ofthe total program execution time and ofthe machining time with each tool.
Program time estimate in simulation.
Execution
Tool inspection while executing the program.
Block search restoring the program history.
MDI/MDA mode.
Graphics
Top view, projection in 3 planes, 3D and solid.
Change ofthe graphics "point ofview" to show it from another angle.
ZOOM function without interrupting the program.
Measurement ofthe distance between two points.
Jog mode
Movement using a handwheel or JOG keys.
Move an axis to a coordinate after selecting the target point.
Tool calibration.
Zero offset loading.
Spindle control.
MDI/MDA mode.
Tables
Zero offset table (up to 20 different zero offsets).
Fixture table.
Table ofglobal and local parameters perchannel.
Table of common parameters for communication between channels.
Tool table and tool magazine table.
Setup assistance
Tuning.
Oscilloscope function.
Bode diagram.
Circularity (roundness) test.
Fully customizable
Tool for display configuration FGUIM.
Visual Basic®, Visual C++®, etc.
OPC server.
Integrated PLC
Up to 1024 digital inputs and 1024 digital outputs.
Up to 8192 marks and 1024 registers.
Up to 256 timers and 256 counters.
Unlimited symbols.
PLC programming languages: Equations, contacts and C language.
Monitoring ofCNC resources and variables.
Remote modules
Up to 1024 digital inputs and 1024 digital outputs.
Up to 32 analog inputs and 32 analog outputs.
Up to 32 feedback inputs.
