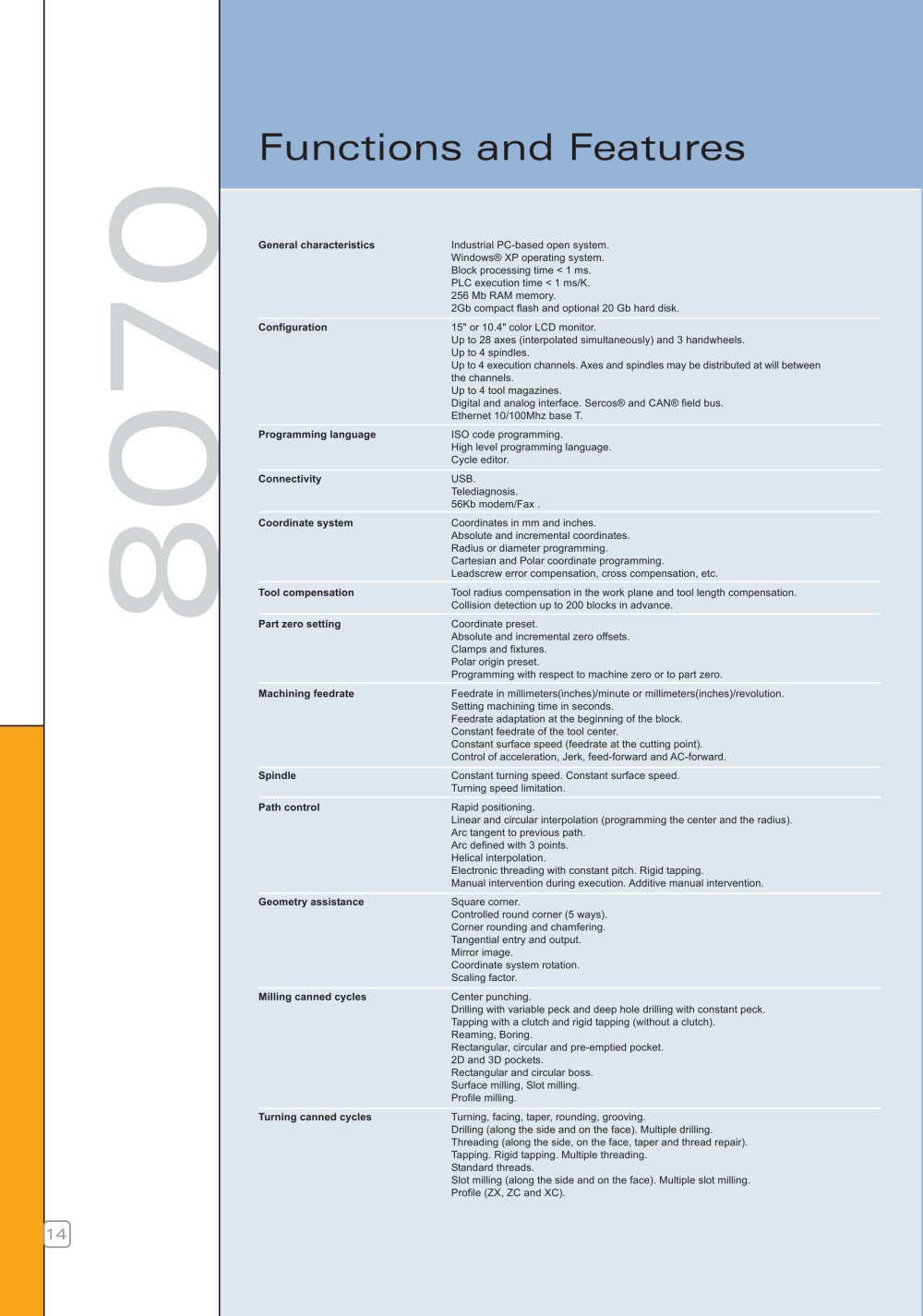

Functions and Features
General characteristics
Industrial PC-based open system. Windows® XP operating system. Block processing time < 1 ms. PLC execution time < 1 ms/K. 256 Mb RAM memory.
2Gb compact flash and optional 20 Gb hard disk.
Configuration
15"or 10.4" color Industrial lcd monitor.
Up to 28 axes (interpolated simultaneously) and 3 handwheels. Up to 4 spindles.
Up to 4 execution channels. Axes and spindles may be distributed at will between
the channels.
Up to 4 tool magazines.
Digital and analog interface. Sercos® and CAN® field bus. Ethernet 10/100Mhz base T
Programming language
ISO code programming.
High level programming language.
Cycle editor.
Connectivity
USB.
Telediagnosis. 56Kb modem/Fax.
Coordinate system
Coordinates in mm and inches.
Absolute and incremental coordinates.
Radius or diameter programming.
Cartesian and Polarcoordinate programming.
Leadscrew error compensation, cross compensation, etc.
Tool compensation
Tool radius compensation in the work plane and tool length compensation. Collision detection upto 200 blocks in advance.
Part zero setting
Coordinate preset.
Absolute and incremental zero offsets. Clamps and fixtures. Polar origin preset.
Programming with respect to machine zero orto part zero.
Machining feedrate
Feedrate in millimeters(inches)/minute ormillimeters(inches)/revolution.
Setting machining time in seconds.
Feedrate adaptation atthe beginning ofthe block.
Constant feedrate ofthe tool center.
Constant surface speed (feedrate at the cutting point).
Control ofacceleration, Jerk, feed-forward and AC-forward.
Spindle
Constant turning speed. Constant surface speed. Turning speed limitation.
Path control
Rapid positioning.
Linearand circular interpolation (programming the center and the radius). Arctangent to previous path. Arc defined with 3 points. Helical interpolation.
Electronicthreading with constant pitch. Rigid tapping.
Manual intervention during execution. Additive manual intervention.
Geometry assistance
Square corner.
Controlled round corner (5 ways). Corner rounding and chamfering. Tangential entry and output. Mirror image.
Coordinate system rotation. Scaling factor.
Milling canned cycles
Center punching.
Drilling with variable peck and deep hole drilling with constant peck. Tapping with a clutch and rigid tapping (without a clutch). Reaming, Boring.
Rectangular, circularand pre-emptied pocket. 2D and 3D pockets. Rectangular and circular boss. Surface milling, Slot milling. Profile milling.
Turning canned cycles
Turning, facing, taper, rounding, grooving.
Drilling (along the side and on the face). Multiple drilling.
Threading (along the side, on the face, taper and thread repair).
Tapping. Rigid tapping. Multiple threading.
Standard threads.
Slot milling (along the side and on the face). Multiple slot milling. Profile (ZX, ZC and XC).
