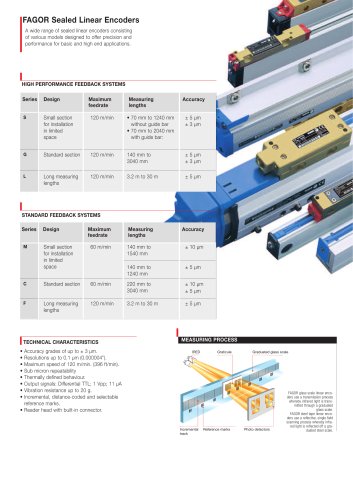

FAGOR Sealed Linear Encoders
A wide range of sealed linear encoders consisting of various models designed to offer precision and performance for basic and high end applications.
HIGH PERFORMANCE FEEDBACK SYSTEMS
Series
Design
Maximum feedrate
Measuring lengths
Accuracy
S
Small section for installation in limited space
120 m/min
• 70 mm to 1240 mm without guide bar
• 70 mm to 2040 mm with guide bar:
±5 Mm
G
Standard section
120 m/min
140 mm to 3040 mm
±5 Mm ±3 Mm
L
Long measuring lengths
120 m/min
3.2 m to 30 m
±5 Mm
,_M N
STANDARD FEEDBACK SYSTEMS
Series
Design
Maximum feedrate
Measuring lengths
Accuracy
M
Small section for installation in limited space
60 m/min
140 mm to 1540 mm
± 10 Mm
140 mm to 1240 mm
±5 Mm
C
Standard section
60 m/min
220 mm to 3040 mm
± 10 Mm ±5 Mm
F
Long measuring lengths
120 m/min
3.2 m to 30 m
± 5 Mm
MEASURING PROCESS
TECHNICAL CHARACTERISTICS
Accuracy grades of up to ±3 Mm. Resolutions up to 0.1 Mm (0.000004"). Maximum speed of 120 m/min. (396 ft/min). Sub micron repeatability Thermally defined behaviour. Output signals: Differential TTL; 1 Vpp; 11 mA Vibration resistance up to 20 g. Incremental, distance-coded and selectable reference marks.
Reader head with built-in connector.
Graduated glass scale
IRED
Graticule
FAGOR glass scale linear encoders use a transmission process whereby infrared light is transͭmitted through a graduated glass scale. FAGOR steel tape linear encoders use a reflective, single field scanning process whereby infraͭred light is reflected off a graduated steel scale.
Incremental Reference marks Photo detectors
track
