Expansion modules

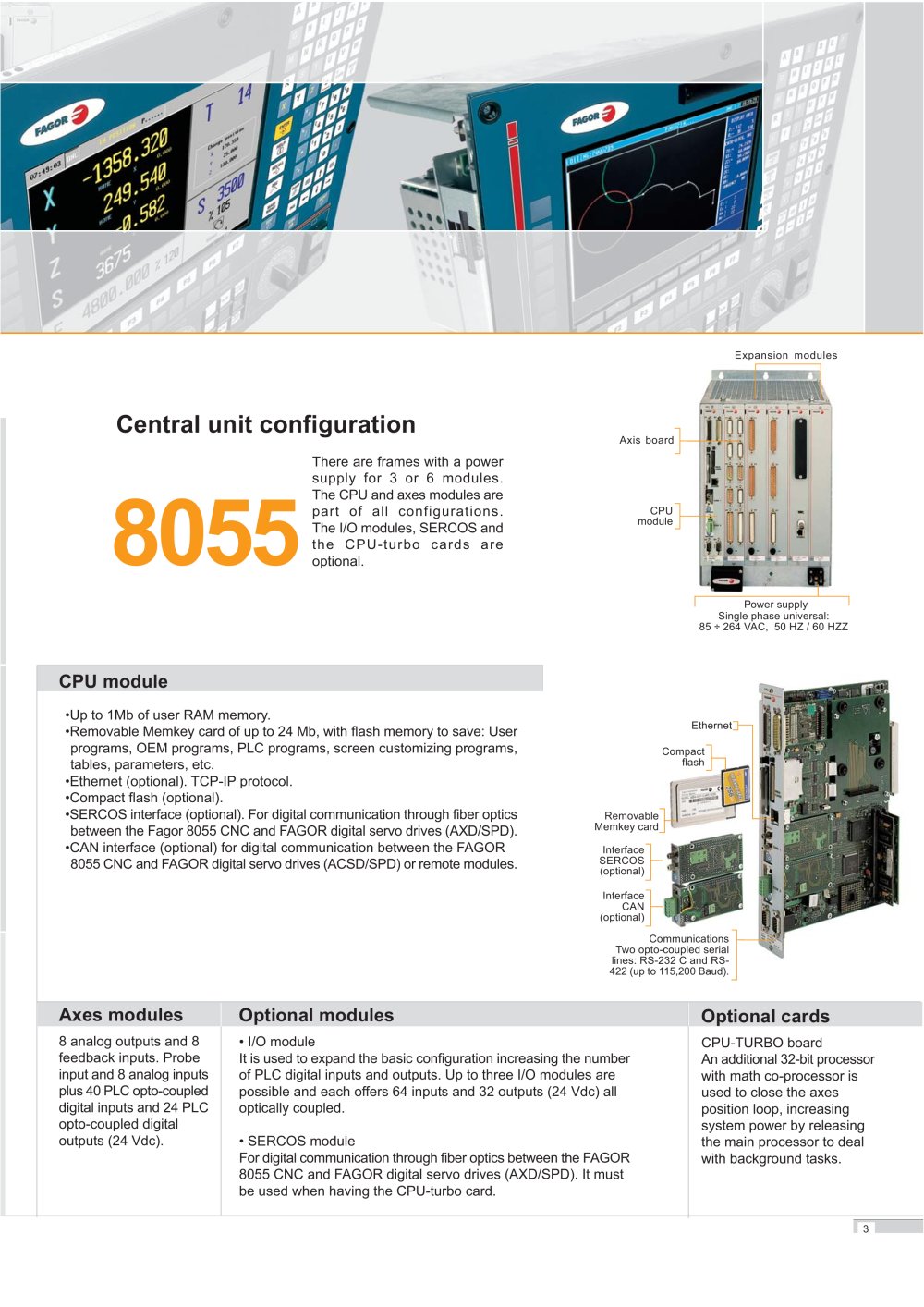

Central unit configuration

Axis board

There are frames with a power supply for 3 or 6 modules. The CPU and axes modules are part of all configurations. The I/O modules, SERCOS and the CPU-turbo cards are optional.

8055

CPU module

Power supply Single phase universal: 85 + 264VAC, 50HZ/60HZZ

CPU module

•Up to 1Mb of user RAM memory.

•Removable Memkey card of up to 24 Mb, with flash memory to save: User programs, OEM programs, PLC programs, screen customizing programs, tables, parameters, etc.

•Ethernet (optional). TCP-IP protocol.

•Compact flash (optional).

•SERCOS interface (optional). For digital communication through fiber optics between the Fagor 8055 CNC and FAGOR digital servo drives (AXD/SPD).

•CAN interface (optional) for digital communication between the FAGOR 8055 CNC and FAGOR digital servo drives (ACSD/SPD) or remote modules.

Compact flash

Removable Memkey card

Interface SERCOS \-(optional)

Interface CAN (optional)

Communications Two opto-coupled serial lines: RS-232 C and RS-422 (up to 115,200 Baud).


Axes modules Optional modules		Optional cards
8 analog outputs and 8 feedback inputs. Probe input and 8 analog inputs plus 40 PLC opto-coupled digital inputs and 24 PLC opto-coupled digital outputs (24 Vdc).	• I/O module It is used to expand the basic configuration increasing the number of PLC digital inputs and outputs. Up to three I/O modules are possible and each offers 64 inputs and 32 outputs (24 Vdc) all optically coupled. • SERCOS module For digital communication through fiber optics between the FAGOR 8055 CNC and FAGOR digital servo drives (AXD/SPD). It must be used when having the CPU-turbo card.	CPU-TURBO board An additional 32-bit processor with math co-processor is used to close the axes position loop, increasing system power by releasing the main processor to deal with background tasks.
