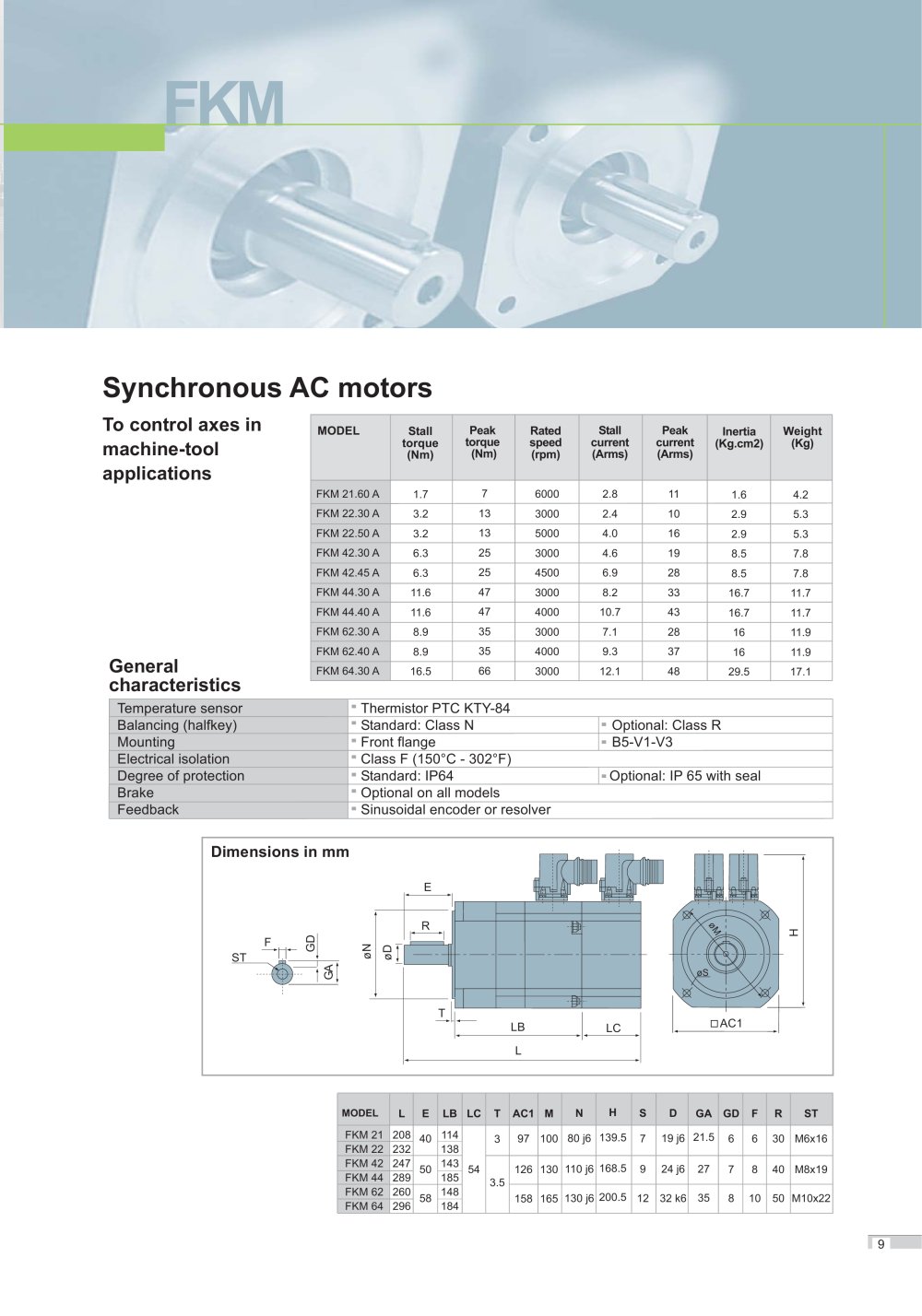

Synchronous AC motors
MODEL
Stall
Peak
Rated
Stall
Peak
Inertia
Weight
torque
torque
speed
current
current
(Kg.cm2)
(Kg)
(Nm)
(Nm)
(rpm)
(Arms)
(Arms)
FKM 21.60 A
1.7
7
6000
2.8
11
1.6
4.2
FKM 22.30 A
3.2
13
3000
2.4
10
2.9
5.3
FKM 22.50 A
3.2
13
5000
4.0
16
2.9
5.3
FKM 42.30 A
6.3
25
3000
4.6
19
8.5
7.8
FKM 42.45 A
6.3
25
4500
6.9
28
8.5
7.8
FKM 44.30 A
11.6
47
3000
8.2
33
16.7
11.7
FKM 44.40 A
11.6
47
4000
10.7
43
16.7
11.7
FKM 62.30 A
8.9
35
3000
7.1
28
16
11.9
FKM 62.40 A
8.9
35
4000
9.3
37
16
11.9
FKM 64.30 A
16.5
66
3000
12.1
48
29.5
17.1
To control axes in
machine-tool
applications
General characteristics
Temperature sensor
■ Thermistor PTC KTY-84
Balancing (halfkey)
■ Standard: Class N
■ Optional: Class R
Mounting
■ Front flange
- B5-V1-V3
Electrical isolation
■ Class F(150°C- 302°F)
Degree of protection
■ Standard: IP64
■ Optional: IP 65 with seal
Brake
■ Optional on all models
Feedback
■ Sinusoidal encoder or resolver
Dimensions in mm
Q
f
CD
ST
LB
LC
MODEL
L
E
LB
LC
T
AC1
M
N
H
s
D
GA
GD
F
R
ST
FKM 21
208 232
40
114
54
3
97
100
80 j6
139.5
7
19 j6
21.5
CD
CD
30
M6x16
FKM 22
138
FKM 42
247
50
143
3.5
126
130
110J6
168.5
9
24 j6
27
7
CO
40
M8x19
FKM 44
289
185
FKM 62
260
58
148
158
165
130 j6
200.5
12
32 k6
35
CO
10
50
M10x22
FKM 64
296
184
9
