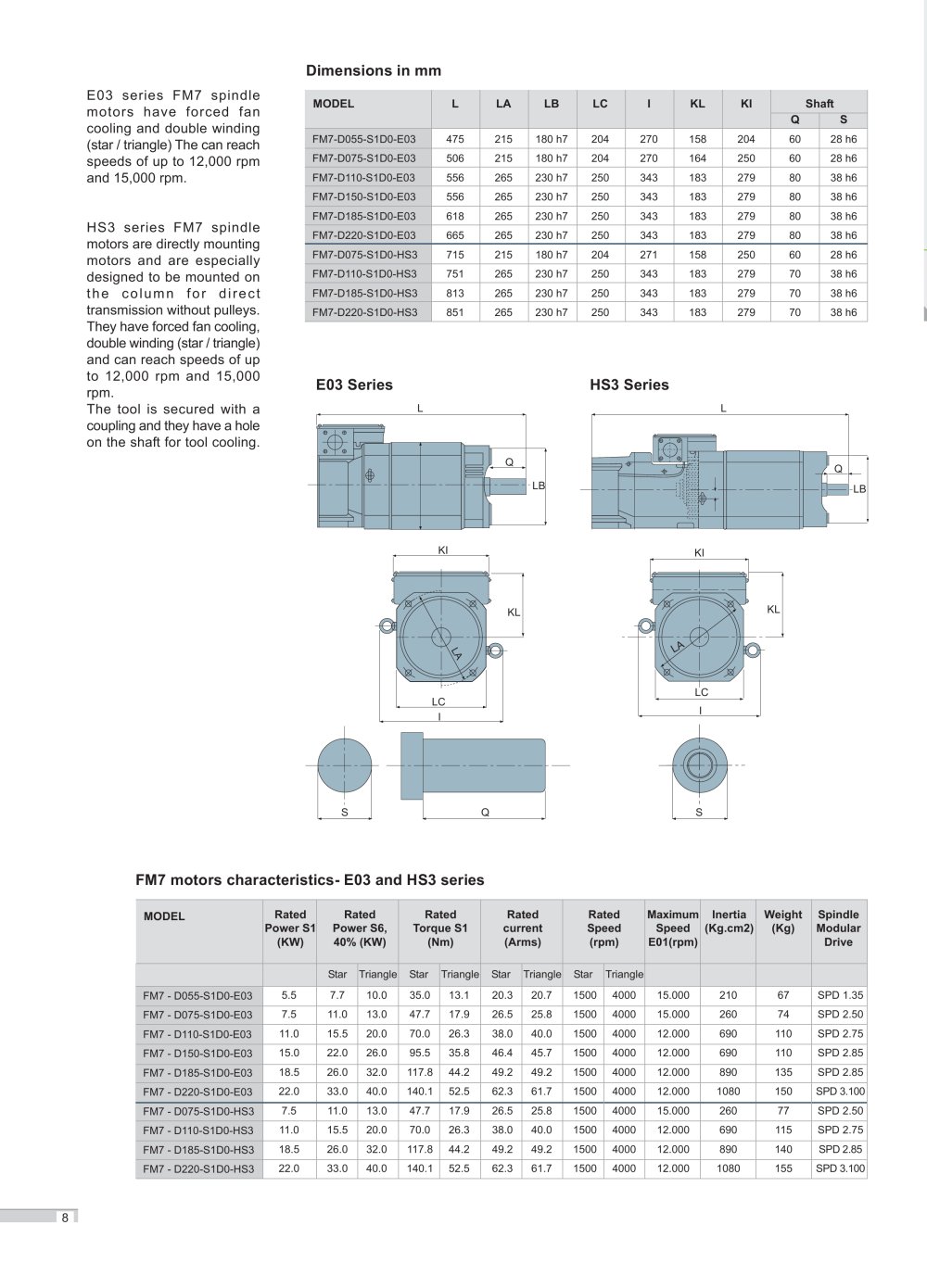

Dimensions in mm
MODEL
L
LA
LB
LC
I
KL
Kl
Shaft
Q
S
FM7-D055-S1D0-E03
475
215
180 h7
204
270
158
204
60
28 h6
FM7-D075-S1D0-E03
506
215
180 h7
204
270
164
250
60
28 h6
FM7-D110-S1D0-E03
556
265
230 h7
250
343
183
279
80
38 h6
FM7-D150-S1D0-E03
556
265
230 h7
250
343
183
279
80
38 h6
FM7-D185-S1D0-E03
618
265
230 h7
250
343
183
279
80
38 h6
FM7-D220-S1D0-E03
665
265
230 h7
250
343
183
279
80
38 h6
FM7-D075-S1D0-HS3
715
215
180 h7
204
271
158
250
60
28 h6
FM7-D110-S1D0-HS3
751
265
230 h7
250
343
183
279
70
38 h6
FM7-D185-S1D0-HS3
813
265
230 h7
250
343
183
279
70
38 h6
FM7-D220-S1D0-HS3
851
265
230 h7
250
343
183
279
70
38 h6
E03 series FM7 spindle motors have forced fan cooling and double winding (star / triangle) The can reach speeds of up to 12,000 rpm and 15,000 rpm.
HS3 series FM7 spindle motors are directly mounting motors and are especially designed to be mounted on the column for direct transmission without pulleys. They have forced fan cooling, double winding (star / triangle) and can reach speeds of up to 12,000 rpm and 15,000 rpm.
The tool is secured with a coupling and they have a hole on the shaft for tool cooling.
E03 Series
HS3 Series
J
LB
-LB
KL
FM7 motors characteristics- E03 and HS3 series
MODEL
Rated Power S1 (KW)
Rated Power S6, 40% (KW)
Rated Torque S1 (Nm)
Rated current (Arms)
Rated Speed (rpm)
Maximum
Speed E01 (rpm)
Inertia (Kg.cm2)
Weight (Kg)
Spindle Modular Drive
Star
Triangle
Star
Triangle
Star
Triangle
Star
Triangle
FM7-D055-S1D0-E03
5.5
7.7
10.0
35.0
13.1
20.3
20.7
1500
4000
15.000
210
67
SPD 1.35
FM7-D075-S1D0-E03
7.5
11.0
13.0
47.7
17.9
26.5
25.8
1500
4000
15.000
260
74
SPD2.50
FM7-D110-S1D0-E03
11.0
15.5
20.0
70.0
26.3
38.0
40.0
1500
4000
12.000
690
110
SPD 2.75
FM7-D150-S1D0-E03
15.0
22.0
26.0
95.5
35.8
46.4
45.7
1500
4000
12.000
690
110
SPD 2.85
FM7-D185-S1D0-E03
18.5
26.0
32.0
117.8
44.2
49.2
49.2
1500
4000
12.000
890
135
SPD 2.85
FM7-D220-S1D0-E03
22.0
33.0
40.0
140.1
52.5
62.3
61.7
1500
4000
12.000
1080
150
SPD 3.100
FM7-D075-S1D0-HS3
7.5
11.0
13.0
47.7
17.9
26.5
25.8
1500
4000
15.000
260
77
SPD 2.50
FM7-D110-S1D0-HS3
11.0
15.5
20.0
70.0
26.3
38.0
40.0
1500
4000
12.000
690
115
SPD 2.75
FM7-D185-S1D0-HS3
18.5
26.0
32.0
117.8
44.2
49.2
49.2
1500
4000
12.000
890
140
SPD 2.85
FM7-D220-S1D0-HS3
22.0
33.0
40.0
140.1
52.5
62.3
61.7
1500
4000
12.000
1080
155
SPD 3.100
