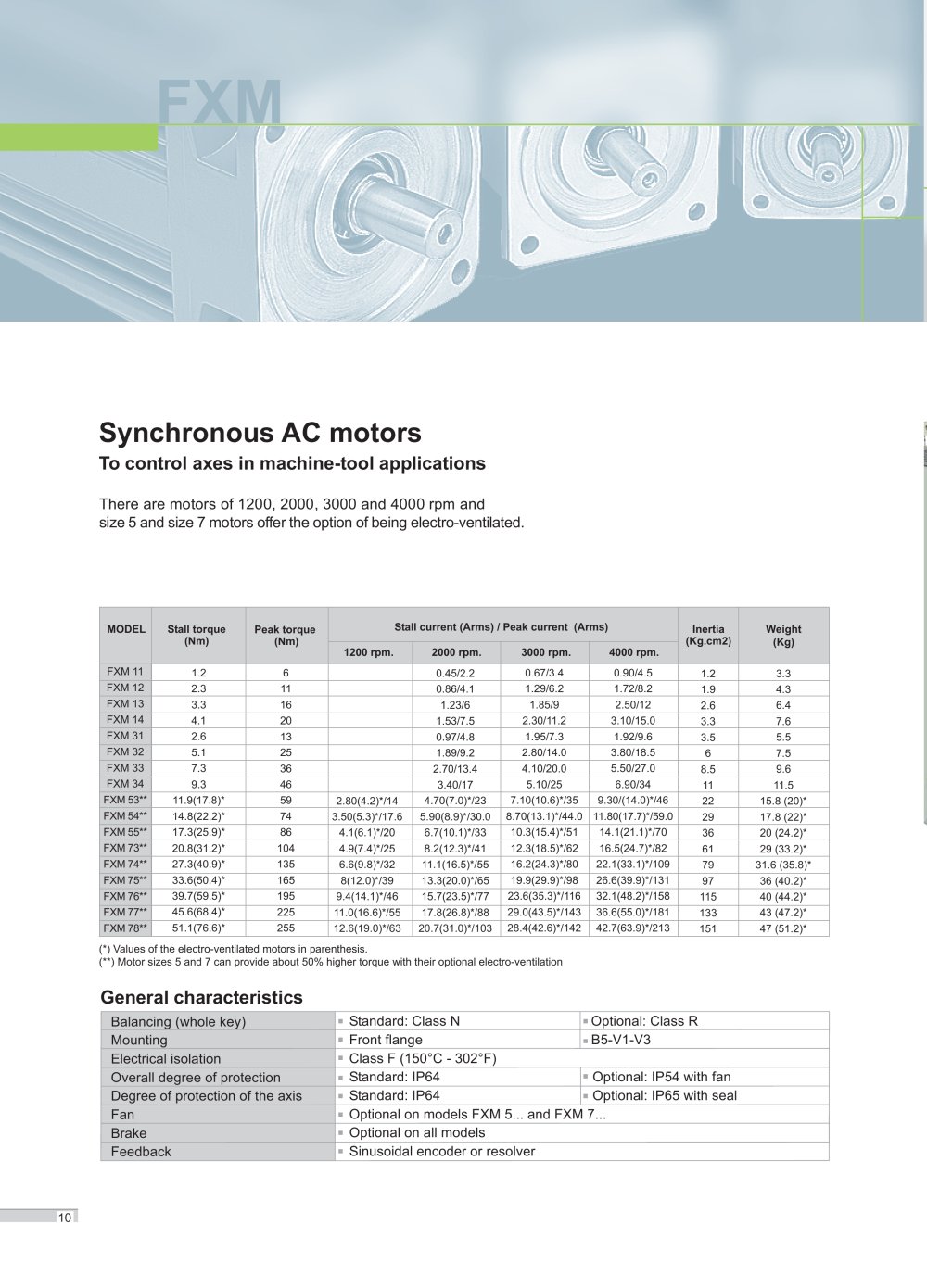

Synchronous Ac motors
To control axes in machine-tool applications
There are motors of 1200, 2000, 3000 and 4000 rpm and size 5 and size 7 motors offer the option of being electro-ventilated.
MODEL
Stall torque I Peak torque (Nm) (Nm)
Stall current (Arms) / Peak current (Arms)
Inertia (Kg.cm2)
Weight (Kg)
1200 rpm.
2000 rpm.
3000 rpm.
4000 rpm.
FXM 11
1.2
6
0.45/2.2
0.67/3.4
0.90/4.5
1.2
3.3
FXM 12
2.3
11
0.86/4.1
1.29/6.2
1.72/8.2
1.9
4.3
FXM 13
3.3
16
1.23/6
1.85/9
2.50/12
2.6
6.4
FXM 14
4.1
20
1.53/7.5
2.30/11.2
3.10/15.0
3.3
7.6
FXM 31
2.6
13
0.97/4.8
1.95/7.3
1.92/9.6
3.5
5.5
FXM 32
5.1
25
1.89/9.2
2.80/14.0
3.80/18.5
6
7.5
FXM 33
7.3
36
2.70/13.4
4.10/20.0
5.50/27.0
8.5
9.6
FXM 34
9.3
46
3.40/17
5.10/25
6.90/34
11
11.5
FXM 53™
11.9(17.8)*
59
2.80(4.2)714
4.70(7.0)723
7.10(10.6)735
9.30/(14.0)746
22
15.8 (20)*
FXM 54™
14.8(22.2)*
74
3.50(5.3)717.6
5.90(8.9)730.0
8.70(13.1)744.0
11.80(17.7)759.0
29
17.8 (22)*
FXM 55™
17.3(25.9)*
86
4.1(6.1)720
6.7(10.1)733
10.3(15.4)751
14.1(21.1)770
36
20 (24.2)*
FXM 73™
20.8(31.2)*
104
4.9(7.4)725
8.2(12.3)741
12.3(18.5)762
16.5(24.7)782
61
29 (33.2)*
FXM 74™
27.3(40.9)*
135
6.6(9.8)732
11.1(16.5)755
16.2(24.3)780
22.1(33.1)7109
79
31.6 (35.8)*
FXM 75™
33.6(50.4)*
165
8(12.0)739
13.3(20.0)765
19.9(29.9)798
26.6(39.9)7131
97
36 (40.2)*
FXM 76™
39.7(59.5)*
195
9.4(14.1)746
15.7(23.5)777
23.6(35.3)7116
32.1(48.2)7158
115
40 (44.2)*
FXM 77™
45.6(68.4)*
225
11.0(16.6)755
17.8(26.8)788
29.0(43.5)7143
36.6(55.0)7181
133
43 (47.2)*
FXM 78™
51.1(76.6)*
255
12.6(19.0)763
20.7(31.0)7103
28.4(42.6)7142
42.7(63.9)7213
151
47 (51.2)*
(*) Values of the electro-ventilated motors In parenthesis.
(**) Motor sizes 5 and 7 can provide about 50% higher torque with their optional electro-ventilation
General characteristics
Balancing (whole key)
■ Standard: Class N
■ Optional: Class R
Mounting
■ Front flange
-B5-V1-V3
- Class F (150°C- 302°F)
Overall degree of protection
- Standard: IP64
■ Optional: IP54 with fan
Degree of protection of the axis
- Standard: IP64
■ Optional: IP65 with industrial seal
Fan
■ Optional on models FXM 5... and FXIV
7...
Brake
■ Optional on all models
Feedback
■ Sinusoidal encoder or resolver
10
