CNC 8055

Introduction

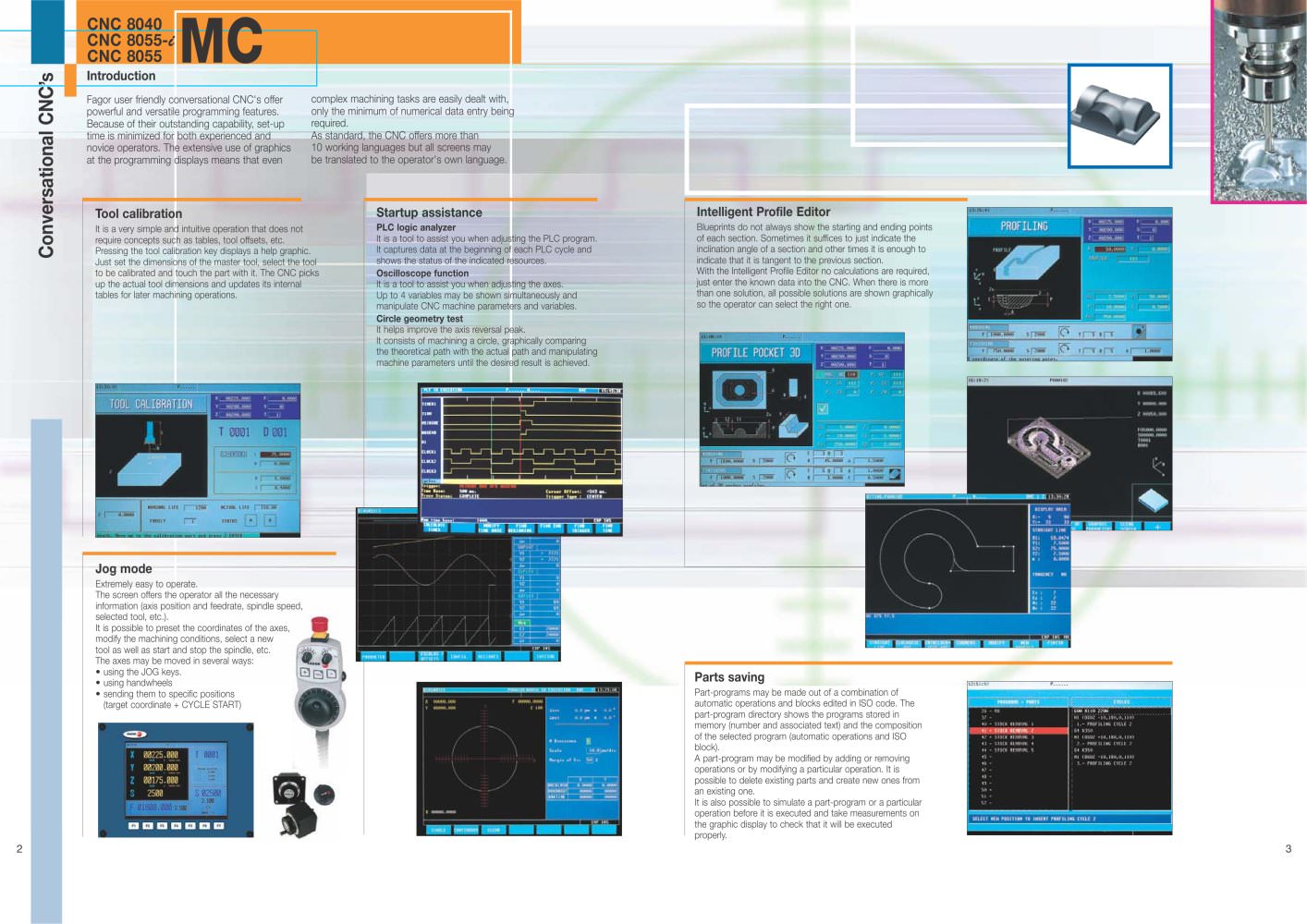

Fagor user friendly conversational CNC's offerpowerful and versatile programming features. Because of their outstanding capability, set-up time is minimized for both experienced and novice operators. The extensive use of graphics at the programming displays means that even complex machining tasks are easily dealt with,only the minimum of numerical data entry beingrequired. As standard, the CNC offers more than 10 working languages but all screens may be translated to the operator's own language.

MC

Tool calibration Startup assistance

It is a tool to assist you when adjusting the PLC program.It captures data at the beginning of each PLC cycle and shows the status of the indicated resources.

Intelligent Profile Editor

It is a very simple and intuitive operation that does notrequire concepts such as tables, tool offsets, etc.Pressing the tool calibration key displays a help graphic. Just set the dimensions of the master tool, select the tool to be calibrated and touch the part with it. The CNC picks up the actual tool dimensions and updates its internaltables for later machining operations. PLC logic analyzer Oscilloscope function Blueprints do not always show the starting and ending pointsof each section. Sometimes it suffices to just indicate theinclination angle of a section and other times it is enough to indicate that it is tangent to the previous section. With the Intelligent Profile Editor no calculations are required, just enter the known data into the CNC. When there is morethan one solution, all possible solutions are shown graphicallyso the operator can select the right one. It is a tool to assist you when adjusting the axes.Up to 4 variables may be shown simultaneously andmanipulate Cnc machine parameters and variables.
Conversational CNC’s Circle geometry test It helps improve the axis reversal peak.It consists of machining a circle, graphically comparingthe theoretical path with the actual path and manipulating machine parameters until the desired result is achieved.

Jog mode

Extremely easy to operate.The screen offers the operator all the necessaryinformation (axis position and feedrate, spindle speed,selected tool, etc.). It is possible to preset the coordinates of the axes,modify the machining conditions, select a newtool as well as start and stop the spindle, etc. The axes may be moved in several ways: • using the JOG keys. • using handwheels

Parts saving

• sending them to specific positions (target coordinate + CYCLE START) Part-programs may be made out of a combination of automatic operations and blocks edited in ISO code. The part-program directory shows the programs stored in memory (number and associated text) and the composition of the selected program (automatic operations and ISO block).A part-program may be modified by adding or removingoperations or by modifying a particular operation. It is possible to delete existing parts and create new ones from an existing one. It is also possible to simulate a part-program or a particular operation before it is executed and take measurements onthe graphic display to check that it will be executedproperly.
