2.4Connection, indicating and operating elementsThe interface industrial converter is delivered from the factory pre-installed in the VISY- Command switch cabinet. Prior to the commissioning procedure, only the LON integration must be made according to the following terminal connection plan. Node-ID Setting the user address (NODE-ID) and reset modeS1:Reset modeS2...S8:user address (Node-ID)

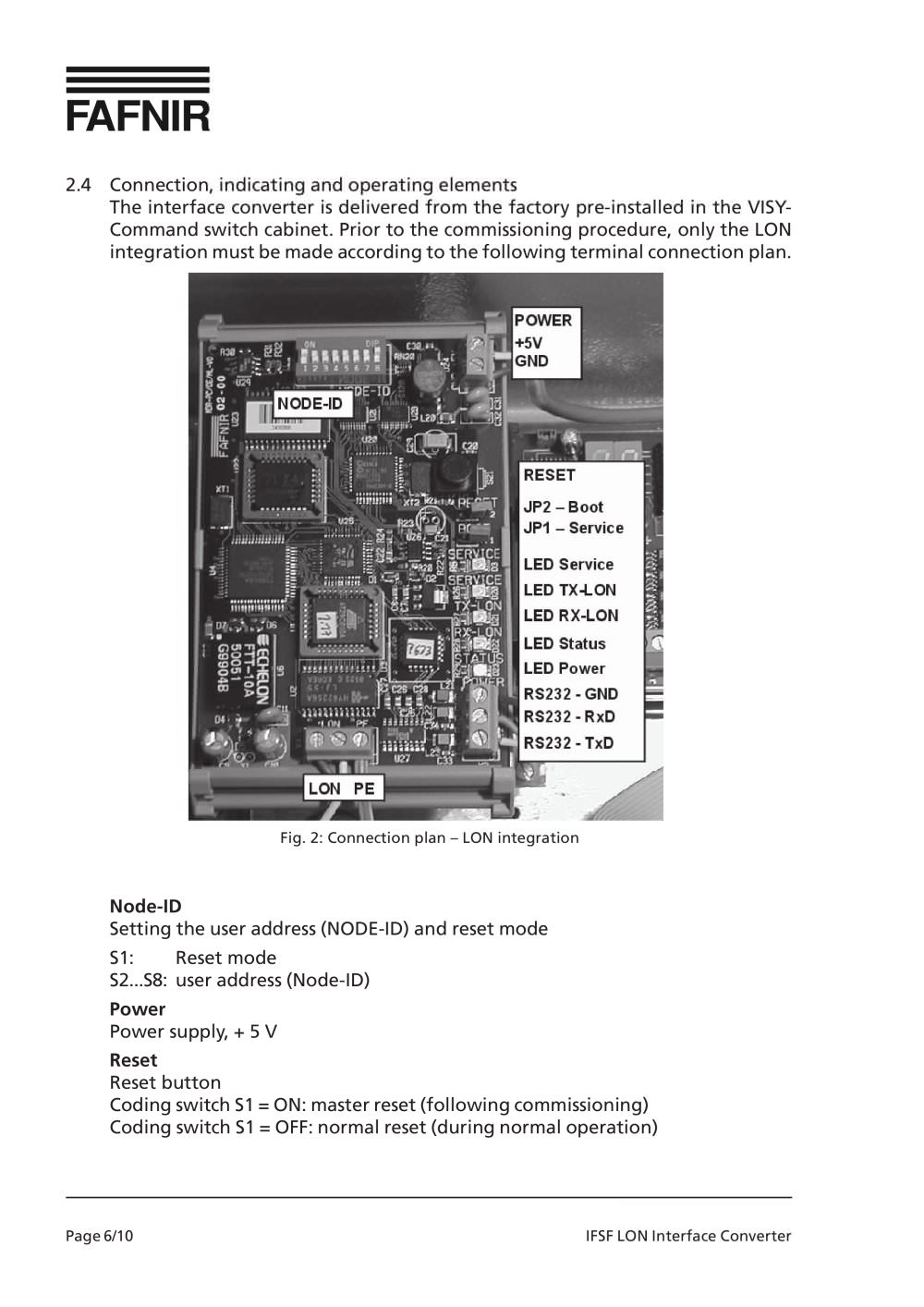

Fig. 2: Connection plan – LON integration Power Power supply, + 5 V Reset Reset button Coding switch S1 = ON: master reset (following commissioning) Coding switch S1 = OFF: normal reset (during normal operation)
Page 6/10 IFSF LON Interface Converter
