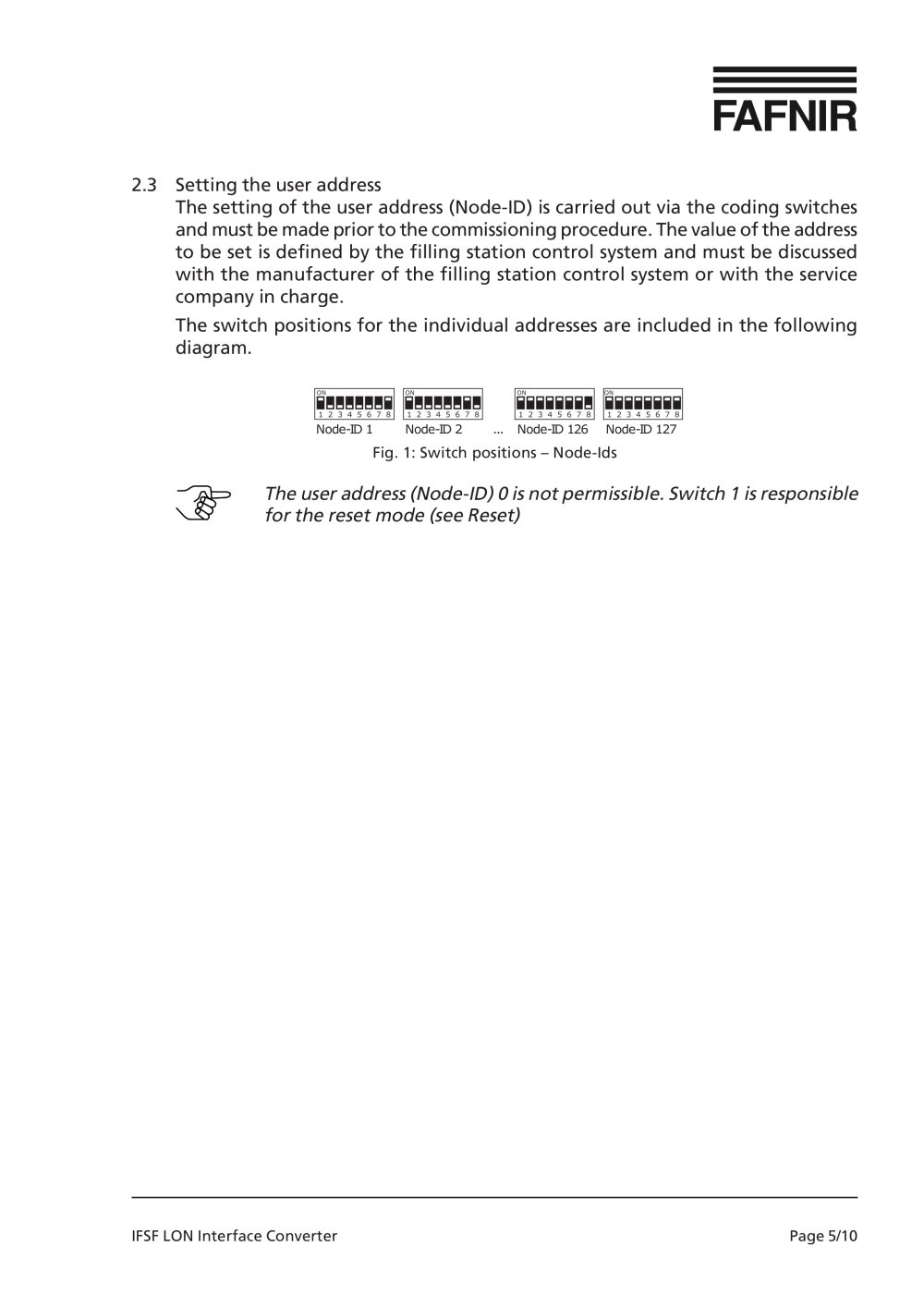

2.3Setting the user addressThe setting of the user address (Node-ID) is carried out via the coding switches
and must be made prior to the commissioning procedure. The value of the address
to be set is defined by the filling station control system and must be discussed
with the manufacturer of the filling station control system or with the service
company in charge.The switch positions for the individual addresses are included in the followingdiagram.
ON ON ON ON 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
Node-ID 1Node-ID 2 ...Node-ID 126Node-ID 127
Fig. 1: Switch positions – Node-Ids
The user address (Node-ID) 0 is not permissible. Switch 1 is responsiblefor the reset mode (see Reset)
