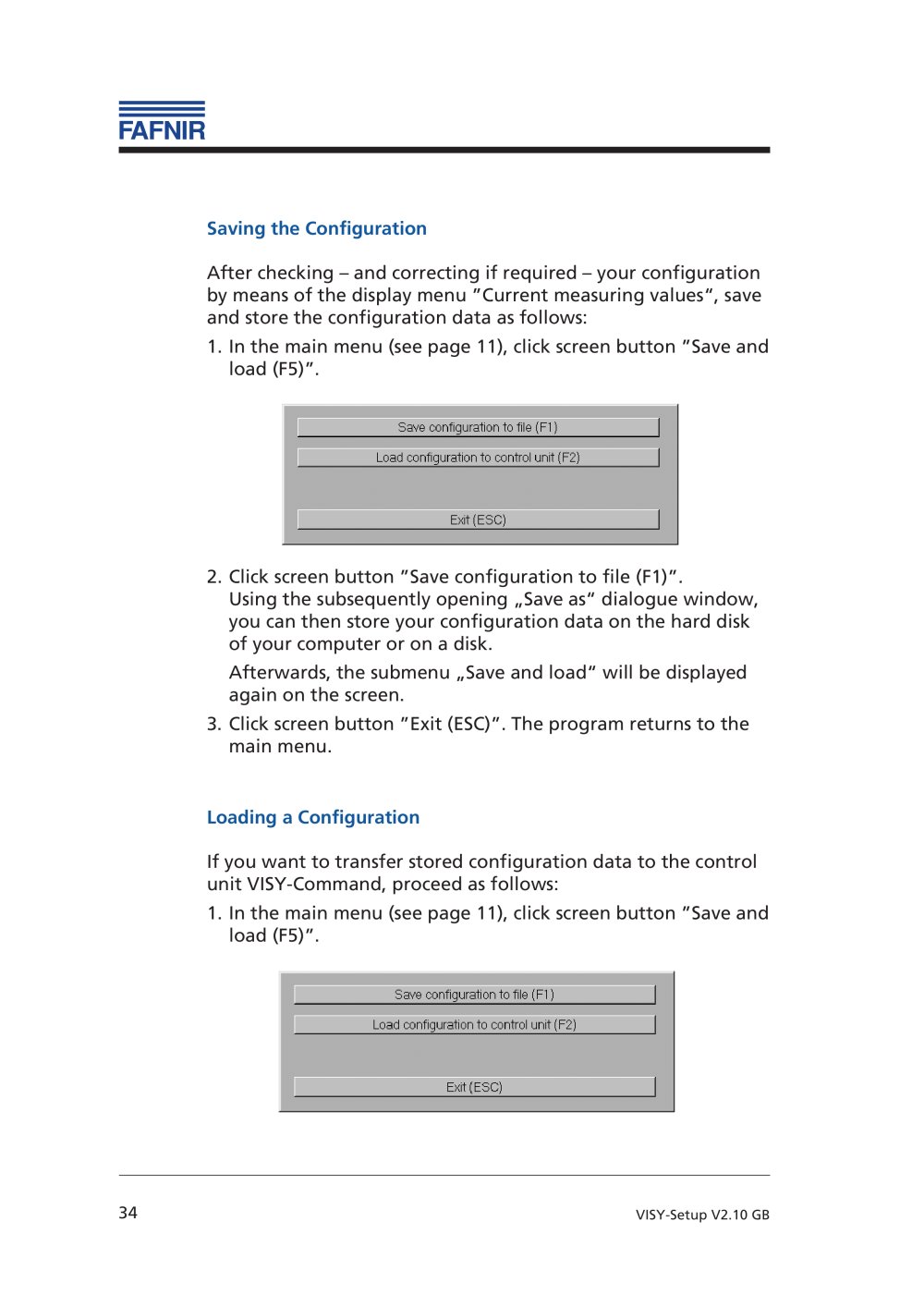

Saving the Configuration After checking – and correcting if required – your configurationby means of the display menu ”Current measuring values“, save and store the configuration data as follows:1.In the main menu (see page 11), click screen button ”Save andload (F5)”. 2.Click screen button ”Save configuration to file (F1)”.Using the subsequently opening „Save as“ dialogue window, you can then store your configuration data on the hard disk of your computer or on a disk.Afterwards, the submenu „Save and load“ will be displayedagain on the screen.3.Click screen button ”Exit (ESC)”. The program returns to themain menu. Loading a Configuration If you want to transfer stored configuration data to the controlunit VISY-Command, proceed as follows:1.In the main menu (see page 11), click screen button ”Save andload (F5)”.
34 VISY-Setup V2.10 GB
