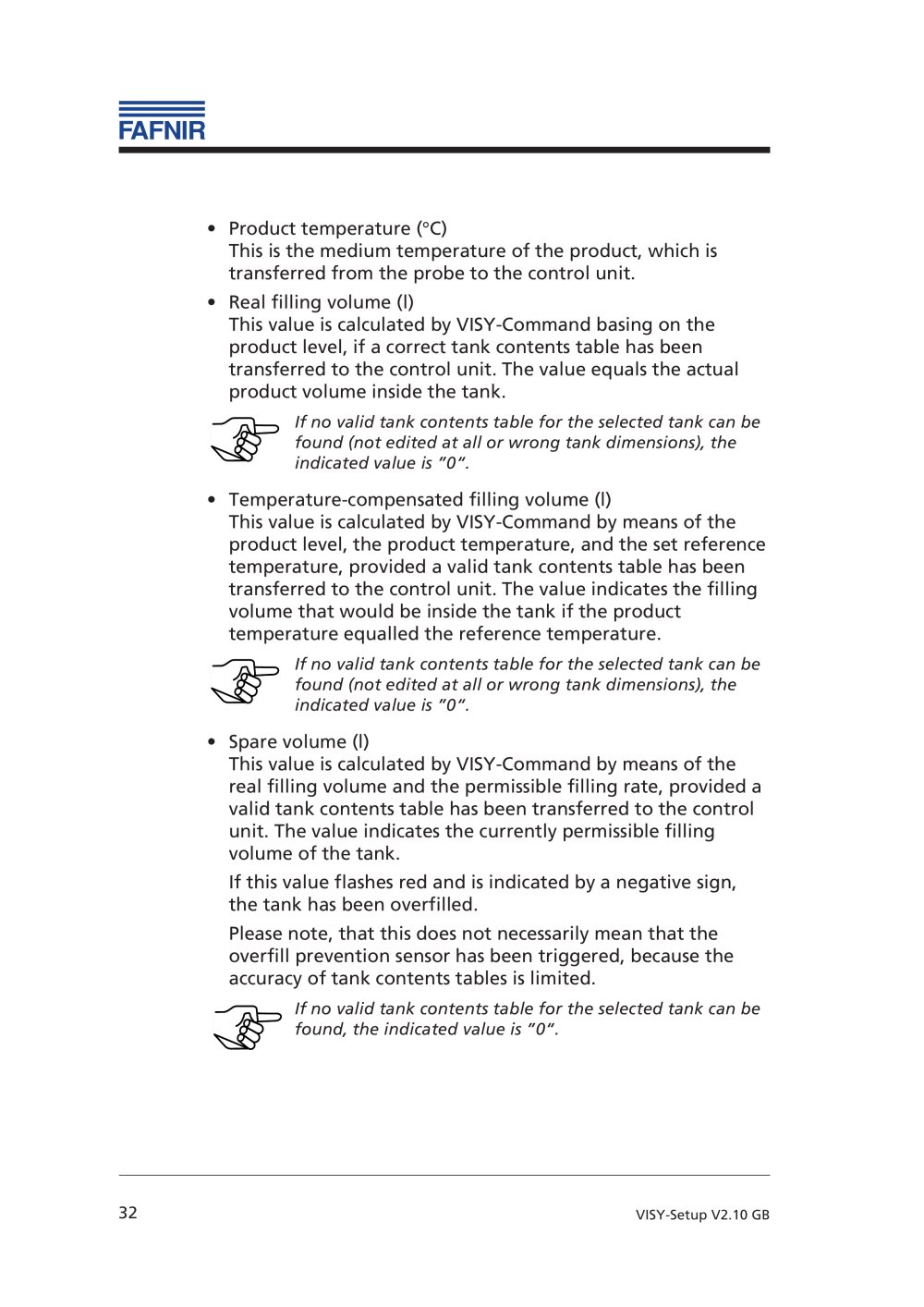

•Product temperature ( ° C)This is the medium temperature of the product, which is transferred from the probe to the control unit.•Real filling volume (l)This value is calculated by VISY-Command basing on the product level, if a correct tank contents table has been transferred to the control unit. The value equals the actual product volume inside the tank.
If no valid tank contents table for the selected tank can be found (not edited at all or wrong tank dimensions), the indicated value is ”0“. •Temperature-compensated filling volume (l)This value is calculated by VISY-Command by means of the product level, the product temperature, and the set reference temperature, provided a valid tank contents table has been transferred to the control unit. The value indicates the filling volume that would be inside the tank if the product temperature equalled the reference temperature.
If no valid tank contents table for the selected tank can be found (not edited at all or wrong tank dimensions), the indicated value is ”0“. •Spare volume (l)This value is calculated by VISY-Command by means of the real filling volume and the permissible filling rate, provided a valid tank contents table has been transferred to the control unit. The value indicates the currently permissible filling volume of the tank.If this value flashes red and is indicated by a negative sign,the tank has been overfilled.Please note, that this does not necessarily mean that theoverfill prevention sensor has been triggered, because the accuracy of tank contents tables is limited.
If no valid tank contents table for the selected tank can be found, the indicated value is ”0“. 32 VISY-Setup V2.10 GB
