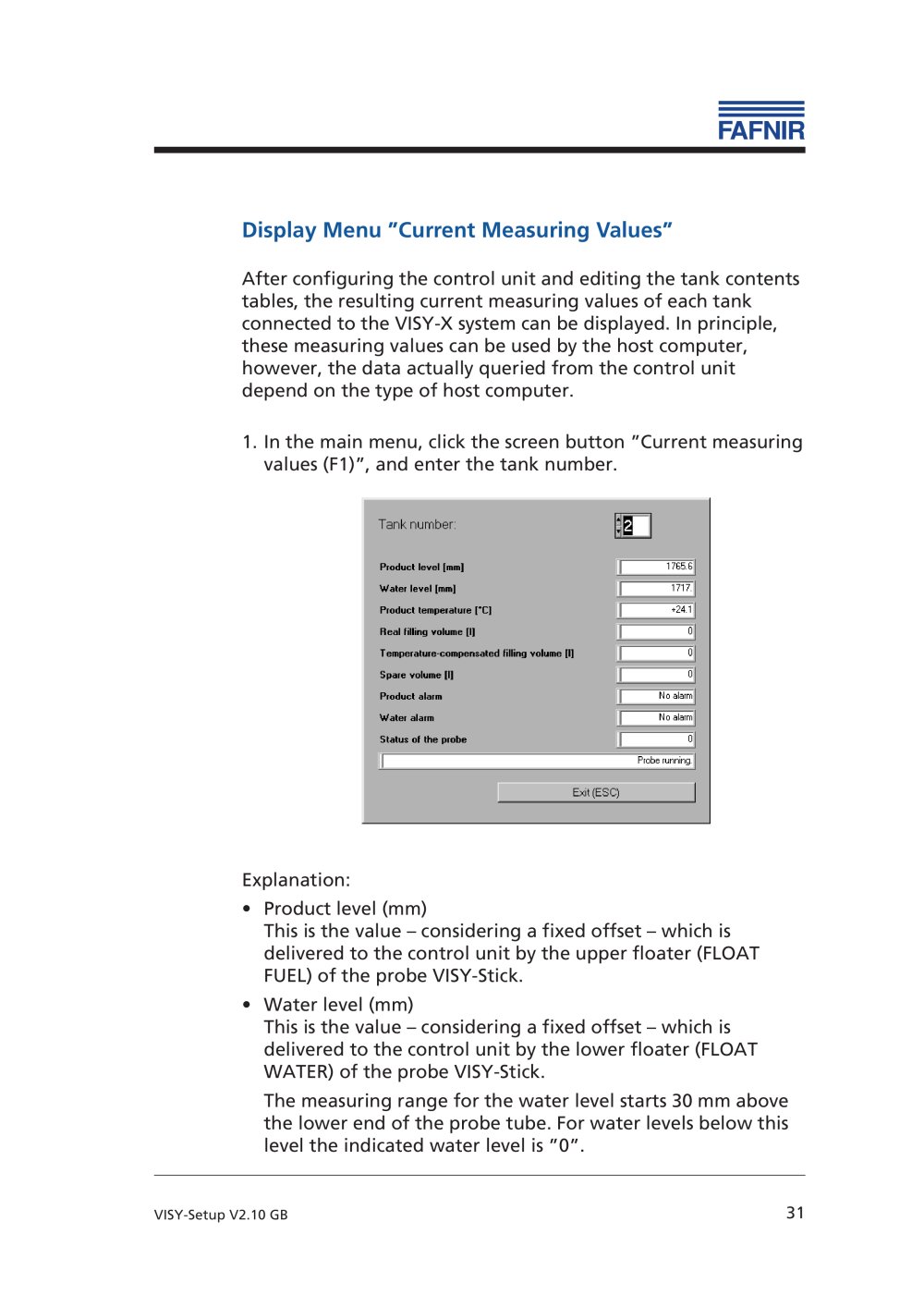

Display Menu ”Current Measuring Values”

After configuring the control unit and editing the tank contentstables, the resulting current measuring values of each tank connected to the VISY-X system can be displayed. In principle, these measuring values can be used by the host computer, however, the data actually queried from the control unit depend on the type of host computer.1.In the main menu, click the screen button ”Current measuringvalues (F1)”, and enter the tank number. Explanation:•Product level (mm)This is the value – considering a fixed offset – which is delivered to the control unit by the upper floater (FLOAT FUEL) of the probe VISY-Stick.•Water level (mm)This is the value – considering a fixed offset – which isdelivered to the control unit by the lower floater (FLOAT WATER) of the probe VISY-Stick.The measuring range for the water level starts 30 mm abovethe lower end of the probe tube. For water levels below this level the indicated water level is ”0”.
