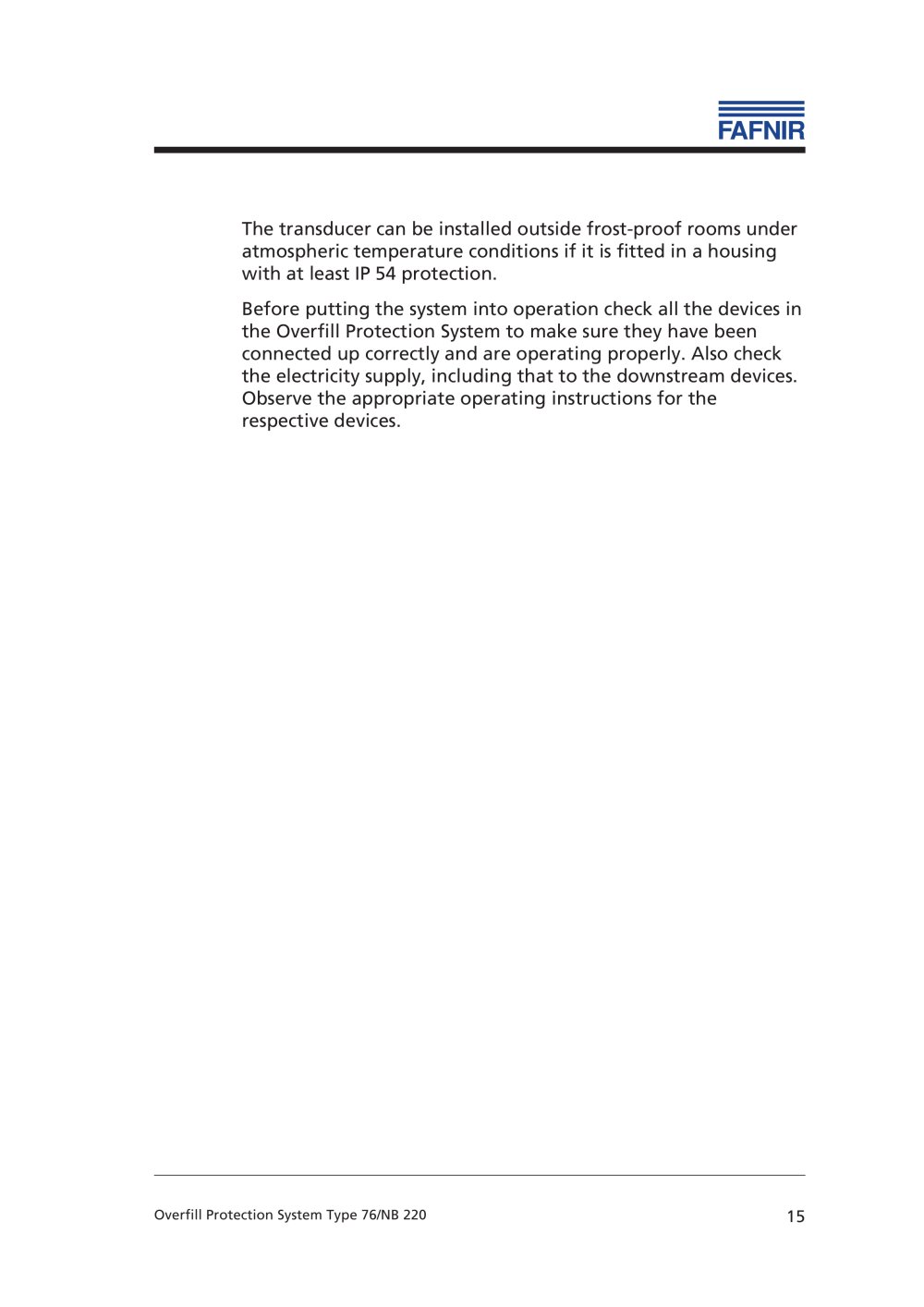

The transducer can be installed outside frost-proof rooms underatmospheric temperature conditions if it is fitted in a housing with at least IP 54 protection.Before putting the system into operation check all the devices inthe Overfill Protection System to make sure they have been connected up correctly and are operating properly. Also check the electricity supply, including that to the downstream devices. Observe the appropriate operating instructions for the respective devices.

Overfill Protection System Type 76/NB 220 15
